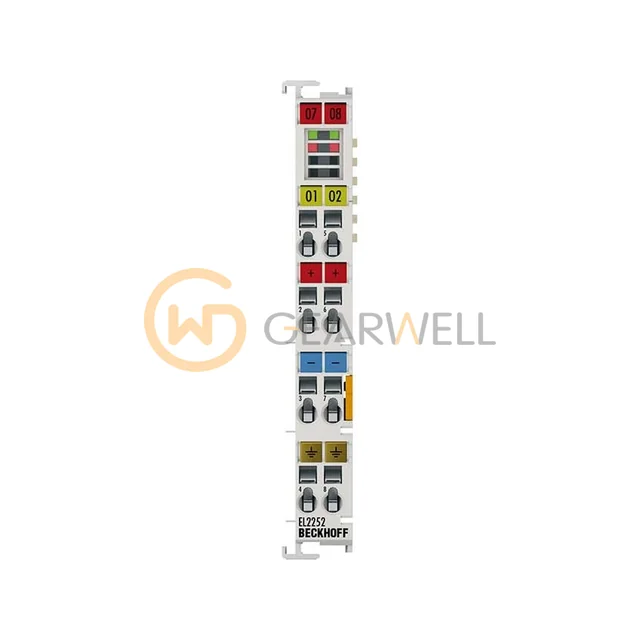

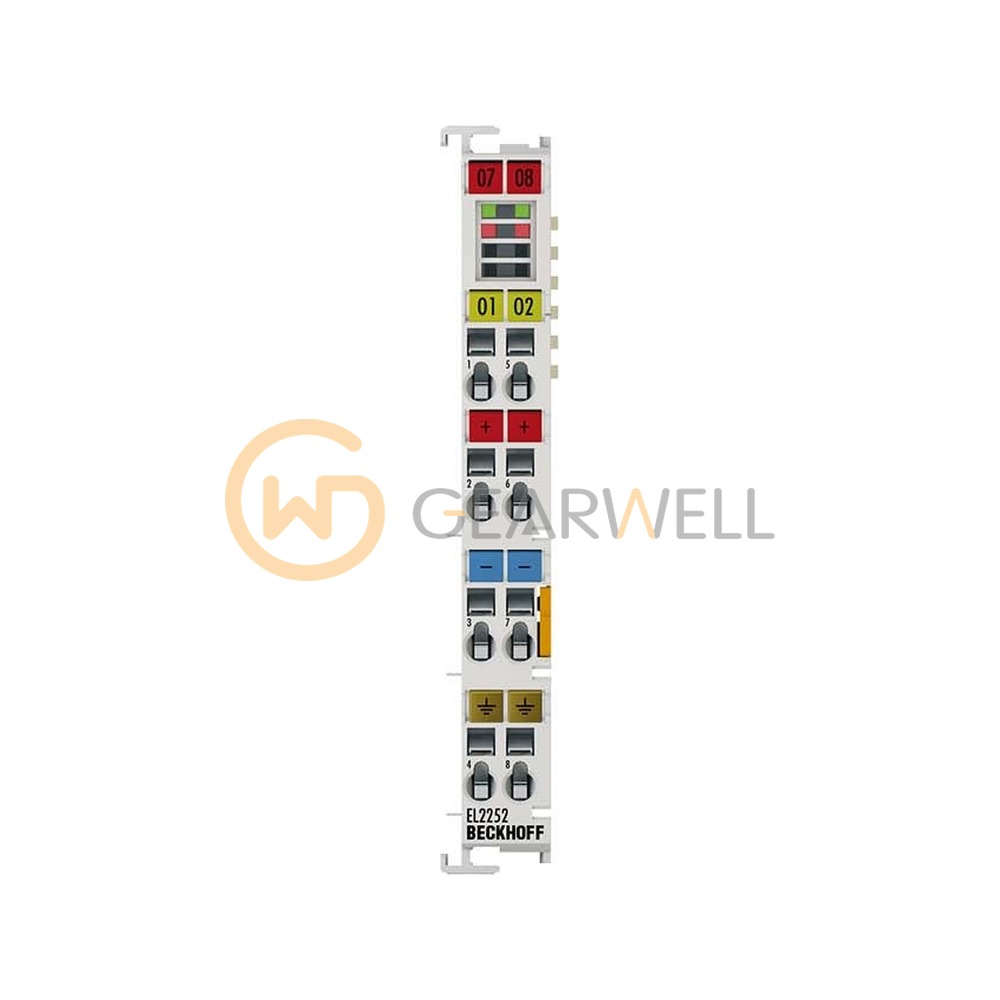

BECKHOFF EL2252 EtherCAT 2-Channel Digital Output Terminal
- Brand
- BECKHOFF
- Model
- EL2252
- GEARWELL SKU
- GWP-000007981
- Category
- PLCs & I/O
Key specifications
- Load type
- resistive, inductive, lamp load
- Nominal voltage
- 24 V DC (-15%/+20%)
- Number of outputs
- 2
- Timestamp accuracy
- 10 ns between the channels
- Timestamp resolution
- 1 ns
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
Beckhoff EL2252 is a 2-channel digital output terminal for EtherCAT that switches 24 V DC outputs at a timestamped time, with 1 ns resolution and 10 ns accuracy between channels. Push-pull outputs deliver up to 0.5 A per channel and can be set to high-resistance mode. Check the full order number, including any suffix, on the terminal when requesting a quote.
Technical reference
| Product name | BECKHOFF EL2252 EtherCAT 2-Channel Digital Output Terminal |
|---|---|
| Brand | BECKHOFF |
| Model | EL2252 |
| Category | PLCs & I/O |
| Load type | resistive, inductive, lamp load |
| Nominal voltage | 24 V DC (-15%/+20%) |
| Number of outputs | 2 |
| Timestamp accuracy | 10 ns between the channels |
| Timestamp resolution | 1 ns |
| Connection technology | 4-wire |
| Distributed clock accuracy | << 1 µs |
| Output delay through 24 V power section | typ. < 1 µs |
