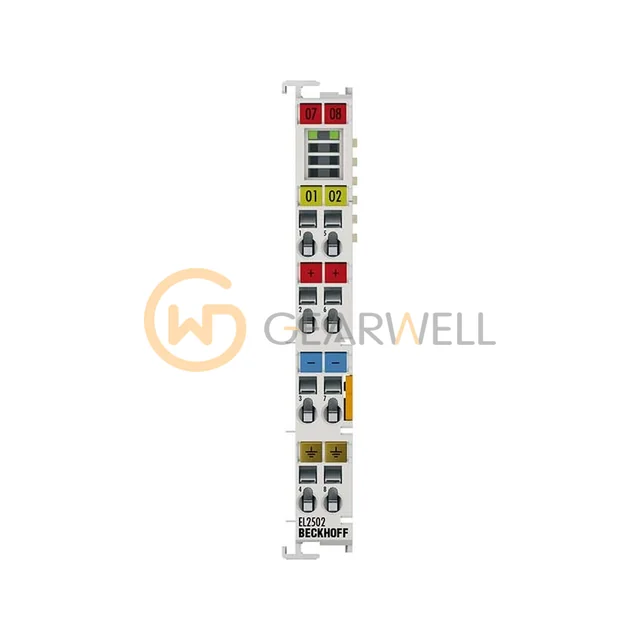

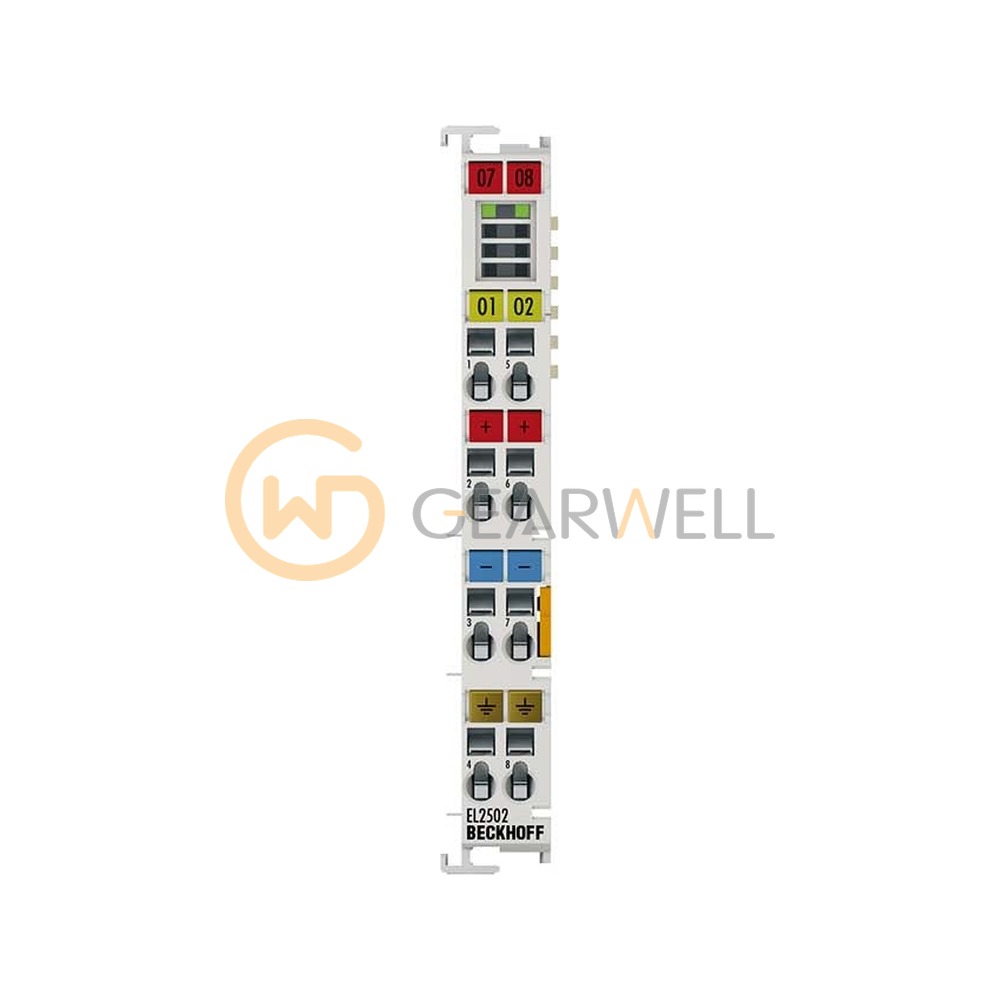

BECKHOFF EL2502 EtherCAT 2-Channel PWM Output Terminal
- Brand
- BECKHOFF
- Model
- EL2502
- GEARWELL SKU
- GWP-000007983
- Category
- PLCs & I/O
Key specifications
- Load type
- resistive, inductive, lamp load
- Duty cycle
- 0…100% (pulse duration T ON > 750 ns, pause duration T OFF > 500 ns)
- Base frequency
- 1 Hz…125 kHz, 250 Hz default
- Nominal voltage
- 24 V DC (-15%/+20%)
- Number of outputs
- 2
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
Beckhoff EL2502 is a 2-channel PWM output terminal for EtherCAT, with 24 V DC push-pull outputs of up to 0.5 A per channel. The base frequency is adjustable from 1 Hz to 125 kHz separately for each channel, with 0 to 100 % duty cycle. Check the full order number, including any suffix, on the terminal when requesting a quote.
Technical reference
| Product name | BECKHOFF EL2502 EtherCAT 2-Channel PWM Output Terminal |
|---|---|
| Brand | BECKHOFF |
| Model | EL2502 |
| Category | PLCs & I/O |
| Load type | resistive, inductive, lamp load |
| Duty cycle | 0…100% (pulse duration T ON > 750 ns, pause duration T OFF > 500 ns) |
| Base frequency | 1 Hz…125 kHz, 250 Hz default |
| Nominal voltage | 24 V DC (-15%/+20%) |
| Number of outputs | 2 |
| Max. output current | 0.5 A (short-circuit proof) per channel |
| Connection technology | PWM output, push-pull outputs |
| Short-circuit current | typ. < 1.5 A |
