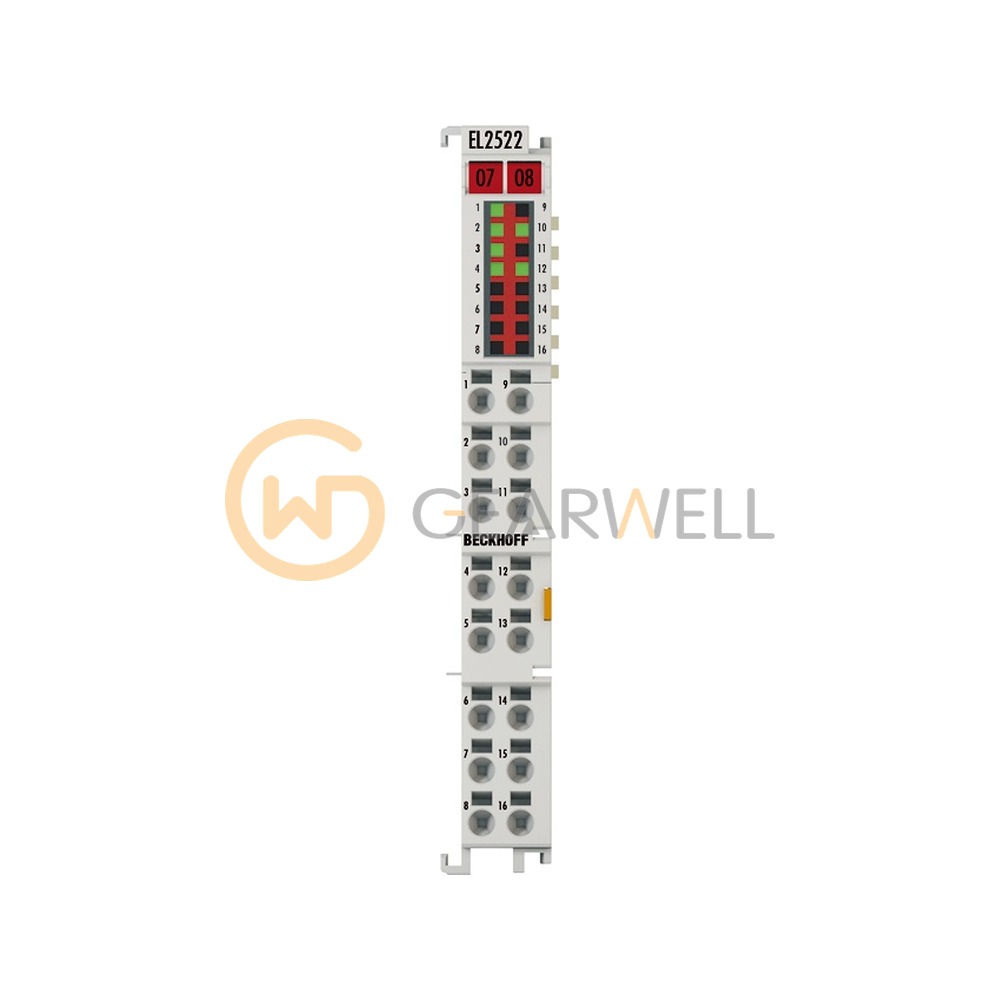

BECKHOFF EL2522 EtherCAT 2-Channel Pulse Train Output Terminal
- Brand
- BECKHOFF
- Model
- EL2522
- GEARWELL SKU
- GWP-000007984
- Category
- PLCs & I/O
Key specifications
- Resolution
- 16 bit (incl. sign, scaled via the set frequency range)
- Power supply
- via the E-bus
- Base frequency
- 0…4 MHz, 50 kHz default
- Number of outputs
- 2 channel A/B, 1 channel A/B/C (4 differential outputs)
- Connection technology
- pulse train (frequency output)
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
Beckhoff EL2522 is a pulse train output terminal for EtherCAT with RS422 differential outputs, configurable as 2 channels A/B or 1 channel A/B/C, for frequencies up to 4 MHz. It can also simulate an incremental encoder and is powered from the E-bus. Check the full order number, including any suffix, on the terminal when requesting a quote.
Technical reference
| Product name | BECKHOFF EL2522 EtherCAT 2-Channel Pulse Train Output Terminal |
|---|---|
| Brand | BECKHOFF |
| Model | EL2522 |
| Category | PLCs & I/O |
| Resolution | 16 bit (incl. sign, scaled via the set frequency range) |
| Power supply | via the E-bus |
| Base frequency | 0…4 MHz, 50 kHz default |
| Number of outputs | 2 channel A/B, 1 channel A/B/C (4 differential outputs) |
| Connection technology | pulse train (frequency output) |
| Short-circuit current | short-circuit proof |
| Current consumption E-bus | typ. 120 mA |
| Current consumption power contacts | typ. 50 mA (load-dependent) |
