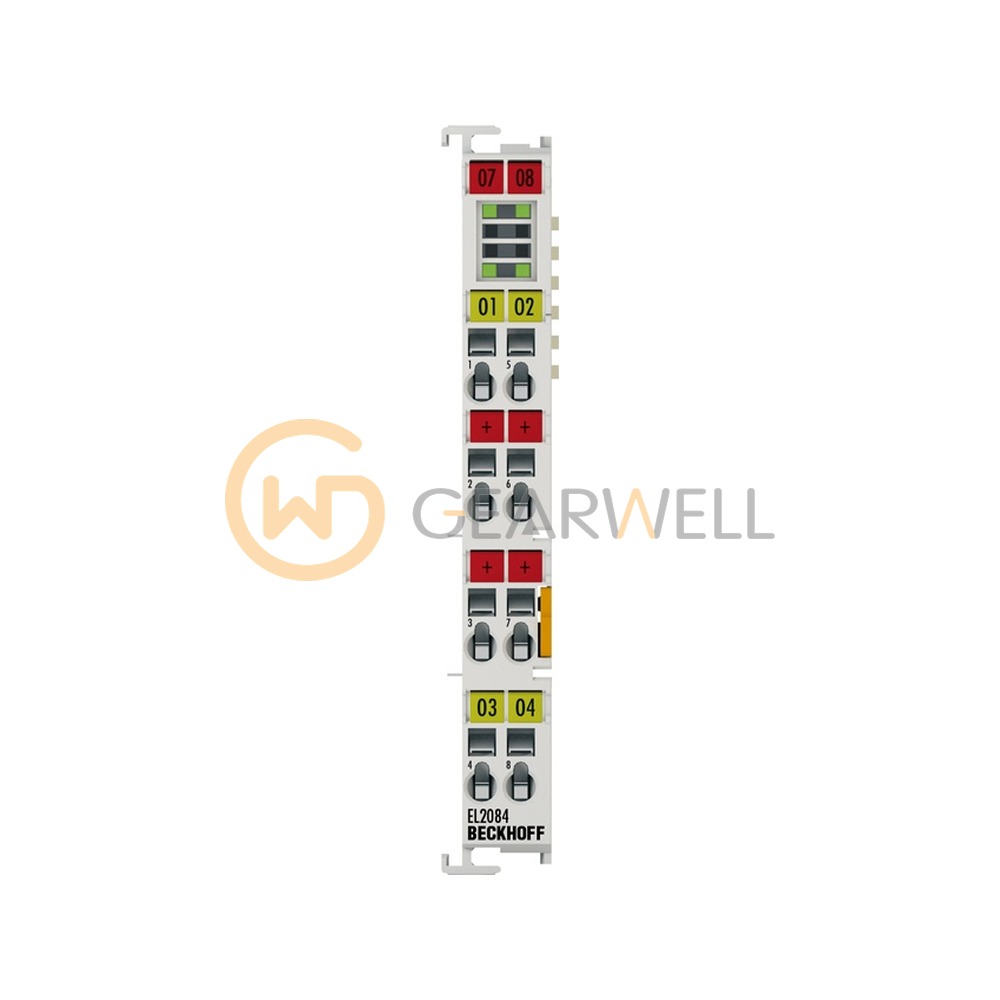

BECKHOFF EL2084 EtherCAT 4-Channel Digital Output Terminal
- Brand
- BECKHOFF
- Model
- EL2084
- GEARWELL SKU
- GWP-000007978
- Category
- PLCs & I/O
Key specifications
- Load type
- resistive, inductive, lamp load
- Nominal voltage
- 24 V DC (-15%/+20%)
- Number of outputs
- 4
- Max. output current
- 0.5 A (short-circuit proof) per channel
- Switching-off energy
- < 100 mJ/channel
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
Beckhoff EL2084 is a 4-channel digital output terminal for EtherCAT with ground-switching outputs for 24 V DC loads up to 0.5 A per channel. It uses 2-wire connection and is rated for 0 to 55 °C. Check the full order number, including any suffix, on the terminal when requesting a quote.
Technical reference
| Product name | BECKHOFF EL2084 EtherCAT 4-Channel Digital Output Terminal |
|---|---|
| Brand | BECKHOFF |
| Model | EL2084 |
| Category | PLCs & I/O |
| Load type | resistive, inductive, lamp load |
| Nominal voltage | 24 V DC (-15%/+20%) |
| Number of outputs | 4 |
| Max. output current | 0.5 A (short-circuit proof) per channel |
| Switching-off energy | < 100 mJ/channel |
| Connection technology | 2-wire |
| Short-circuit current | typ. < 7 A |
| Reverse polarity protection | yes |
