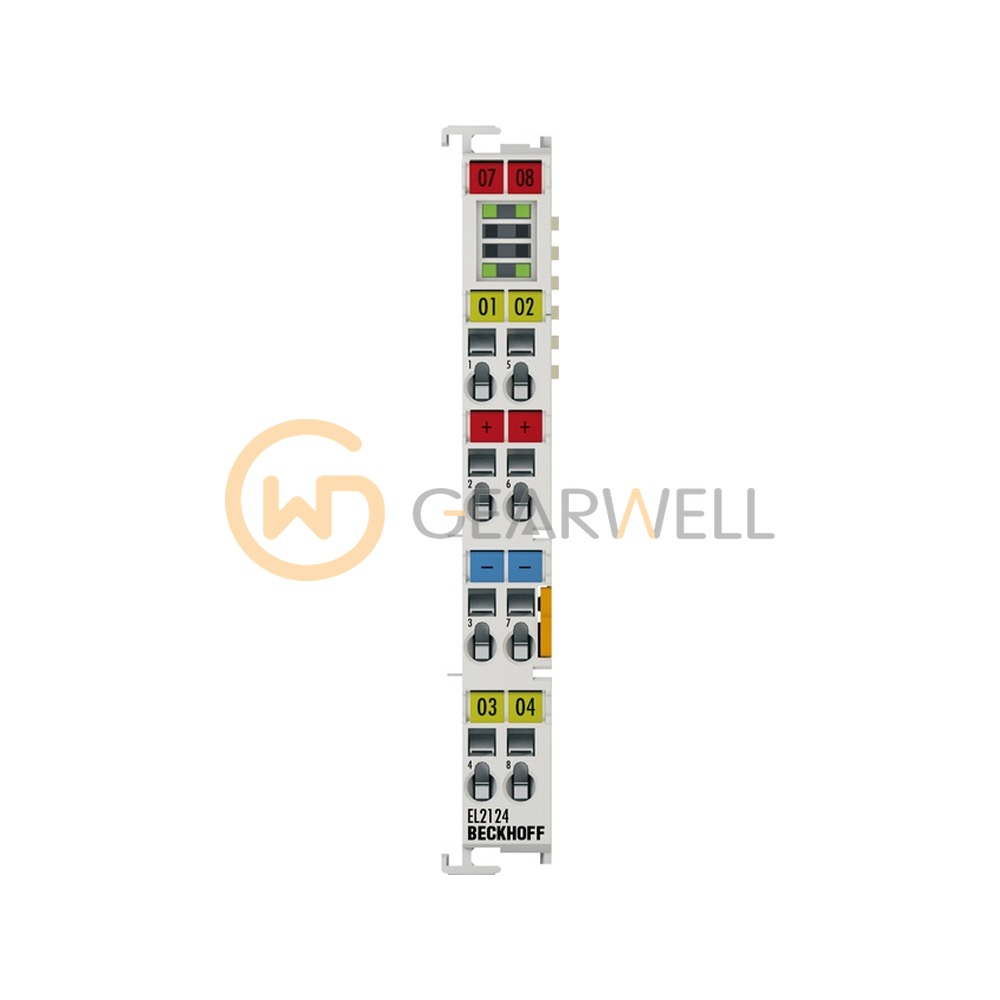

BECKHOFF EL2124 EtherCAT 4-Channel Digital Output Terminal
- Brand
- BECKHOFF
- Model
- EL2124
- GEARWELL SKU
- GWP-000007979
- Category
- PLCs & I/O
Key specifications
- Load type
- resistive, lamp load
- Nominal voltage
- 5 V DC
- Switching times
- typ. T ON : OFF : < 1 µs
- Number of outputs
- 4
- Max. output current
- ±20 mA (short-circuit proof) per channel, type CMOS output/push-pull
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
Beckhoff EL2124 is a 4-channel digital output terminal for EtherCAT with fast 5 V DC CMOS (push-pull) outputs of ±20 mA per channel, switching in under 1 µs. It is used to drive 5 V logic inputs and draws typically 130 mA from the E-bus. Check the full order number, including any suffix, on the terminal when requesting a quote.
Technical reference
| Product name | BECKHOFF EL2124 EtherCAT 4-Channel Digital Output Terminal |
|---|---|
| Brand | BECKHOFF |
| Model | EL2124 |
| Category | PLCs & I/O |
| Load type | resistive, lamp load |
| Nominal voltage | 5 V DC |
| Switching times | typ. T ON : OFF : < 1 µs |
| Number of outputs | 4 |
| Max. output current | ±20 mA (short-circuit proof) per channel, type CMOS output/push-pull |
| Connection technology | 2-/3-wire |
| Current consumption E-bus | typ. 130 mA |
| Current consumption power contacts | typ. 12 mA + load |
