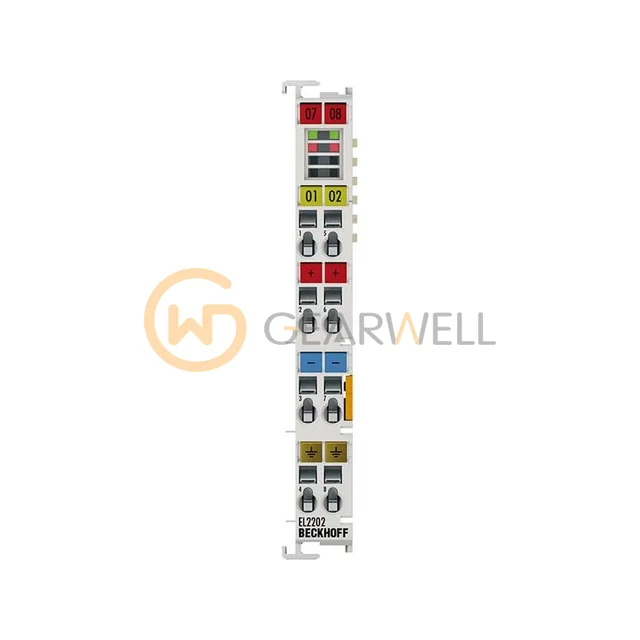

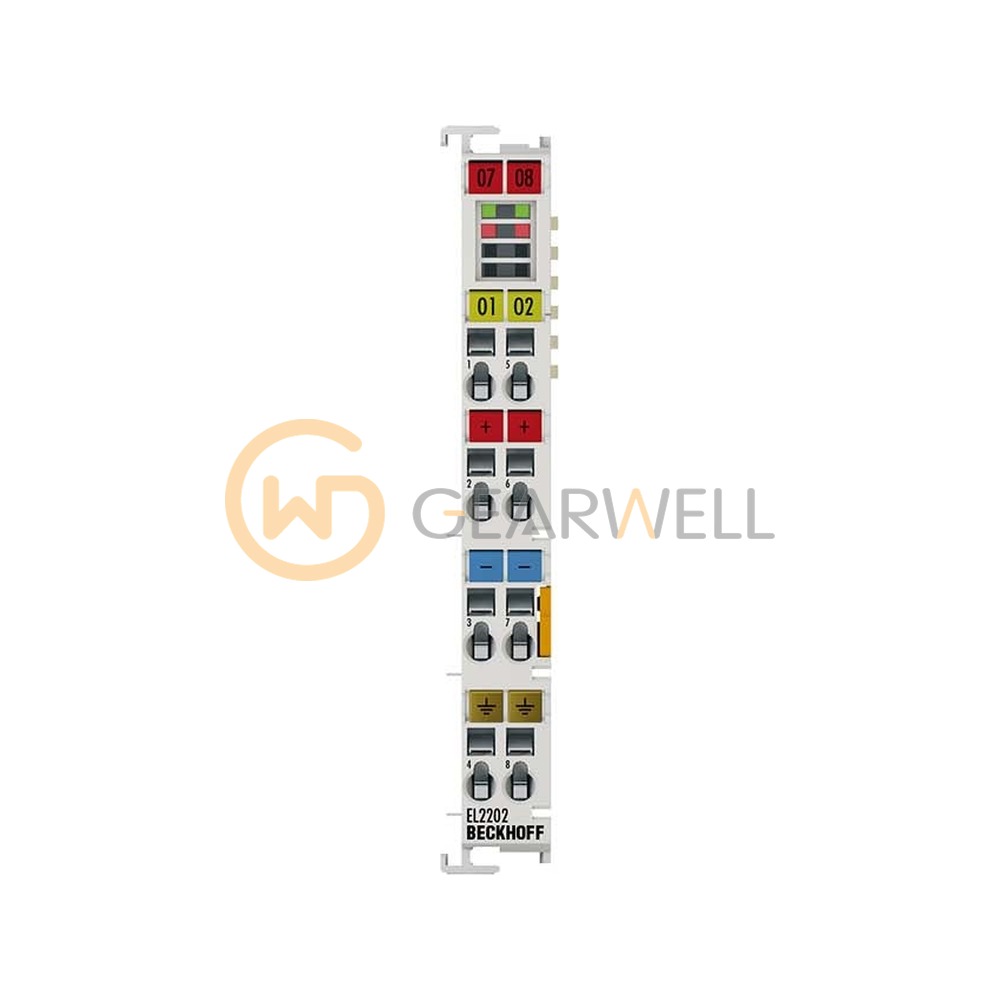

BECKHOFF EL2202 EtherCAT 2-Channel Digital Output Terminal
- Brand
- BECKHOFF
- Model
- EL2202
- GEARWELL SKU
- GWP-000007980
- Category
- PLCs & I/O
Key specifications
- Load type
- resistive, inductive, lamp load
- Output stage
- push-pull, high-resistance
- Nominal voltage
- 24 V DC (-15%/+20%)
- Number of outputs
- 2
- Max. output current
- 0.5 A (short-circuit proof in push operation) per channel
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
Beckhoff EL2202 is a 2-channel fast digital output terminal for EtherCAT with push-pull 24 V DC outputs of up to 0.5 A per channel, switching in under 1 µs. Outputs can be set to high-resistance mode, and the terminal can be converted to the distributed-clocks version EL2202-0100. Check the full order number, including any suffix, on the terminal when requesting a quote.
Technical reference
| Product name | BECKHOFF EL2202 EtherCAT 2-Channel Digital Output Terminal |
|---|---|
| Brand | BECKHOFF |
| Model | EL2202 |
| Category | PLCs & I/O |
| Load type | resistive, inductive, lamp load |
| Output stage | push-pull, high-resistance |
| Nominal voltage | 24 V DC (-15%/+20%) |
| Number of outputs | 2 |
| Max. output current | 0.5 A (short-circuit proof in push operation) per channel |
| Connection technology | 4-wire |
| Short-circuit current | typ. 4 A/150 µs |
| Reverse polarity protection | yes |
