BECKHOFF EL2535 EtherCAT 2-Channel PWM Output Terminal
- Brand
- BECKHOFF
- Model
- EL2535
- GEARWELL SKU
- GWP-000007132
- Category
- PLCs & I/O
Key specifications
- Load type
- inductive > 1 mH
- Duty cycle
- 0…100% (current-controlled)
- Nominal voltage
- 24 V DC (-15%/+20%)
- Number of outputs
- 2
- Max. output current
- ±1 A per channel
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview

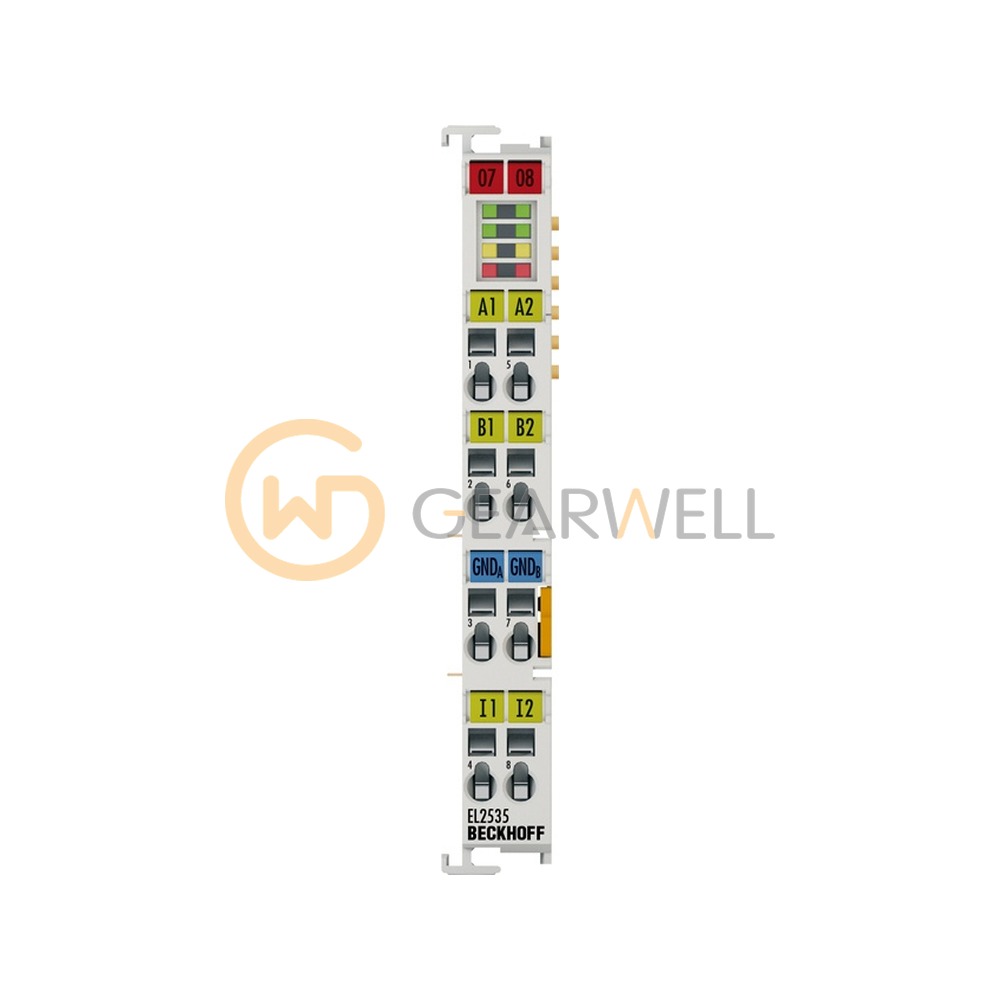

Beckhoff EL2535 is a 2-channel current-controlled PWM output terminal for EtherCAT, for proportional valves and other inductive loads, with ±1 A per channel at a 30 kHz PWM clock. It also has two digital 24 V inputs and is rated for 0 to 55 °C. Check the full order number, including any suffix, on the terminal when requesting a quote.
Technical reference
| Product name | BECKHOFF EL2535 EtherCAT 2-Channel PWM Output Terminal |
|---|---|
| Brand | BECKHOFF |
| Model | EL2535 |
| Category | PLCs & I/O |
| Load type | inductive > 1 mH |
| Duty cycle | 0…100% (current-controlled) |
| Nominal voltage | 24 V DC (-15%/+20%) |
| Number of outputs | 2 |
| Max. output current | ±1 A per channel |
| PWM clock frequency | 30 kHz |
| Connection technology | PWM output, push-pull outputs |
| Short-circuit current | typ. < 2 A |
