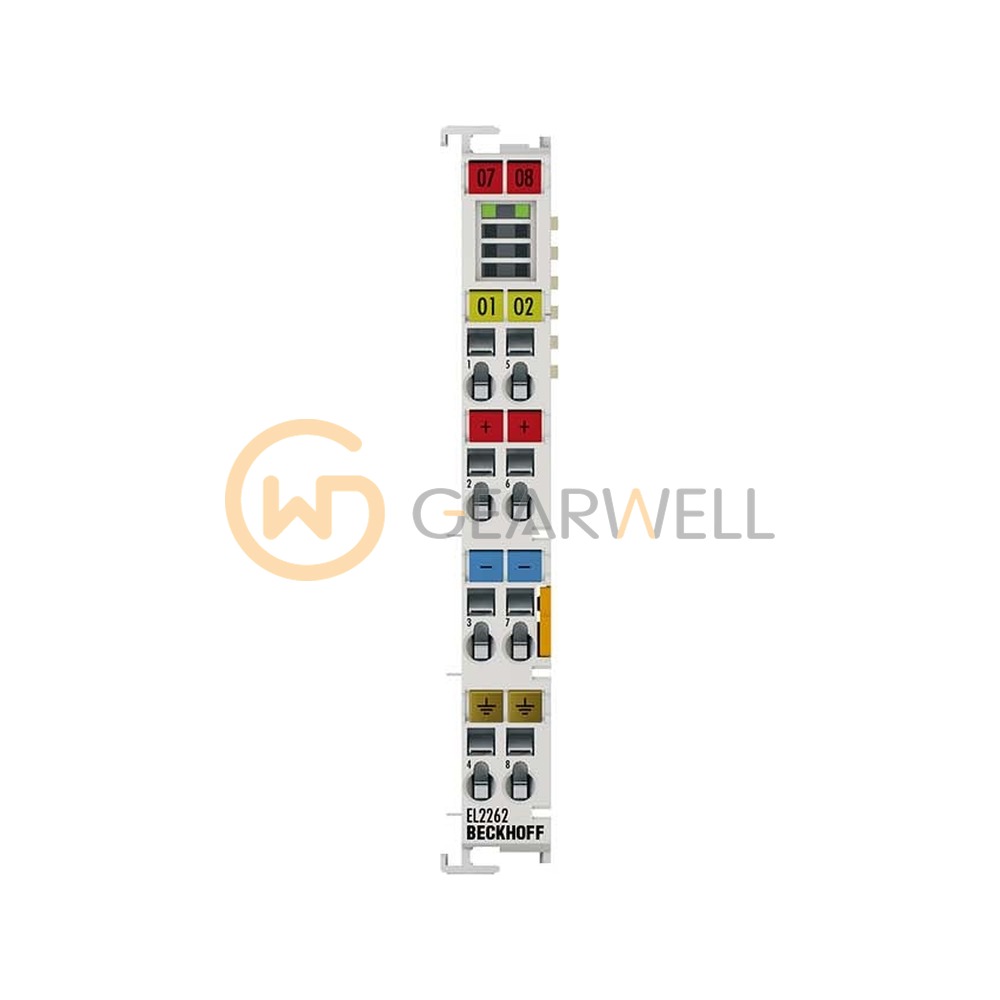

BECKHOFF EL2262 EtherCAT 2-Channel Digital Output Terminal
- Brand
- BECKHOFF
- Model
- EL2262
- GEARWELL SKU
- GWP-000007982
- Category
- PLCs & I/O
Key specifications
- Load type
- resistive, inductive, lamp load
- Nominal voltage
- 24 V DC (-15%/+20%)
- Number of outputs
- 2
- Max. output current
- 0.5 A (short-circuit proof in push operation) per channel
- Timestamp accuracy
- 10 ns between the channels
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
Beckhoff EL2262 is a 2-channel digital output terminal for EtherCAT with oversampling: each 24 V DC output can be updated 1 to 1,000 times per bus cycle, up to 1 Msample/s. Push-pull outputs deliver up to 0.5 A per channel. Check the full order number, including any suffix, on the terminal when requesting a quote.
Technical reference
| Product name | BECKHOFF EL2262 EtherCAT 2-Channel Digital Output Terminal |
|---|---|
| Brand | BECKHOFF |
| Model | EL2262 |
| Category | PLCs & I/O |
| Load type | resistive, inductive, lamp load |
| Nominal voltage | 24 V DC (-15%/+20%) |
| Number of outputs | 2 |
| Max. output current | 0.5 A (short-circuit proof in push operation) per channel |
| Timestamp accuracy | 10 ns between the channels |
| Oversampling factor | n = integer multiple of the cycle time, 1…1000 |
| Connection technology | 4-wire |
| Distributed clock accuracy | << 1 µs |
