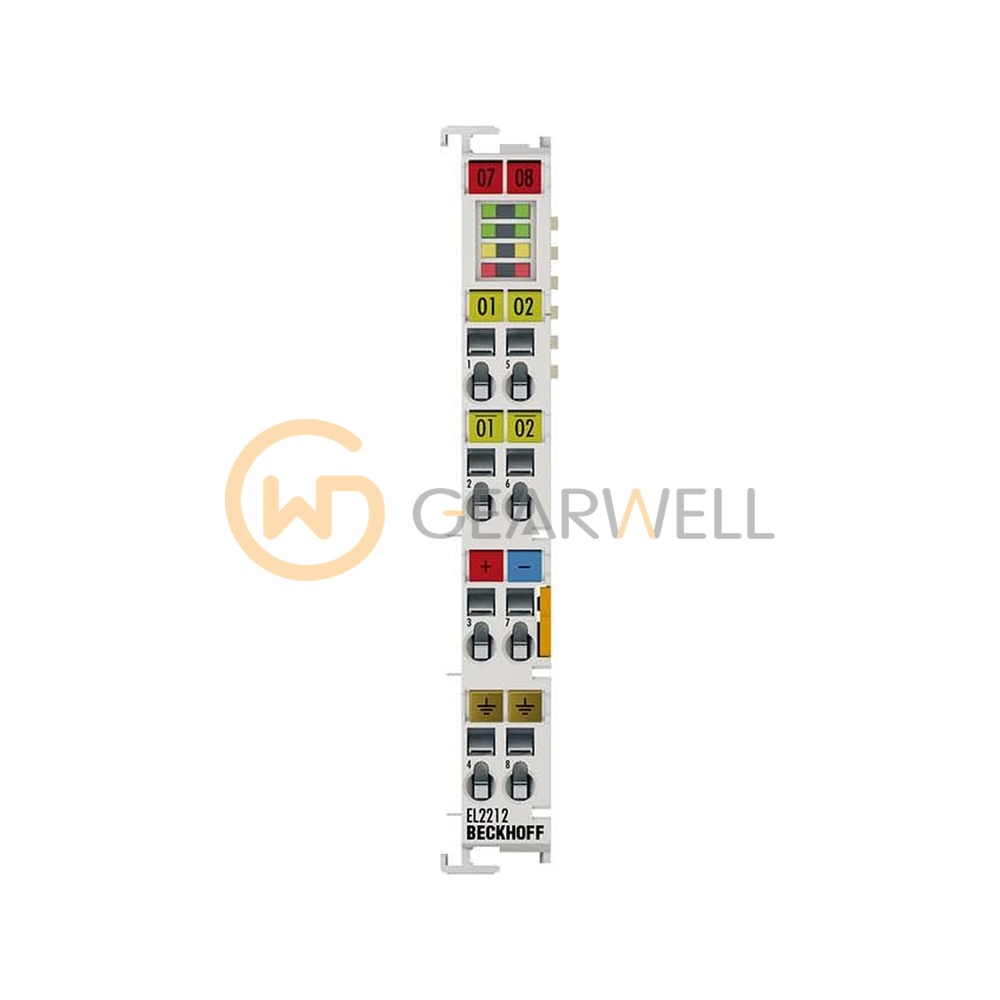

BECKHOFF EL2212 EtherCAT 2-Channel Digital Output Terminal
- Brand
- BECKHOFF
- Model
- EL2212
- GEARWELL SKU
- GWP-000007131
- Category
- PLCs & I/O
Key specifications
- Load type
- inductive > 1 mH
- Nominal voltage
- 24…72 V DC (-15%/+0%)
- Number of outputs
- 2
- Max. output current
- peak current: max. 10 A per channel, holding current: 0.2…2.5 A per channel
- Timestamp accuracy
- 10 ns between the channels
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
Beckhoff EL2212 is a 2-channel digital output terminal for EtherCAT for fast switching of inductive loads such as valves or relays at 24 to 72 V DC. Each channel delivers up to 10 A peak and a controlled holding current of 0.2 to 2.5 A, with multi-timestamp switching. Check the full order number, including any suffix, on the terminal when requesting a quote.
Technical reference
| Product name | BECKHOFF EL2212 EtherCAT 2-Channel Digital Output Terminal |
|---|---|
| Brand | BECKHOFF |
| Model | EL2212 |
| Category | PLCs & I/O |
| Load type | inductive > 1 mH |
| Nominal voltage | 24…72 V DC (-15%/+0%) |
| Number of outputs | 2 |
| Max. output current | peak current: max. 10 A per channel, holding current: 0.2…2.5 A per channel |
| Timestamp accuracy | 10 ns between the channels |
| Timestamp resolution | 1 ns |
| Connection technology | 4-wire |
| Distributed clock accuracy | << 1 µs |
