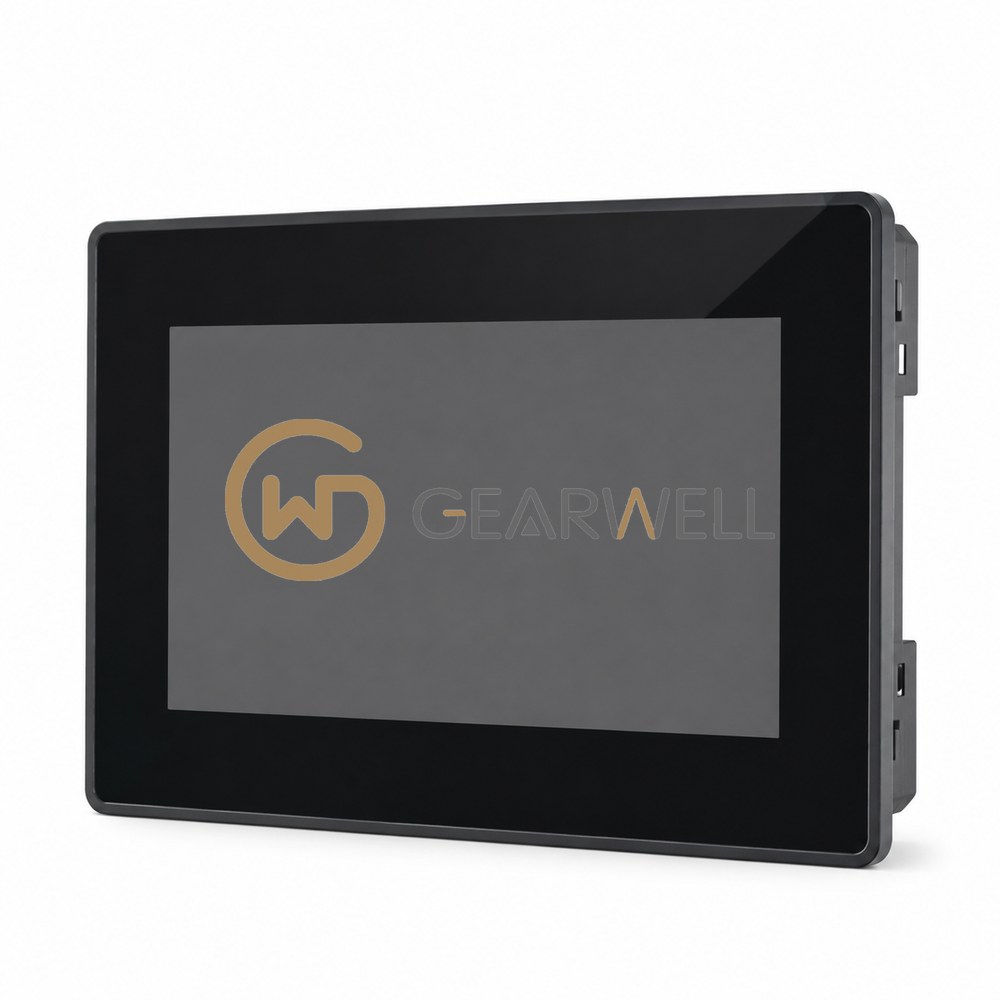

Weintek MT8071IE Human Machine Interface
- Brand
- Weintek
- Model
- MT8071IE
- GEARWELL SKU
- GWP-000002712
- Category
- Industrial Automation Parts
Key specifications
- Memory
- 128 MB flash and 128 MB RAM
- Display
- 7-inch TFT
- Processor
- 32-bit RISC Cortex-A8, 600 MHz
- Resolution
- 800 × 480
- Input power
- 24 V DC ±20%
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The Weintek MT8071iE is a 7-inch iE series operator panel (hardware version MT8071iE1) with an 800 x 480 TFT LCD (LED backlight, 400 cd/m2, 16.7M colors) and a 4-wire resistive touch screen. It has a 32-bit RISC 600MHz processor, 128 MB flash, 128 MB RAM, a built-in RTC, a coated PCB and fanless cooling. Ports are one USB 2.0 host, one 10/100 Base-T Ethernet, COM1 RS-232, COM2 RS-485 2W/4W and COM3 RS-485 2W. It runs from 24±20%VDC with built-in power isolation (450mA at 24VDC), has a UL Type 4X (indoor use only) / NEMA4 / IP65 front panel, operates from 0 to 50°C, measures 200.3 x 146.3 x 34 mm and fits a 192 x 138 mm cutout. It carries CE, cULus and ATEX Zone 2/22 markings and is programmed with EasyBuilder Pro.
Technical reference
| Product name | Weintek MT8071IE Human Machine Interface |
|---|---|
| Brand | Weintek |
| Model | MT8071IE |
| Category | Industrial Automation Parts |
| Memory | 128 MB flash and 128 MB RAM |
| Display | 7-inch TFT |
| Processor | 32-bit RISC Cortex-A8, 600 MHz |
| Resolution | 800 × 480 |
| Input power | 24 V DC ±20% |
| Touch panel | 4-wire resistive |
| Product type | 7-inch HMI operator panel |
| Front protection | NEMA 4 / IP65 compliant |
