Weintek MT8072iP HMI Touch Panel
- Brand
- Weintek
- Model
- MT8072iP
- GEARWELL SKU
- GWP-000006490
- Category
- HMIs & Industrial PCs
Key specifications
- Display diagonal
- 7 in
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview

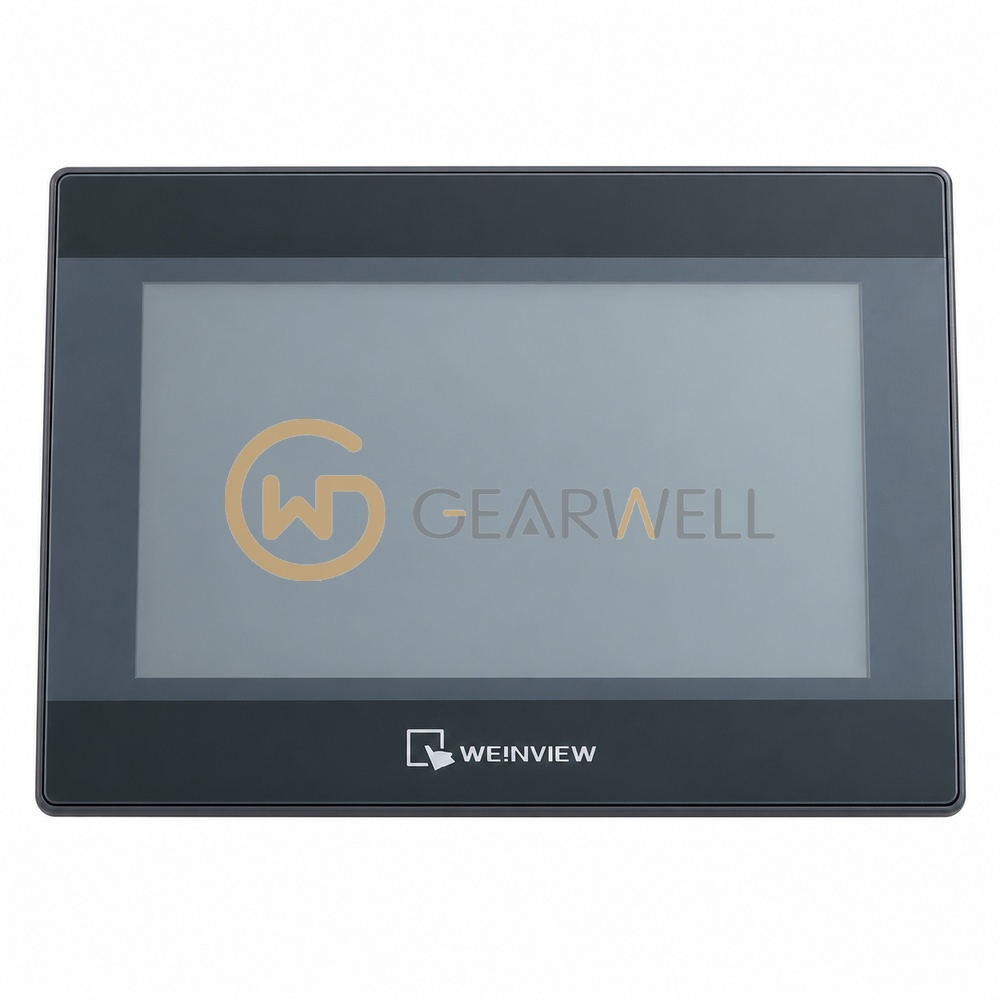

The Weintek MT8072iP is a 7-inch iP series operator panel with an 800 x 480 TFT LCD (LED backlight, 450 cd/m2, 16.7M colors) and a 4-wire resistive touch screen. It runs on a dual-core RISC processor with 256 MB flash, 128 MB RAM and a built-in RTC in a fanless plastic housing. Ports are one USB 2.0 host, one 10/100 Base-T Ethernet, COM1 RS-232 4W and COM2 RS-485 2W/4W. Power is 24±20% VDC with built-in isolation (450mA at 24 VDC), the front panel is NEMA4 / IP65, operating temperature is 0 to 55°C, and the 200.4 x 146.5 x 34 mm unit fits a 192 x 138 mm cutout. It is programmed with EasyBuilder Pro.
Technical reference
| Product name | Weintek MT8072iP HMI Touch Panel |
|---|---|
| Brand | Weintek |
| Model | MT8072iP |
| Category | HMIs & Industrial PCs |
| Display diagonal | 7 in |
