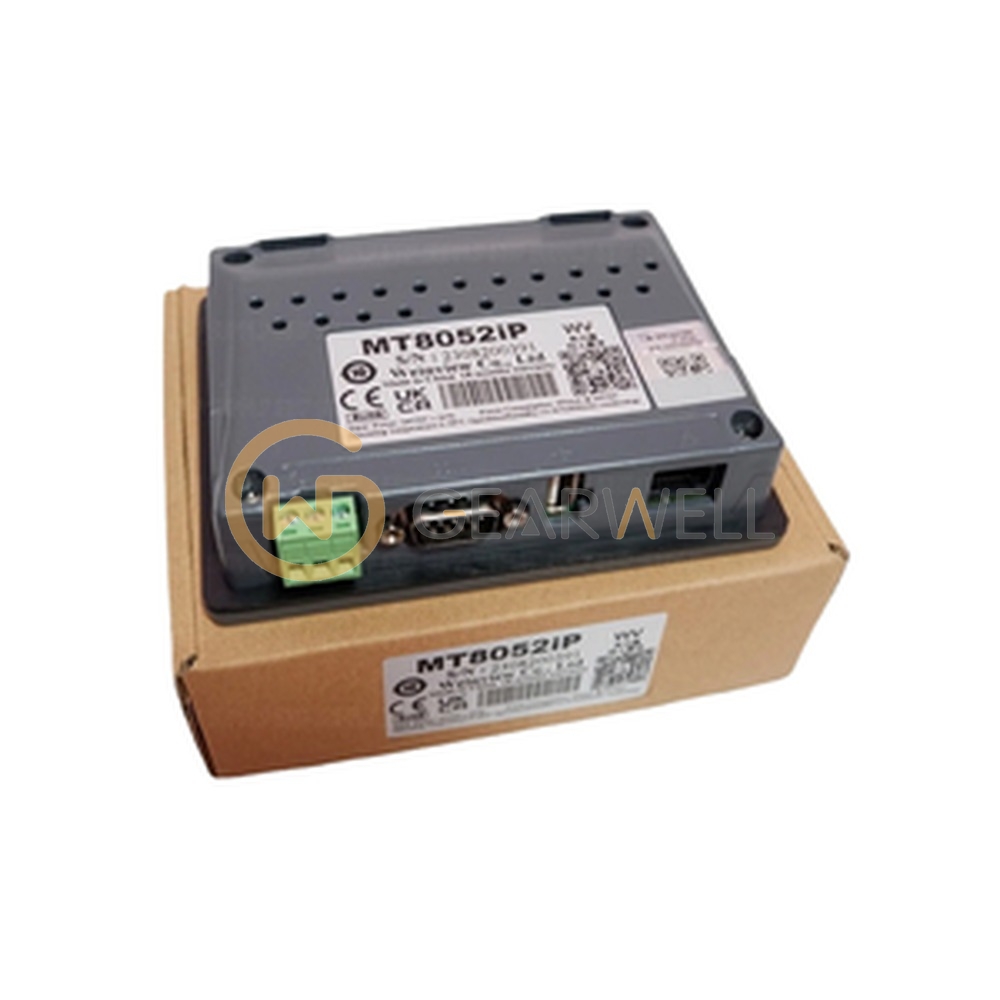

Weintek MT8052iP HMI Touch Panel
- Brand
- Weintek
- Model
- MT8052iP
- GEARWELL SKU
- GWP-000006362
- Category
- HMIs & Industrial PCs
Key specifications
- Display diagonal
- 4.3 in
- Communication interface
- Ethernet
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The Weintek MT8052iP is a compact 4.3-inch iP series operator panel with a 480 x 272 TFT LCD (LED backlight, 400 cd/m2) and a 4-wire resistive touch screen. It has a dual-core RISC processor, 256 MB flash, 128 MB RAM and a built-in RTC, with fanless cooling. Ports are one USB 2.0 host, one 10/100 Base-T Ethernet, COM1 RS-232/RS-485 2W/4W and COM3 RS-485 2W. It runs from 24±20% VDC with built-in power isolation, has a NEMA4 / IP65 front panel, operates from 0 to 55°C, measures 128 x 102 x 32 mm and needs a 119 x 93 mm cutout. Programming software is EasyBuilder Pro.
Technical reference
| Product name | Weintek MT8052iP HMI Touch Panel |
|---|---|
| Brand | Weintek |
| Model | MT8052iP |
| Category | HMIs & Industrial PCs |
| Display diagonal | 4.3 in |
| Communication interface | Ethernet |
