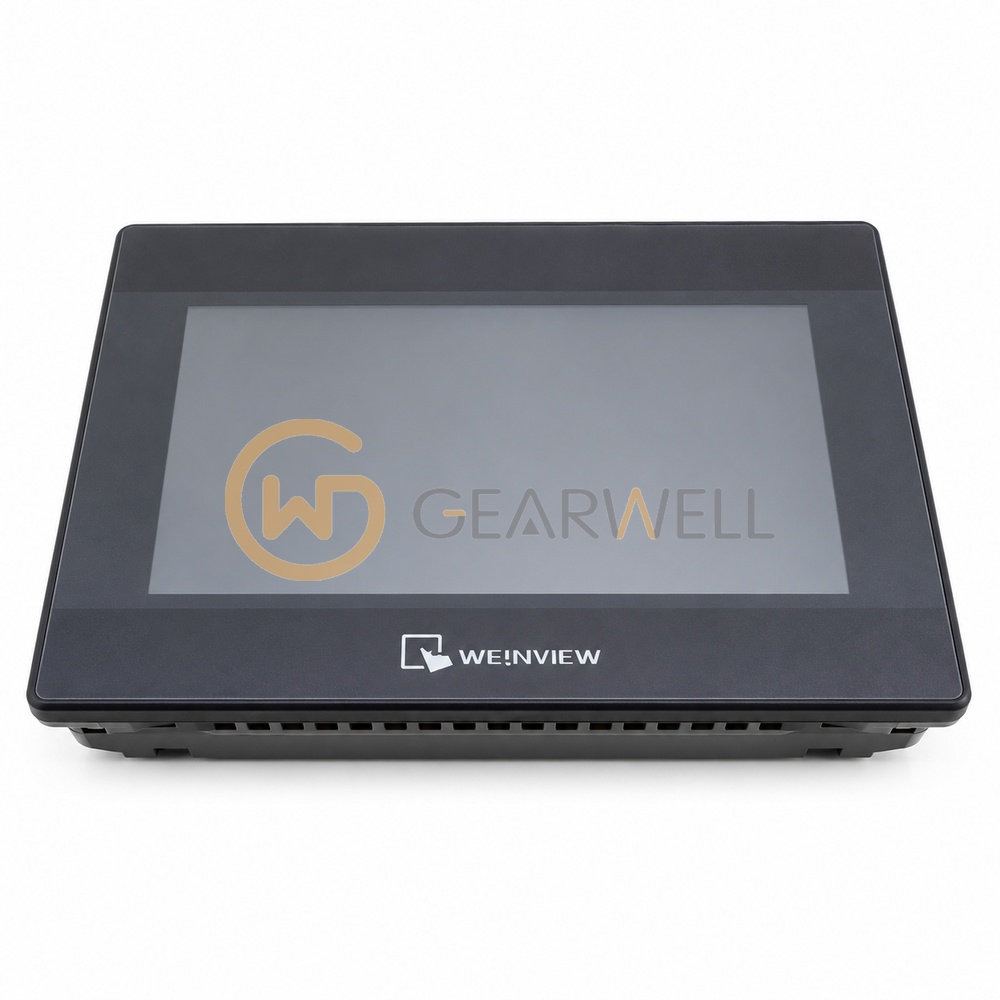

Weintek MT6071IP HMI Touch Panel
- Brand
- Weintek
- Model
- MT6071IP
- GEARWELL SKU
- GWP-000006503
- Category
- HMIs & Industrial PCs
Key specifications
- Display diagonal
- 7 in
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The Weintek MT6071iP is a 7-inch iP series operator panel without Ethernet, with an 800 x 480 TFT LCD (LED backlight, 300 cd/m2) and a 4-wire resistive touch screen. It has a 32-bit RISC Cortex-A8 600MHz processor, 128 MB flash, 128 MB RAM and a built-in RTC. Ports are one USB 2.0 host, one Micro USB client for project download, COM1 RS-232 and COM2 RS-485 2W/4W. It takes a 10.5~28VDC input with a built-in power isolator, has a NEMA4 / IP65 front panel, operates from 0 to 50°C, measures 200.4 x 146.5 x 34 mm and fits a 192 x 138 mm cutout. It is programmed with EasyBuilder Pro.
Technical reference
| Product name | Weintek MT6071IP HMI Touch Panel |
|---|---|
| Brand | Weintek |
| Model | MT6071IP |
| Category | HMIs & Industrial PCs |
| Display diagonal | 7 in |
