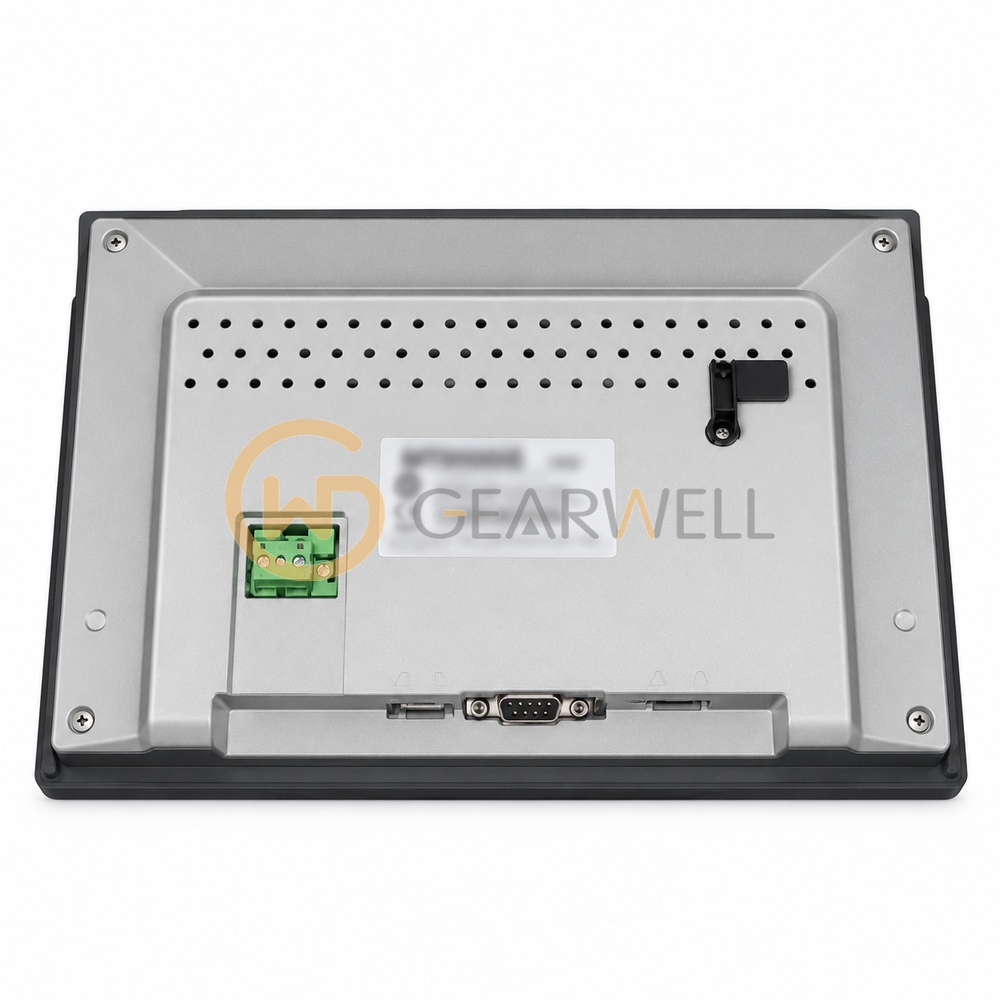

Weintek MT8100iE HMI Touch Panel

Product overview

The Weintek MT8100iE is a 10.1-inch iE series operator panel (hardware version MT8100iE2) with an 800 x 480 TFT LCD (LED backlight, 300 cd/m2, 262K colors) and a 4-wire resistive touch screen. It has a 32 bits RISC Cortex-A8 600MHz processor, 128 MB flash, 128 MB RAM, a built-in RTC, a coated PCB and fanless cooling. Ports are one USB 2.0 host, one 10/100 Base-T Ethernet, COM1 RS-232/RS-485 2W/4W and COM3 RS-485 2W, with dual isolation on the RS-485 ports. Power is 24±20%VDC with built-in isolation (maximum 600mA at 24VDC), the front panel is UL Type 4X (indoor use only) / NEMA4 / IP65, operating temperature is 0 to 50°C, and the 271 x 213 x 40 mm unit fits a 260 x 202 mm cutout. It is programmed with EasyBuilder Pro.
