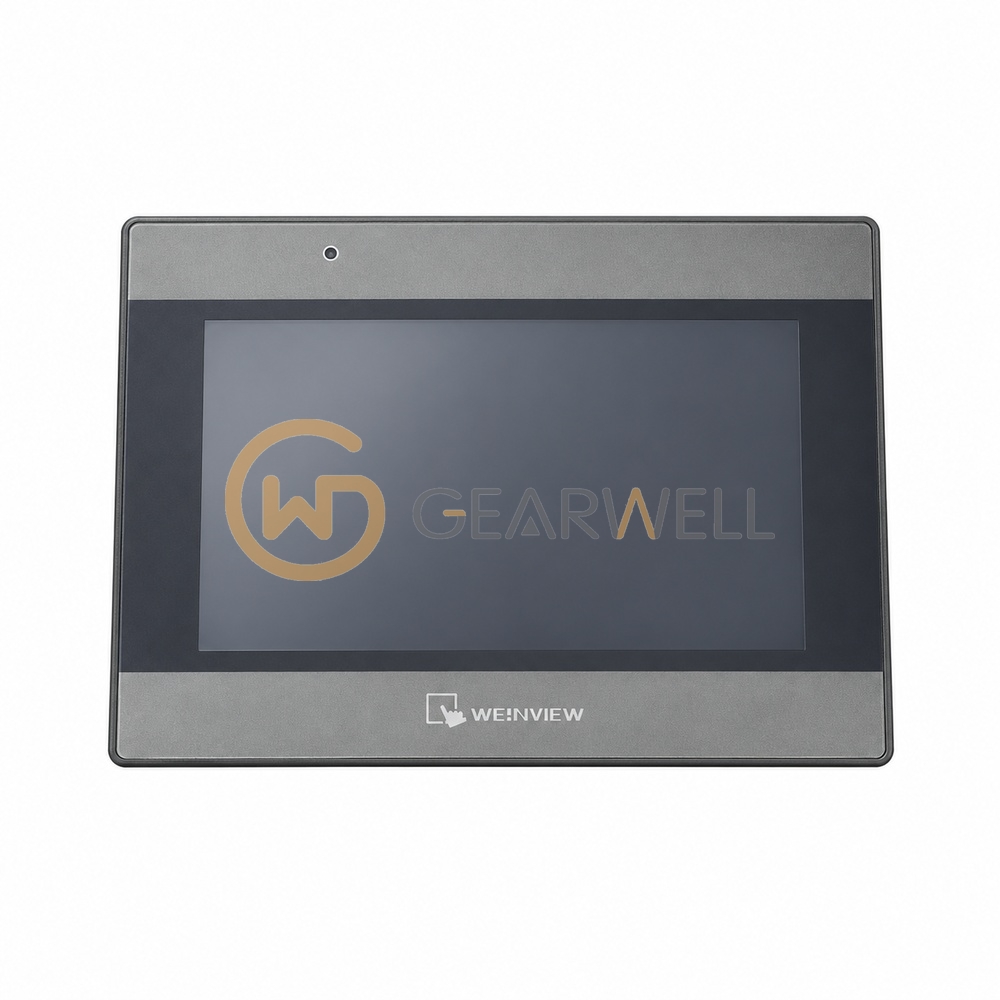

Weintek MT8070iER HMI Touch Panel

Product overview

The Weintek MT8070iER is a 7-inch rear-mount iE series operator panel (hardware version MT8070iER1) built to sit flush behind a cabinet wall, with an 800 x 480 TFT LCD (LED backlight, 400 cd/m2, 16.7M colors) and a 4-wire resistive touch screen. It has a 32-bit RISC 600MHz processor, 128 MB flash, 128 MB RAM, a built-in RTC, a coated PCB and fanless cooling. Ports are one USB 2.0 host, one 10/100 Base-T Ethernet, COM1 RS-232/RS-485 2W/4W and COM3 RS-485 2W, with dual isolation on the RS-485 ports. It runs from 24±20% VDC (350mA at 24VDC), measures 189.6 x 137.1 x 34.3 mm, needs a 174.6 mm x 113.6 mm cutout in a 1.5 mm to 3.5 mm thick wall, and reaches NEMA4 / IP65 only with a user-supplied front overlay; operating temperature is 0 to 50°C. It is programmed with EasyBuilder Pro.
