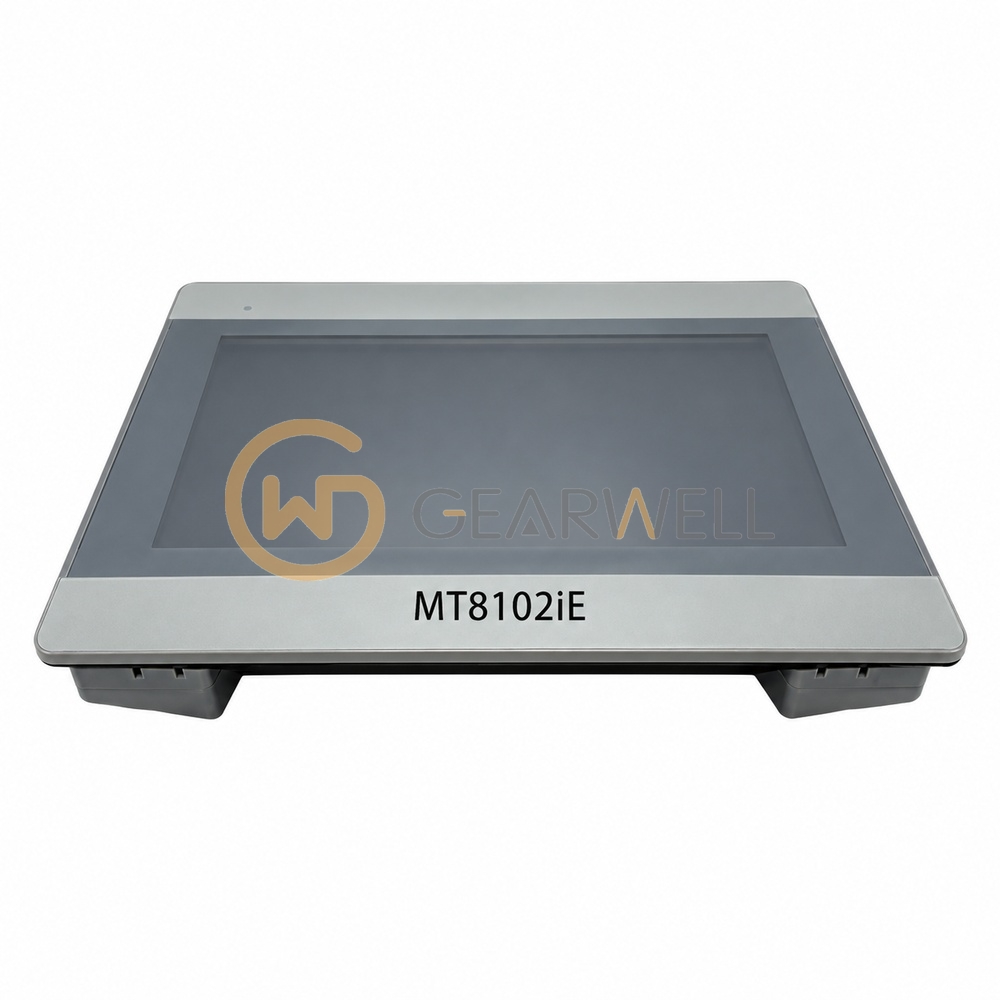

Weintek MT8102iE HMI Touch Panel

Product overview

The Weintek MT8102iE is a 10.1-inch iE series operator panel (hardware version MT8102iE1) with a 1024 x 600 TFT LCD (LED backlight, 350 cd/m2) and a 4-wire resistive touch screen. It has a 32-bit RISC 600MHz processor, 128 MB flash, 128 MB RAM, a built-in RTC, a coated PCB and fanless cooling. Ports are one USB 2.0 host, one 10/100 Base-T Ethernet and three serial ports (COM1 RS-485 2W or RS-232, COM2 RS-485 2W/4W, COM3 RS-485 2W/4W or RS-232) on two D-sub connectors. Power is 24±20%VDC with built-in isolation (650mA at 24VDC), the front panel is NEMA4 / IP65, operating temperature is 0 to 50°C, and the 271 x 213 x 36.4 mm unit fits a 260 x 202 mm cutout; the MT8102iE is not UL listed (the UL version is MT8102iEU). It is programmed with EasyBuilder Pro.
