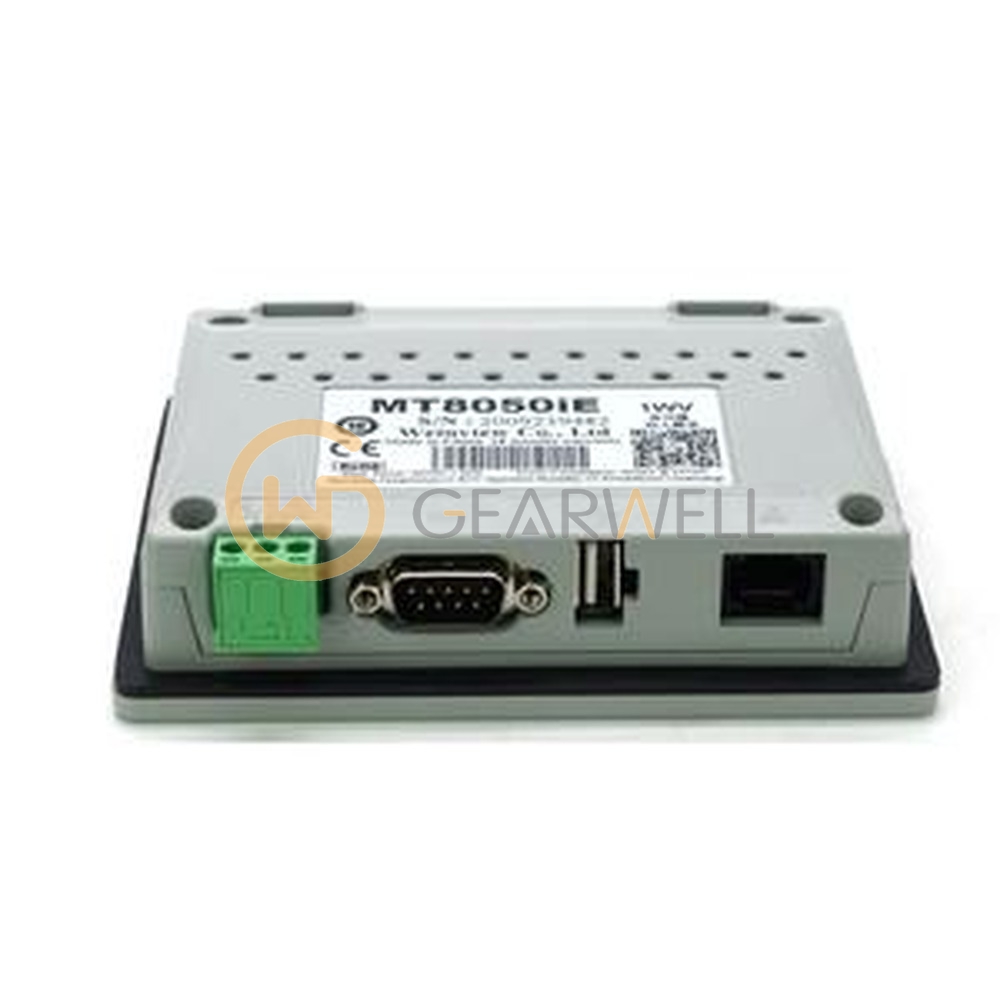

Weintek MT8050iE HMI Touch Panel

Product overview

The Weintek MT8050iE is a slim 4.3-inch iE series operator panel with a 480 x 272 TFT LCD (LED backlight, 400 cd/m2) and a 4-wire resistive touch screen. It has a 32 bits RISC Cortex-A8 600MHz processor, 128 MB flash, 128 MB RAM, a built-in RTC, a coated PCB and fanless cooling. Ports are one USB 2.0 host, one 10/100 Base-T Ethernet, COM1 RS-232/RS-485 2W/4W and COM3 RS-485 2W. It runs from 24±20%VDC with built-in power isolation (400mA at 24VDC), has a UL Type 4X (indoor use only) / NEMA4 / IP65 front panel, operates from 0 to 50°C, measures 128 x 102 x 32 mm and fits a 119 x 93 mm cutout. It is programmed with EasyBuilder Pro.
