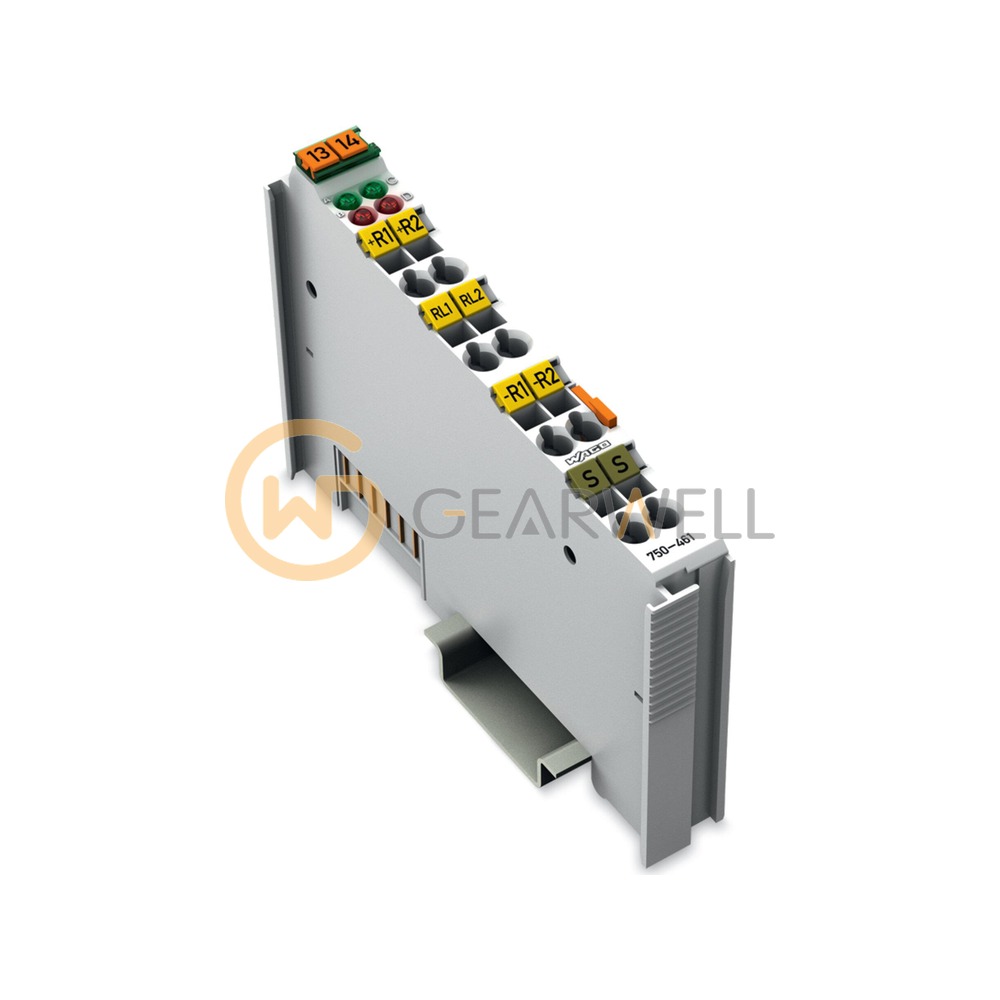

WAGO 750-461 I/O System 750 2-Channel RTD Analog Input Module
- Brand
- WAGO
- Model
- 750-461
- GEARWELL SKU
- GWP-000010042
- Category
- PLCs & I/O
Key specifications
- Width
- 12 mm / 0.472 inches
- Isolation
- 500 V system/field
- Sensor types
- Pt100
- Protection type
- IP20
- Supply voltage (system)
- 5 VDC; via data contacts
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The WAGO 750-461 is a 2-channel analog input module of the WAGO I/O System 750 for Pt100/RTD resistance sensors in 2-wire or 3-wire connection. It covers −200 … +850 °C with a resolution of 0.1 °C, a typical conversion time of 320 ms and a typical measuring current of 0.5 mA. The measurement error is 0.2 % of the upper-range value at 25 °C, and the module draws 80 mA from the system supply. It has 500 V system/field isolation, operates at 0 … +55 °C and measures (12 x 100 x 69.8) mm (W x H x D).
Technical reference
| Product name | WAGO 750-461 I/O System 750 2-Channel RTD Analog Input Module |
|---|---|
| Brand | WAGO |
| Model | 750-461 |
| Category | PLCs & I/O |
| Width | 12 mm / 0.472 inches |
| Isolation | 500 V system/field |
| Sensor types | Pt100 |
| Protection type | IP20 |
| Supply voltage (system) | 5 VDC; via data contacts |
| Number of analog inputs | 2 |
| Ambient temperature (operation) | 0 … +55 °C |
