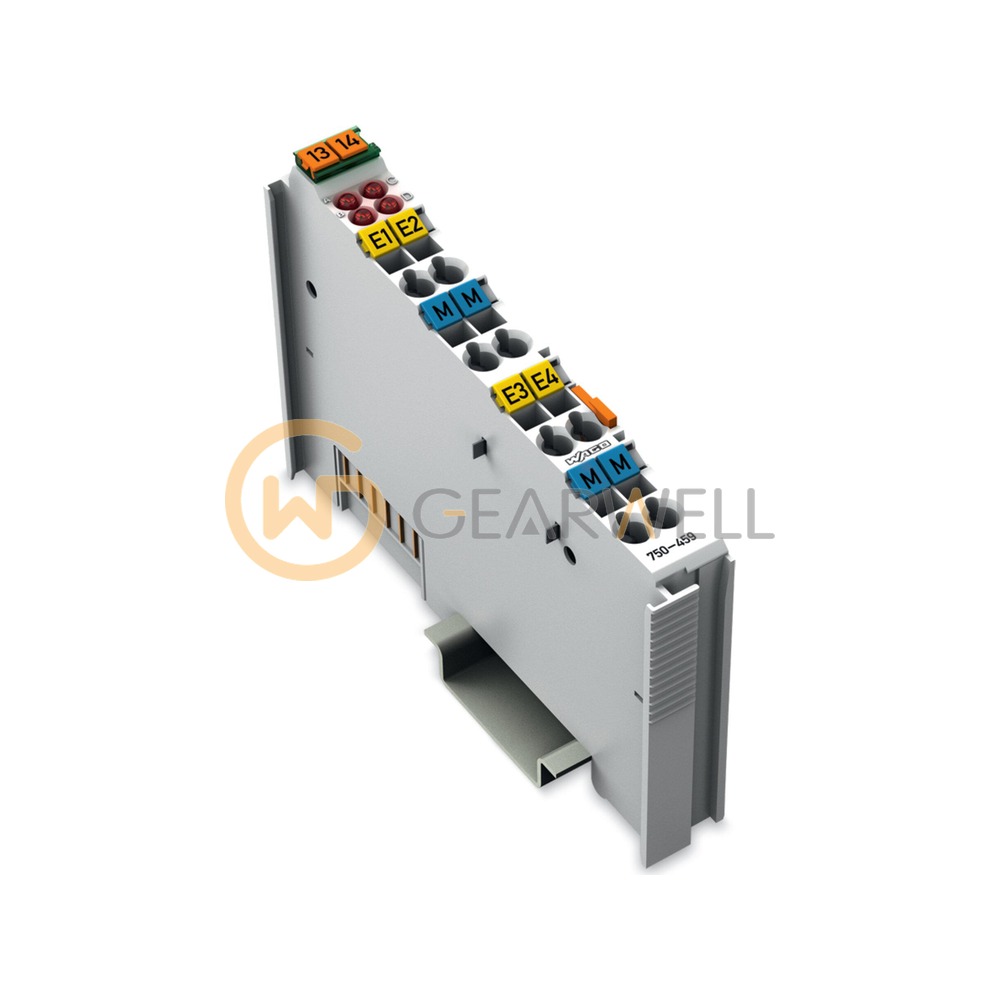

WAGO 750-459 I/O System 750 4-Channel Analog Input Module
- Brand
- WAGO
- Model
- 750-459
- GEARWELL SKU
- GWP-000010041
- Category
- PLCs & I/O
Key specifications
- Width
- 12 mm / 0.472 inches
- Isolation
- 500 V system/field
- Resolution [bit]
- 12 Bit
- Signal type (voltage)
- 0 … 10 VDC
- Supply voltage (field)
- 24 VDC (-25 … +30 %)
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The WAGO 750-459 is a 4-channel analog input module of the WAGO I/O System 750 for 0 … 10 VDC voltage signals in single-ended connection. It resolves 12 bits with a typical conversion time of 10 ms, has an internal resistance of 100 kΩ and a measurement error of 0.1 % of the upper-range value at 25 °C. Sensors connect as 4 x (2-wire) on the fixed connector, the 24 VDC field supply is taken from the power jumper contacts and the system-side current consumption is 65 mA. Isolation is 500 V system/field, the operating temperature is 0 … +55 °C and the size is (12 x 100 x 69.8) mm (W x H x D).
Technical reference
| Product name | WAGO 750-459 I/O System 750 4-Channel Analog Input Module |
|---|---|
| Brand | WAGO |
| Model | 750-459 |
| Category | PLCs & I/O |
| Width | 12 mm / 0.472 inches |
| Isolation | 500 V system/field |
| Resolution [bit] | 12 Bit |
| Signal type (voltage) | 0 … 10 VDC |
| Supply voltage (field) | 24 VDC (-25 … +30 %) |
| Supply voltage (system) | 5 VDC; via data contacts |
| Number of analog inputs | 4 |
| Ambient temperature (operation) | 0 … +55 °C |
