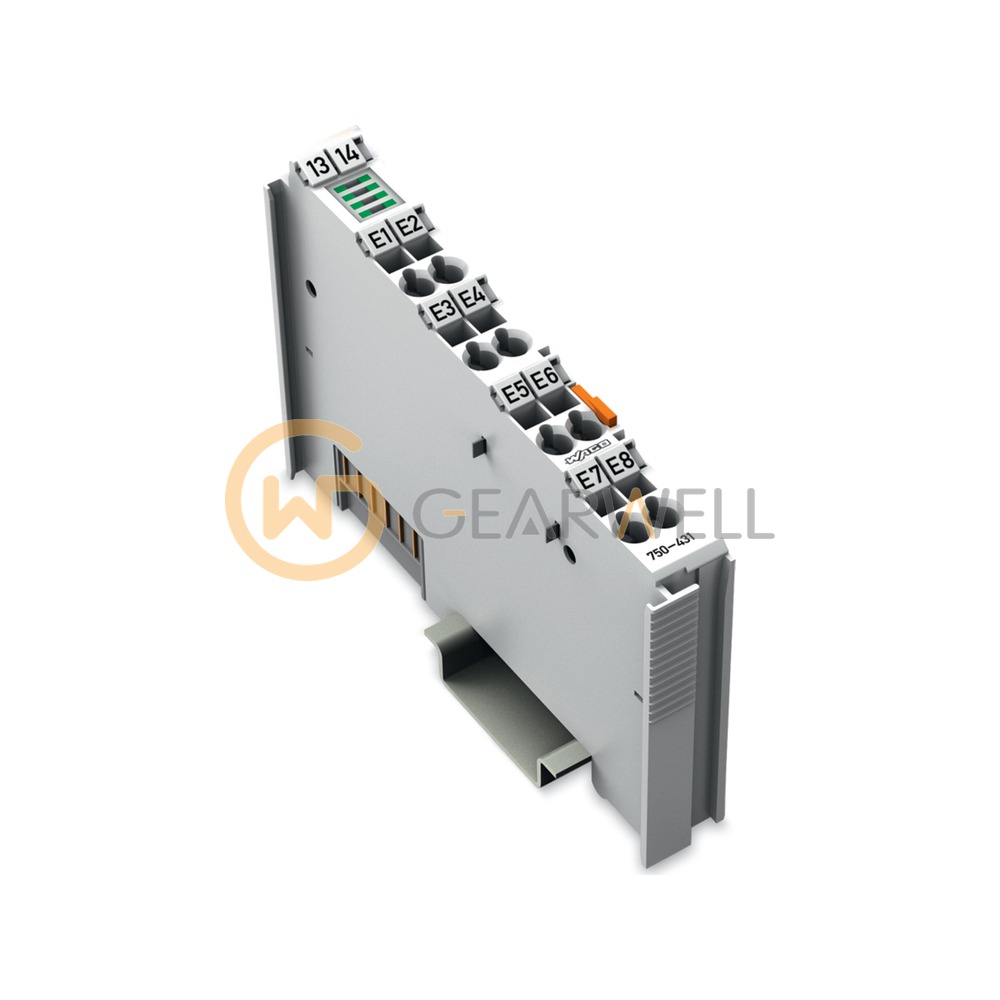

WAGO 750-431 I/O System 750 8-Channel Digital Input Module
- Brand
- WAGO
- Model
- 750-431
- GEARWELL SKU
- GWP-000010040
- Category
- PLCs & I/O
Key specifications
- Width
- 12 mm / 0.472 inches
- Input filter
- 0.2 ms
- Signal type (voltage)
- 24 VDC
- Supply voltage (field)
- 24 VDC (-25 … +30 %)
- Supply voltage (system)
- 5 VDC; via data contacts
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The WAGO 750-431 is an 8-channel digital input module of the WAGO I/O System 750 for 24 VDC signals with a fast 0.2 ms input filter and high-side switching. Signal (0) is −3 … +5 VDC, signal (1) is 15 … 30 VDC, and the typical input current for signal (1) is 2.8 mA. Sensors connect as 8 x (1-wire) on the fixed connector, the 24 VDC field supply comes via the power jumper contacts and the system-side current consumption is 17 mA. Isolation is 500 V system/field, the operating temperature is 0 … +55 °C and the size is (12 x 100 x 67.8) mm (W x H x D).
Technical reference
| Product name | WAGO 750-431 I/O System 750 8-Channel Digital Input Module |
|---|---|
| Brand | WAGO |
| Model | 750-431 |
| Category | PLCs & I/O |
| Width | 12 mm / 0.472 inches |
| Input filter | 0.2 ms |
| Signal type (voltage) | 24 VDC |
| Supply voltage (field) | 24 VDC (-25 … +30 %) |
| Supply voltage (system) | 5 VDC; via data contacts |
| Number of digital inputs | 8 |
| Ambient temperature (operation) | 0 … +55 °C |
| Current carrying capacity (power jumper contacts) | 10 A |
