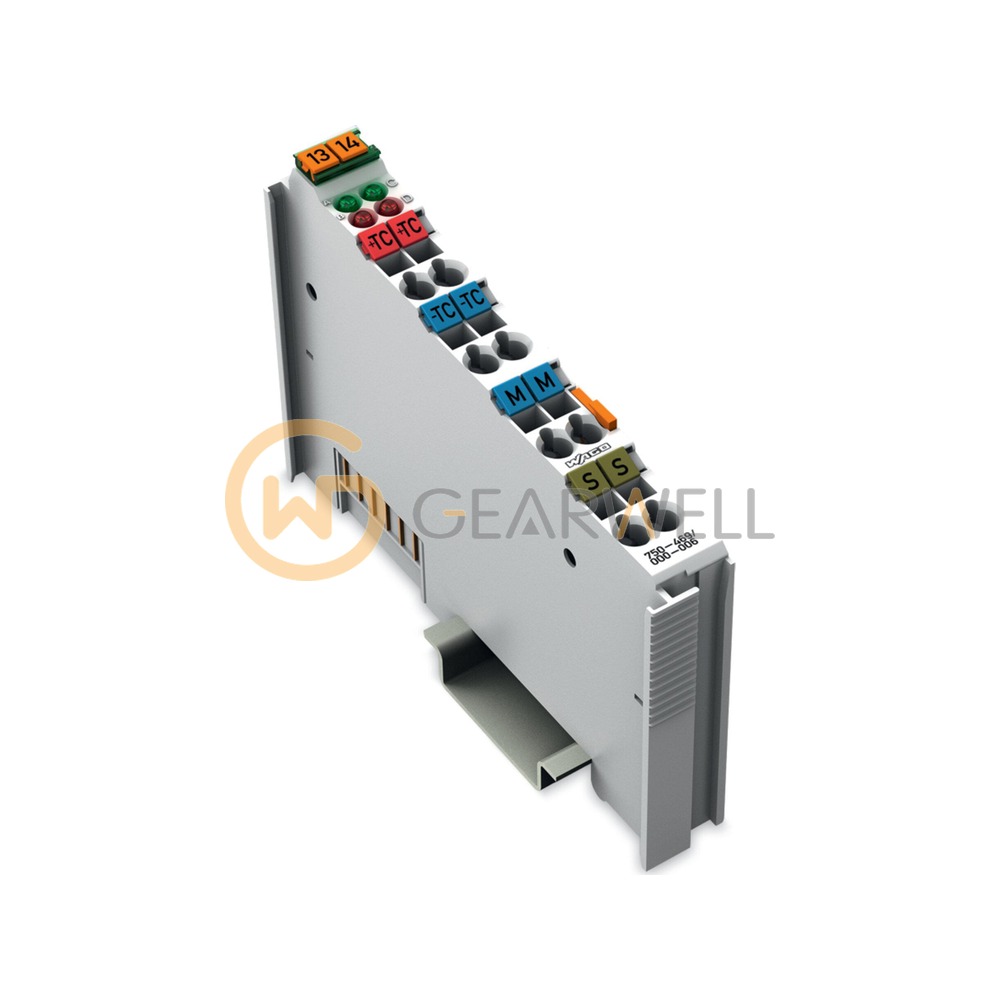

WAGO 750-469/000-006 2-Channel Thermocouple Input Module
- Brand
- WAGO
- Model
- 750-469/000-006
- GEARWELL SKU
- GWP-000010043
- Category
- PLCs & I/O
Key specifications
- Width
- 12 mm / 0.472 inches
- Isolation
- 500 V system/field
- Sensor types
- Thermocouple J
- Protection type
- IP20
- Supply voltage (system)
- 5 VDC; via data contacts
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The WAGO 750-469/000-006 is a 2-channel analog input module of the WAGO I/O System 750 for type J thermocouples, with diagnostics. It measures −100 … +1200 °C with a resolution of 0.1 °C and a typical conversion time of 320 ms, and the internal resistance is 1000 kΩ. Sensors connect as 2 x (2-wire), cold junction compensation takes place at each pair of terminal blocks, and the module draws 65 mA from the system supply. It has 500 V system/field isolation, works at 0 … +55 °C and is (12 x 100 x 69.8) mm (W x H x D).
Technical reference
| Product name | WAGO 750-469/000-006 2-Channel Thermocouple Input Module |
|---|---|
| Brand | WAGO |
| Model | 750-469/000-006 |
| Category | PLCs & I/O |
| Width | 12 mm / 0.472 inches |
| Isolation | 500 V system/field |
| Sensor types | Thermocouple J |
| Protection type | IP20 |
| Supply voltage (system) | 5 VDC; via data contacts |
| Number of analog inputs | 2 |
| Ambient temperature (operation) | 0 … +55 °C |
