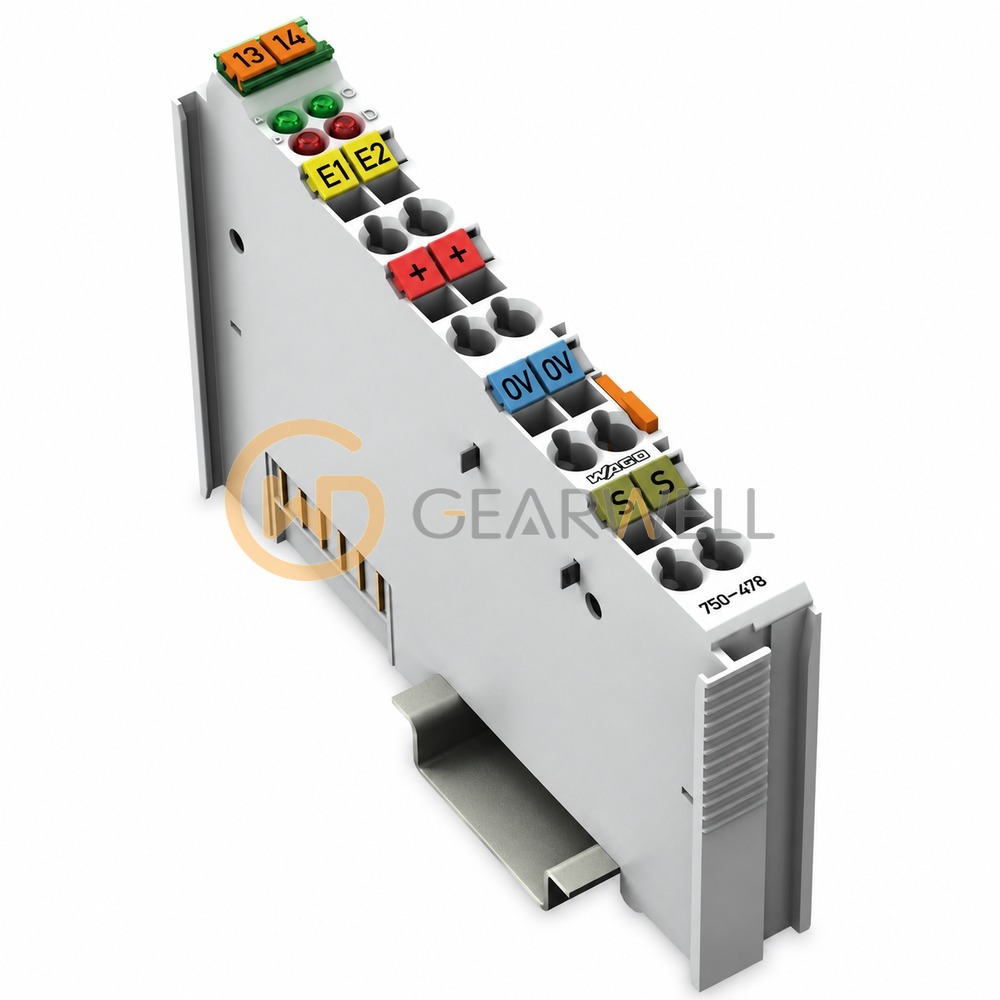

WAGO 750-478 2-Channel Analog Input Module

Product overview

The WAGO 750-478 is a 2-channel analog input module of the WAGO I/O System 750 for 0 … 10 VDC voltage signals in single-ended connection with 16 bits resolution. The typical conversion time is 80 ms, the internal resistance is 130 kΩ, the analog input filter is set for 50 Hz and the measurement error is 0.1 % of the upper-range value at 25 °C. Sensors connect as 2 x (2-wire) on the fixed connector, the 24 VDC field supply comes via the power jumper contacts, and the system-side current consumption is 75 mA. Isolation is 500 V system/field, the operating temperature is 0 … +55 °C and the size is (12 x 100 x 69.8) mm (W x H x D).
