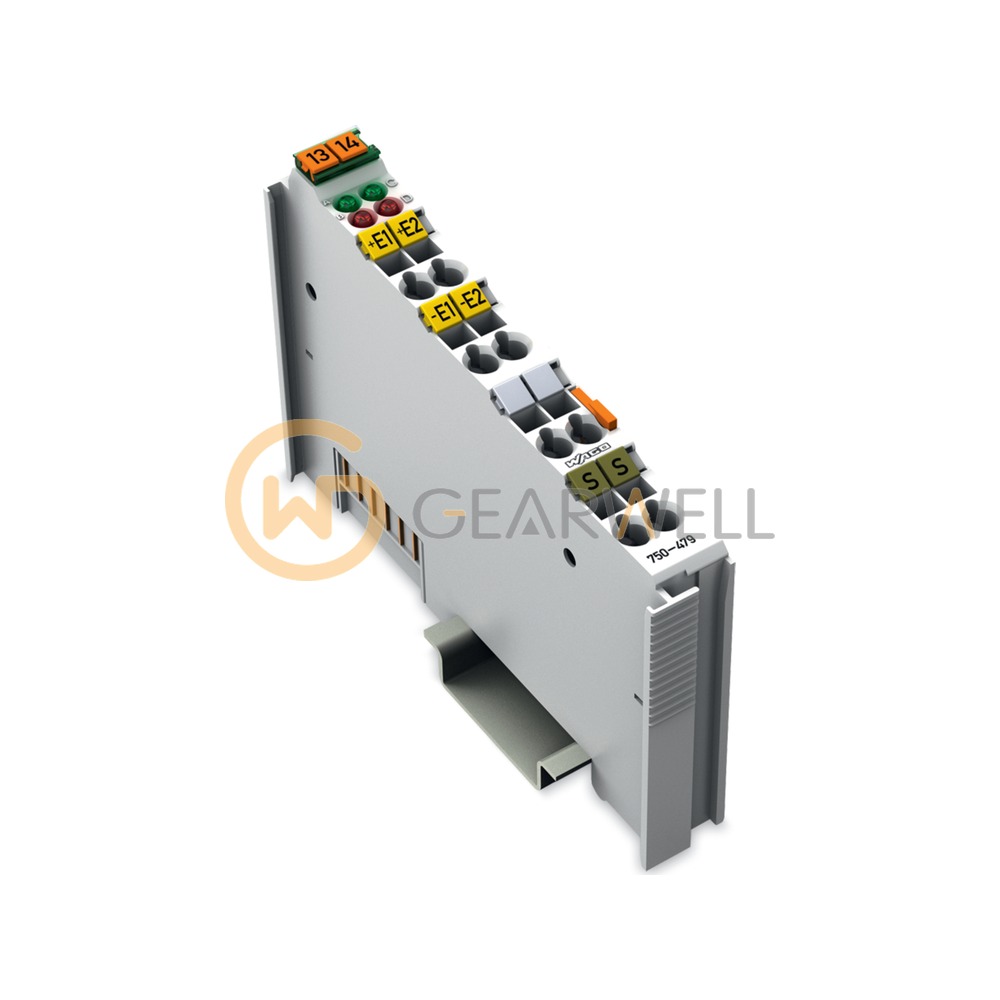

WAGO 750-479 2-Channel Differential Analog Voltage Input Module

Product overview

The WAGO 750-479 is a 2-channel analog input module of the WAGO I/O System 750 for -10 … +10 VDC voltage signals with differential inputs and time-synchronized measured value acquisition within the module. It resolves 14 bits, has an internal resistance of 1000 kΩ, tolerates a continuous overload of 60 V and has a measurement error of 0.05 % of the upper-range value at 25 °C. Sensors connect as 2 x (2-wire) on the fixed connector and the module draws 100 mA from the system supply. It has 500 V system/field or channel/channel isolation, operates at 0 … +55 °C and measures (12 x 100 x 69.8) mm (W x H x D).
