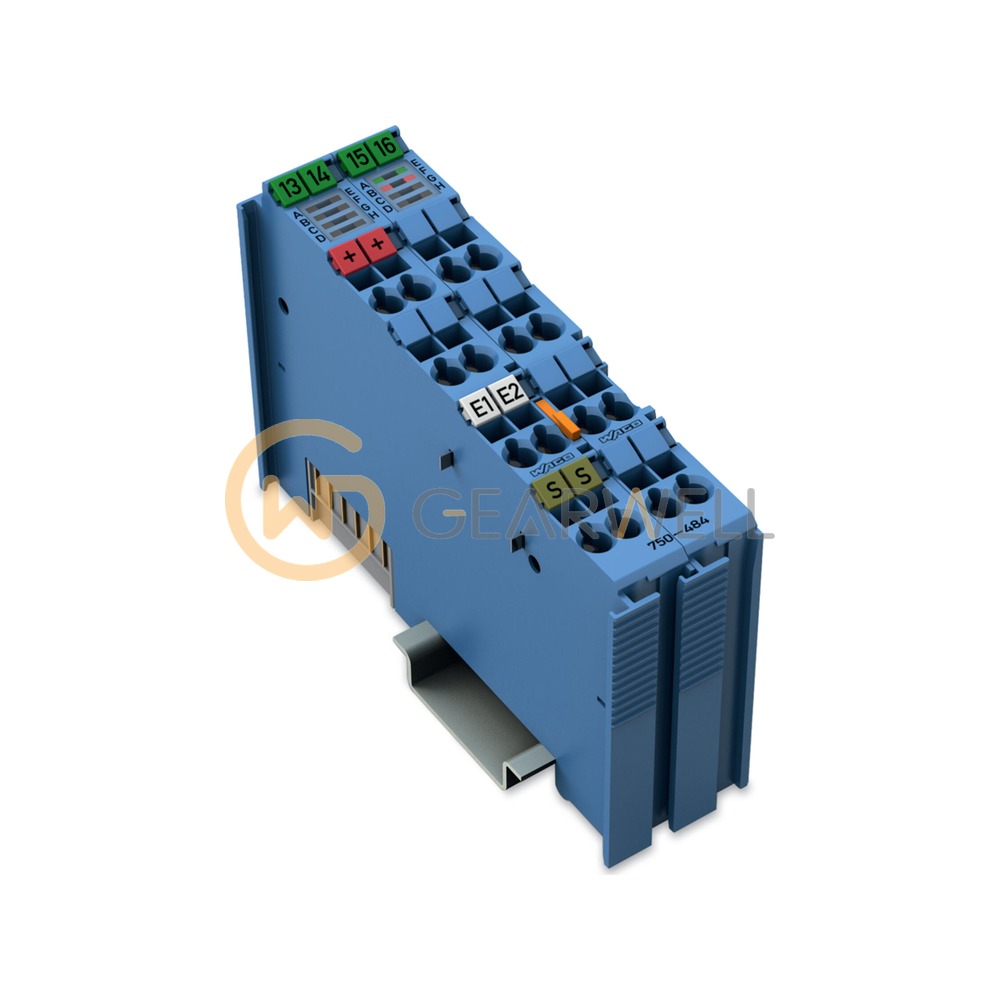

WAGO 750-484 I/O System 750 2-Channel HART Analog Input Module Ex i
- Brand
- WAGO
- Model
- 750-484
- GEARWELL SKU
- GWP-000010044
- Category
- PLCs & I/O
Key specifications
- Width
- 24 mm / 0.945 inches
- Input filter
- parameterizable
- Resolution [bit]
- 12 Bit
- Signal type (current)
- 4 … 20 mADC
- Supply voltage (field)
- 24 VDC
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The WAGO 750-484 is an intrinsically safe (Ex i) analog input module of the WAGO I/O System 750 with 2 single-ended channels for 4 … 20 mADC sensors and optional HART communication. Each channel takes a 2-wire sensor, with 12 bits resolution, a typical conversion time of 10 ms and wire break and overrange diagnostics. The field side is supplied with 24 VDC from the Ex i power supply (Uo = max. 26.8 V) via power jumper contacts, and the module draws 25 mA from the system supply and 26 mA from the field supply. Isolation is 300 VAC system/supply, the ambient temperature range is 0 … +55 °C and the dimensions are (24 x 100 x 67.8) mm W x H x D.
Technical reference
| Product name | WAGO 750-484 I/O System 750 2-Channel HART Analog Input Module Ex i |
|---|---|
| Brand | WAGO |
| Model | 750-484 |
| Category | PLCs & I/O |
| Width | 24 mm / 0.945 inches |
| Input filter | parameterizable |
| Resolution [bit] | 12 Bit |
| Signal type (current) | 4 … 20 mADC |
| Supply voltage (field) | 24 VDC |
| Number of analog inputs | 2 |
| Ambient temperature (operation) | 0 … +55 °C |
| Current carrying capacity (power jumper contacts) | 1 A |
