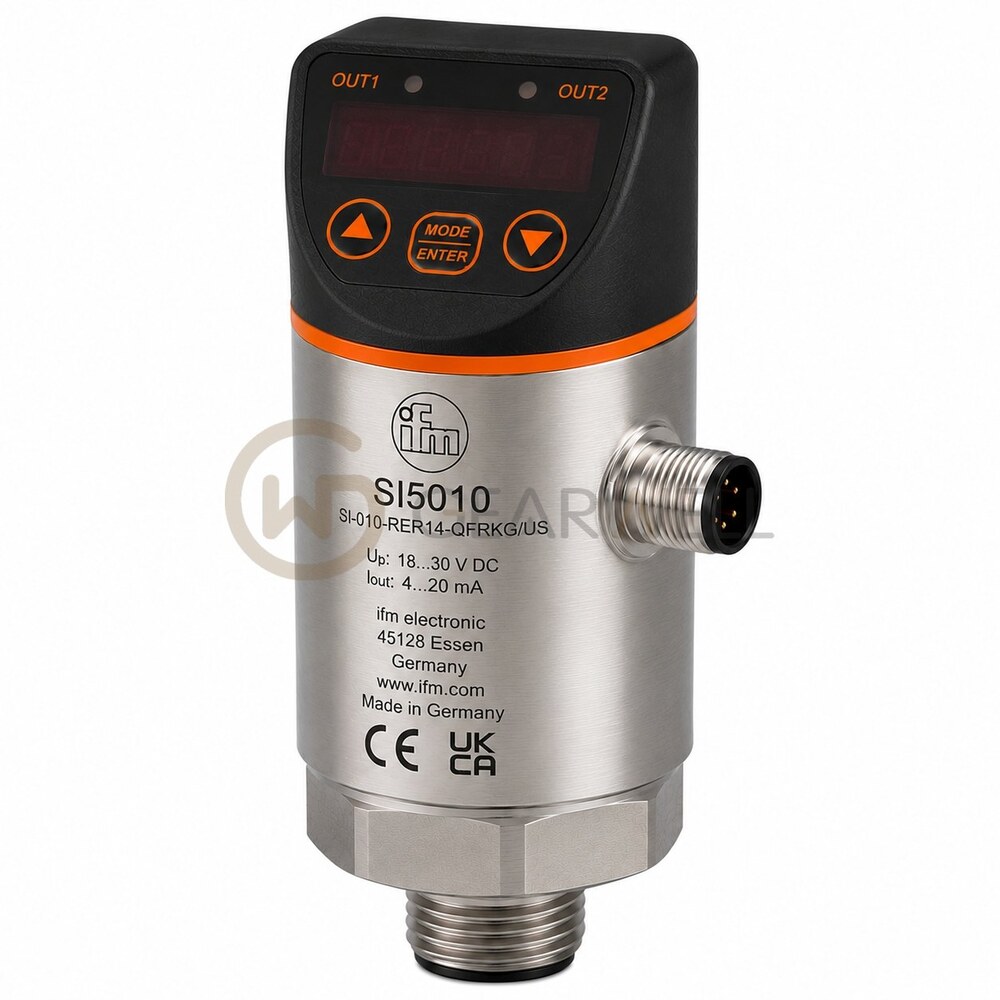

IFM SI5010 Flow Monitor
- Brand
- IFM
- Model
- SI5010
- GEARWELL SKU
- GWP-000003105
- Category
- Industrial Automation Parts
Key specifications
- Product type
- Flow monitor
- Output signal
- switching signal; IO-Link; (configurable)
- Output function
- normally open / closed; (configurable)
- Electrical design
- PNP
- Operating voltage
- 18...36 V DC
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The ifm SI5010 (SID10ADBFPKG/US-100) is a flow monitor for liquids and gases. The flow switch point can be set over 3…300 cm/s, with the greatest sensitivity at 3…100 cm/s and a response time of 1…10 s. The probe is 45 mm long and 8.2 mm in diameter. The process connection is an M18 x 1.5 internal thread, the pressure rating is 300 bar, the wetted parts are stainless steel (1.4404 / 316L) and FKM O-ring (80 Shore A) and the medium temperature range is -25…80 °C. It provides 1 switching output (PNP) and IO-Link, with the switching output configurable as normally open or normally closed and rated at 250 mA, runs on 18…36 V DC and connects through an M12 connector (A-coded, 4 contacts). The unit is Ø 50 mm and 113 mm long and is rated IP65 and IP67 for -25…80 °C ambient.
Technical reference
| Product name | IFM SI5010 Flow Monitor |
|---|---|
| Brand | IFM |
| Model | SI5010 |
| Category | Industrial Automation Parts |
| Product type | Flow monitor |
| Output signal | switching signal; IO-Link; (configurable) |
| Output function | normally open / closed; (configurable) |
| Electrical design | PNP |
| Operating voltage | 18...36 V DC |
| Process connection | threaded connection M18 x 1,5 Internal thread |
| Current consumption | < 60 mA |
| Communication interface | IO-Link |
