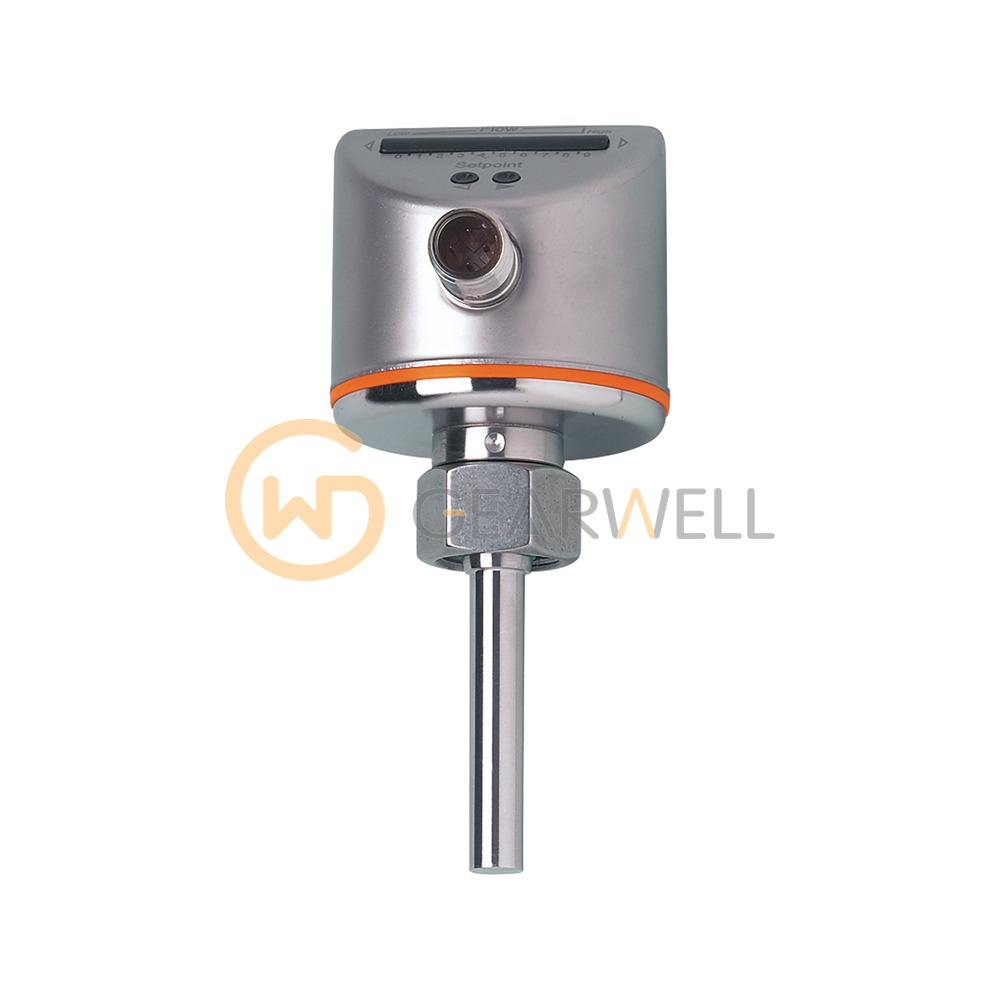

IFM SI5004 SID10ADB10OG/ Flow Transmitter
- Brand
- IFM
- Model
- SI5004
- GEARWELL SKU
- GWP-000009396
- Category
- Pressure, Flow & Temperature
Key specifications
- Housing
- cylindrical
- Materials
- stainless steel (316L/1.4404); stainless steel (304/1.4301); PC; PBT-GF20; EPDM/X
- Dimensions
- Ø 50 / L = 113 mm
- Protection
- IP 67
- Operating voltage
- 19...36 DC V
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The ifm SI5004 (SID10ADB10OG/) is a flow transmitter for liquids. The flow switch point can be set over 3…300 cm/s, with the greatest sensitivity at 3…100 cm/s and a response time of 1…10 s. The probe is 45 mm long and 8.2 mm in diameter. The process connection is an M18 x 1.5 internal thread, the pressure rating is 300 bar, the wetted parts are stainless steel (1.4404 / 316L) and FKM O-ring (80 Shore A) and the medium temperature range is -25…80 °C. It provides 1 analog output (4…20 mA), runs on 19…36 V DC and connects through an M12 connector (A-coded, 4 contacts). The unit is Ø 50 mm and 113 mm long and is rated IP67 for -25…80 °C ambient.
Technical reference
| Product name | IFM SI5004 SID10ADB10OG/ Flow Transmitter |
|---|---|
| Brand | IFM |
| Model | SI5004 |
| Category | Pressure, Flow & Temperature |
| Housing | cylindrical |
| Materials | stainless steel (316L/1.4404); stainless steel (304/1.4301); PC; PBT-GF20; EPDM/X |
| Dimensions | Ø 50 / L = 113 mm |
| Protection | IP 67 |
| Operating voltage | 19...36 DC V |
| Ambient temperature | -25...80 °C |
| Current consumption | < 60 mA |
| Number of analogue outputs | 1 |
