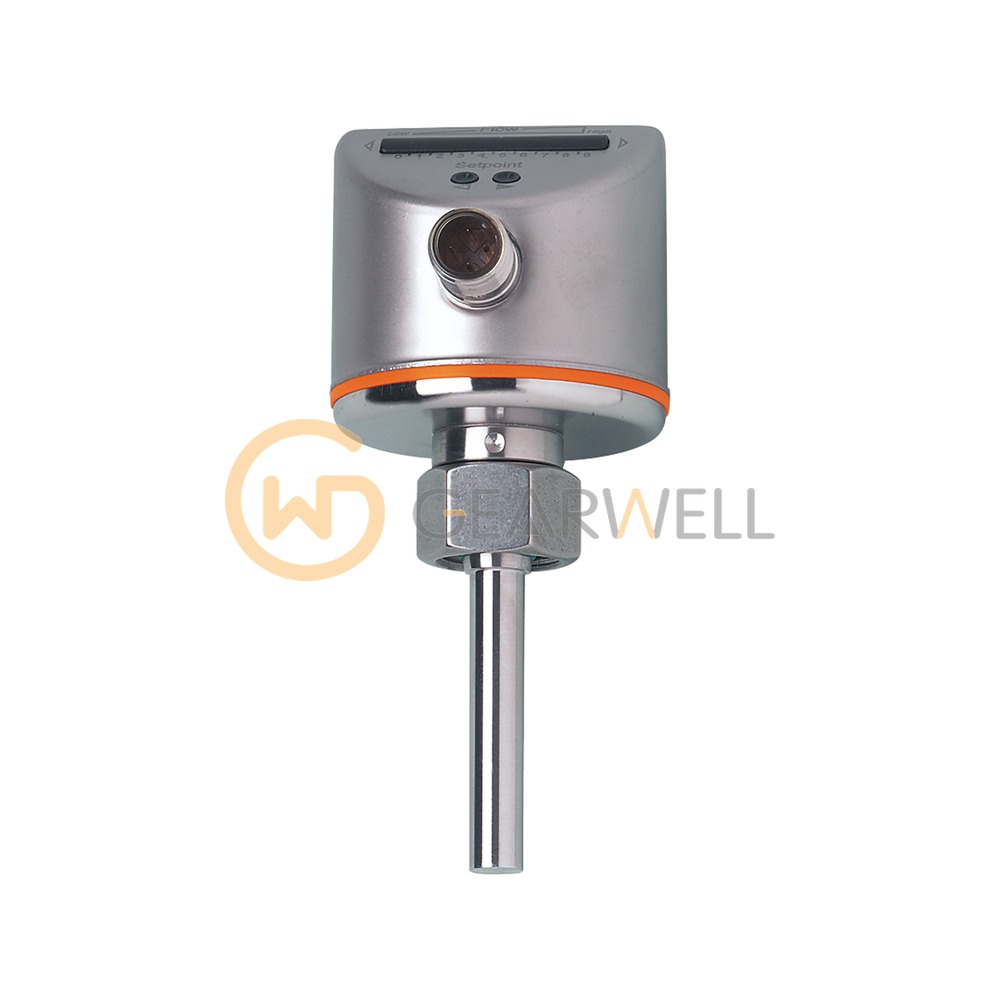

IFM SI5012 Flow monitor
- Brand
- IFM
- Model
- SI5012
- GEARWELL SKU
- GWP-000014135
- Category
- Pressure, Flow & Temperature
Key specifications
- Connector
- 1 x M12; coding: A; Contacts: 4
- Setting range
- 3...300 cm/s
- Probe length L
- 45 mm
- Output function
- normally open / closed; (configurable)
- Pressure rating
- 300 bar / 30 MPa
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The ifm SI5012 (SID10ADBFPKG/US-100) is a flow monitor for liquids and gases. The flow switch point can be set over 3…300 cm/s, with the greatest sensitivity at 3…100 cm/s and a response time of 1…10 s. The probe is 45 mm long and 8.2 mm in diameter. The process connection is an M18 x 1.5 internal thread, the pressure rating is 300 bar, the wetted parts are stainless steel (1.4404 / 316L) and FKM O-ring (80 Shore A) and the medium temperature range is -25…80 °C. It provides 1 switching output (PNP), with the switching output configurable as normally open or normally closed and rated at 250 mA, runs on 19…36 V DC and connects through an M12 connector (A-coded, 4 contacts). The unit is Ø 50 mm and 113 mm long and is rated IP67 for -25…80 °C ambient.
Technical reference
| Product name | IFM SI5012 Flow monitor |
|---|---|
| Brand | IFM |
| Model | SI5012 |
| Category | Pressure, Flow & Temperature |
| Connector | 1 x M12; coding: A; Contacts: 4 |
| Setting range | 3...300 cm/s |
| Probe length L | 45 mm |
| Output function | normally open / closed; (configurable) |
| Pressure rating | 300 bar / 30 MPa |
| Electrical design | PNP |
| Operating voltage | 19...36 DC V |
| Process connection | threaded connection M18 x 1,5 Internal thread |
