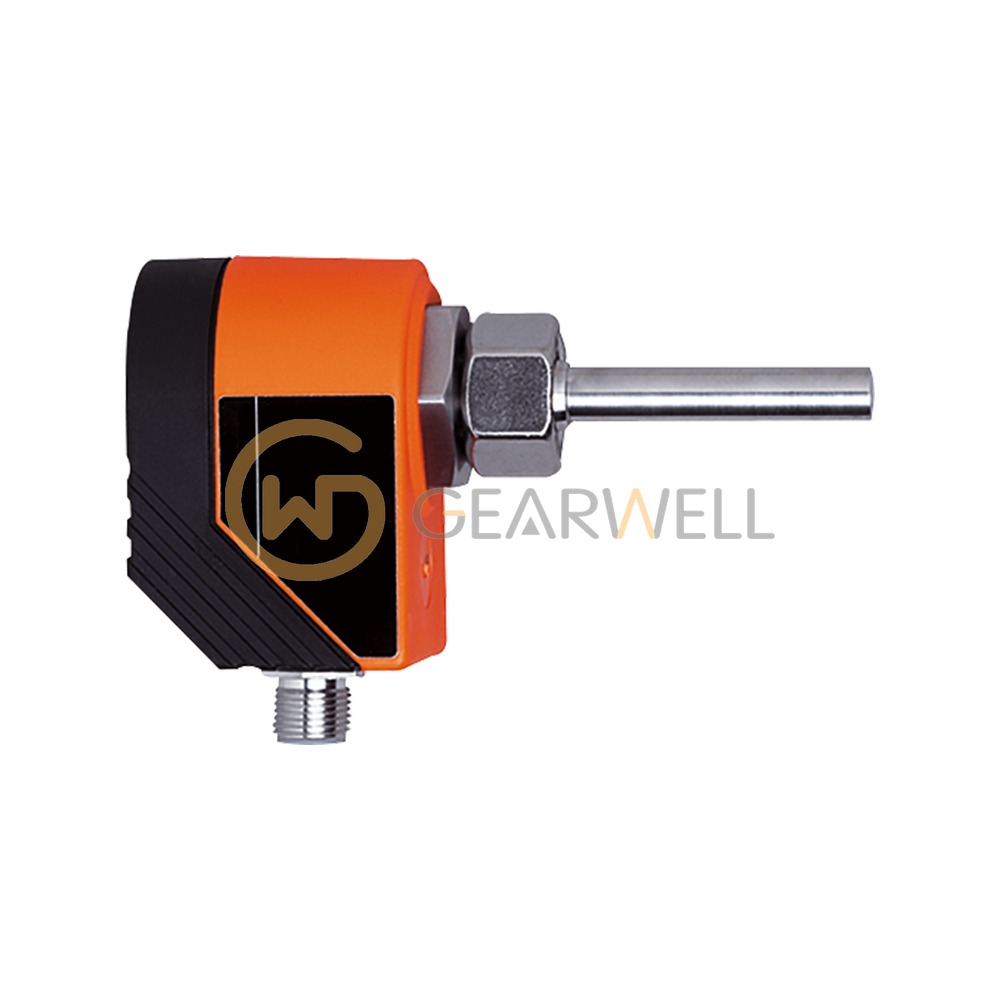

IFM SI1004 SID10ADB100G/US-100-IAZ Flow monitor
- Brand
- IFM
- Model
- SI1004
- GEARWELL SKU
- GWP-000012537
- Category
- Pressure, Flow & Temperature
Key specifications
- Protection
- IP 67
- Output signal
- analog signal
- Operating voltage
- 20...36 DC; (according to EN 50178 SELV/PELV ; referring to UL: “limited voltage” with overcurrent protection in accordance with UL508) V
- Medium temperature
- -25...80 °C
- Process connection
- threaded connection M18 x 1,5 Internal thread
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsTechnical reference
| Product name | IFM SI1004 SID10ADB100G/US-100-IAZ Flow monitor |
|---|---|
| Brand | IFM |
| Model | SI1004 |
| Category | Pressure, Flow & Temperature |
| Protection | IP 67 |
| Output signal | analog signal |
| Operating voltage | 20...36 DC; (according to EN 50178 SELV/PELV ; referring to UL: “limited voltage” with overcurrent protection in accordance with UL508) V |
| Medium temperature | -25...80 °C |
| Process connection | threaded connection M18 x 1,5 Internal thread |
| Ambient temperature | -25...80 °C |
| Current consumption | 90; (without load) mA |
| Number of inputs and outputs | Number of analog outputs: 1 |
