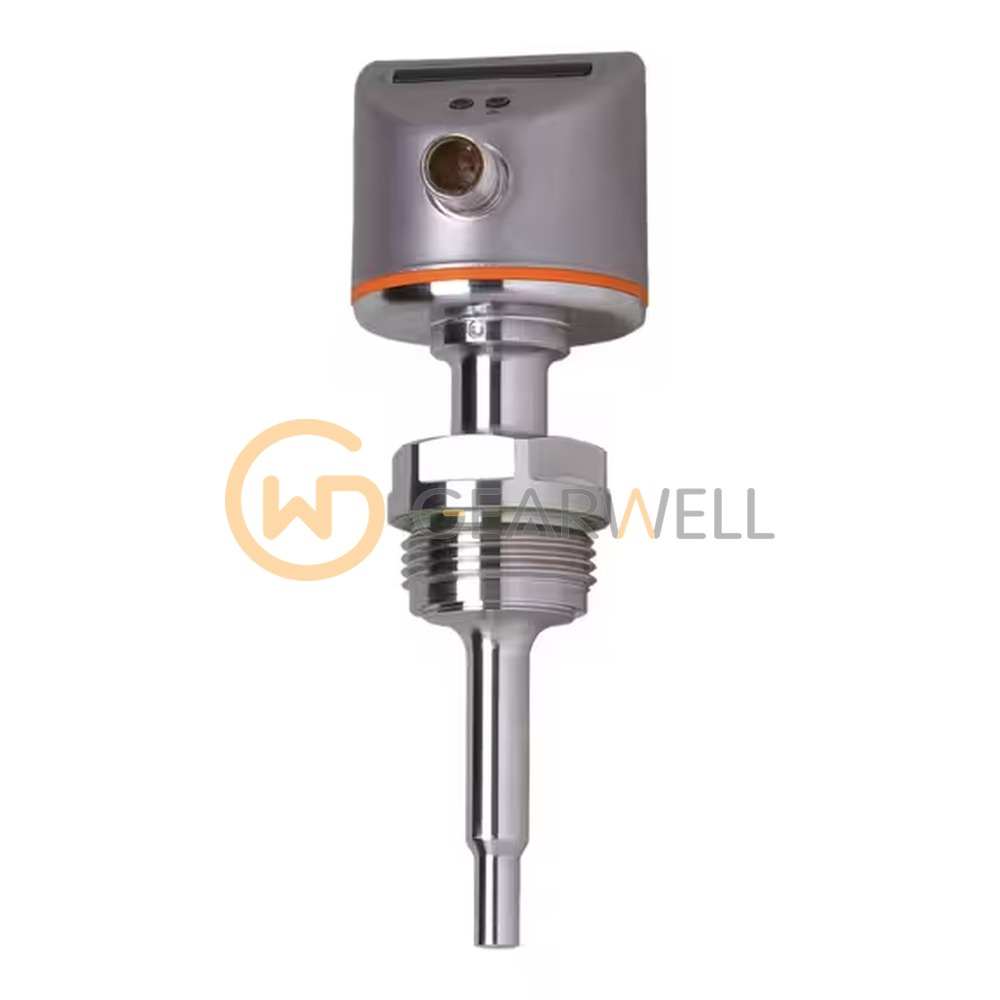

IFM SI6800 Flow Monitor

Product overview

The ifm SI6800 (SIR11ABBFPKG/US-100-IPF) is a flow monitor. The flow switch point can be set over 3…300 cm/s, with the greatest sensitivity at 3…100 cm/s and a response time of 1…10 s. The probe is 55 mm long and 7.7 mm in diameter. The process connection is a G 1 external thread with Aseptoflex Vario sealing contour, the pressure rating is 30 bar, the wetted parts are stainless steel (1.4435 / 316L) and the medium temperature range is -25…95 °C (up to 140 °C for SIP). It provides 1 switching output (PNP), with the switching output configurable as normally open or normally closed and rated at 250 mA, runs on 19…36 V DC and connects through an M12 connector (A-coded, 4 gold-plated contacts). The unit is Ø 50 mm and 154 mm long and is rated IP67 and IP69K for -25…60 °C ambient.
