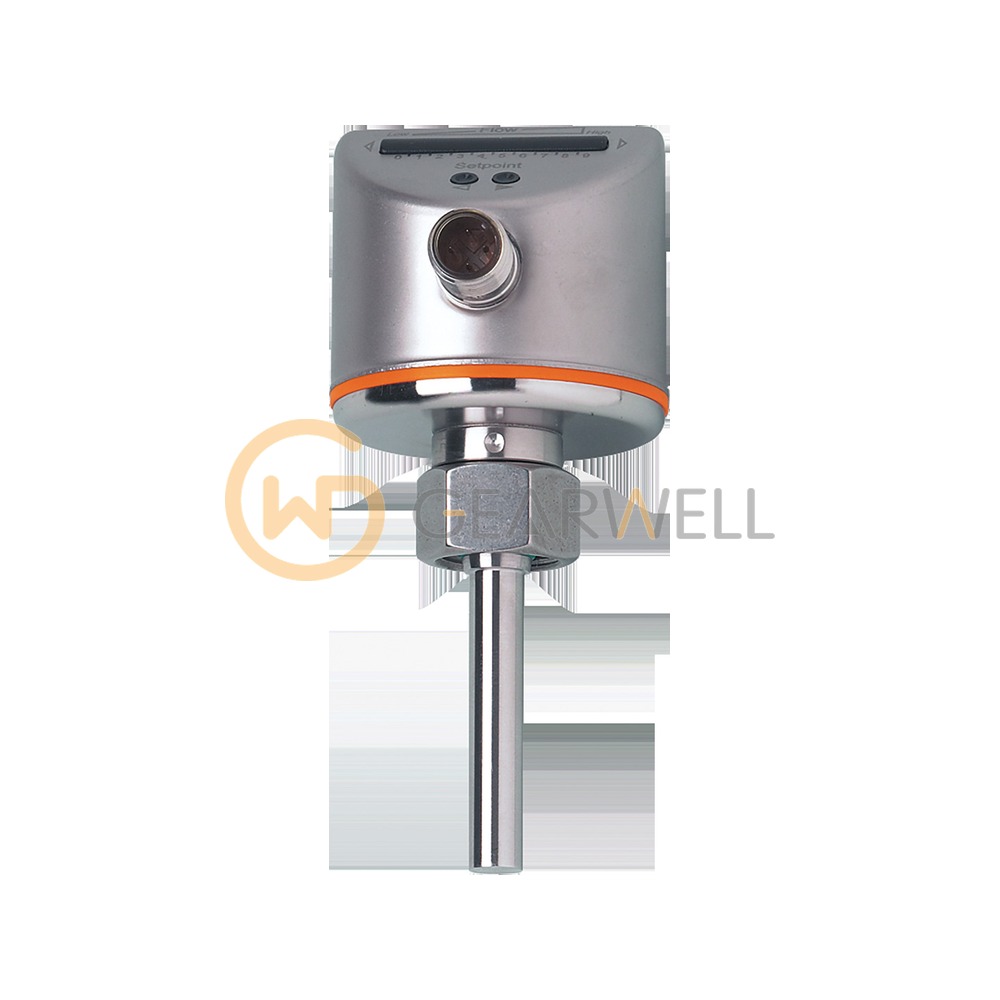

IFM SI0550 SI flow monitors Flow monitor
- Brand
- IFM
- Model
- SI0550
- GEARWELL SKU
- GWP-000012129
- Category
- Pressure, Flow & Temperature
Key specifications
- Output signal
- switching signal
- Setting range
- 3...300 cm/s
- Output function
- normally open / closed; (configurable)
- Pressure rating
- 300 bar / 30 MPa
- Electrical design
- PNP
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The ifm SI0550 (SID10ADBFPKG/US-100) is a flow monitor. The flow switch point can be set over 3…300 cm/s, with the greatest sensitivity at 3…100 cm/s and a response time of < 1 s. The probe is 45 mm long and 8.2 mm in diameter. The process connection is an M18 x 1.5 internal thread, the pressure rating is 300 bar, the wetted parts are stainless steel (1.4404 / 316L) and FKM O-ring (80 Shore A) and the medium temperature range is -25…80 °C. It provides 1 switching output (PNP), with the switching output configurable as normally open or normally closed and rated at 250 mA, runs on 19…36 V DC and connects through an M12 connector (A-coded, 4 contacts). The unit is Ø 50 mm and 113 mm long and is rated IP67 for -25…80 °C ambient.
Technical reference
| Product name | IFM SI0550 SI flow monitors Flow monitor |
|---|---|
| Brand | IFM |
| Model | SI0550 |
| Category | Pressure, Flow & Temperature |
| Output signal | switching signal |
| Setting range | 3...300 cm/s |
| Output function | normally open / closed; (configurable) |
| Pressure rating | 300 bar / 30 MPa |
| Electrical design | PNP |
| Operating voltage | 19...36 DC V |
| Medium temperature | -25...80 °C |
| Number of digital outputs | 1 |
