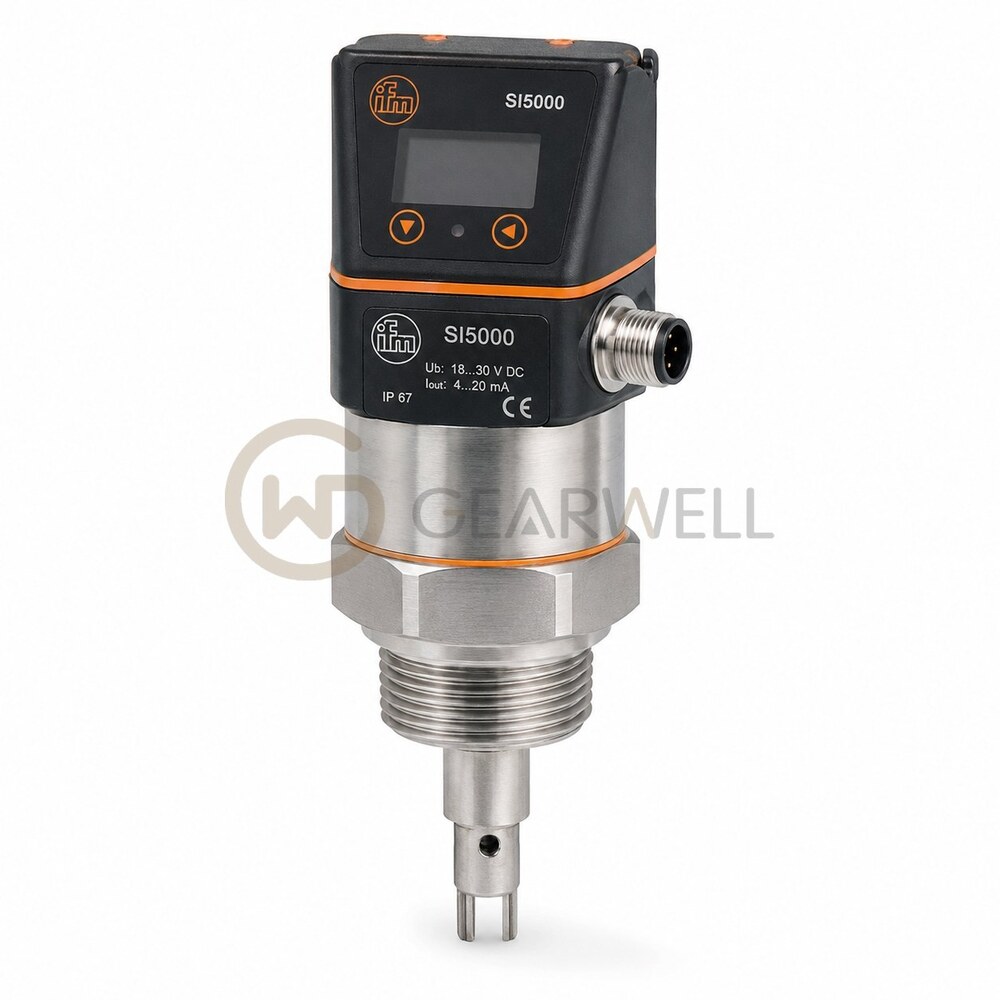

IFM SI5000 Flow Monitor
- Brand
- IFM
- Model
- SI5000
- GEARWELL SKU
- GWP-000002678
- Category
- Industrial Automation Parts
Key specifications
- Protection
- IP 67
- Product type
- Flow monitor
- Output signal
- switching signal
- Output function
- normally open / closed; (configurable)
- Electrical design
- PNP
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The ifm SI5000 (SID10ABBFPKG/US-100) is a flow monitor for liquids and gases. The flow switch point can be set over 3…300 cm/s, with the greatest sensitivity at 3…100 cm/s and a response time of 1…10 s. The probe is 45 mm long and 8.2 mm in diameter. The process connection is an M18 x 1.5 internal thread, the pressure rating is 30 bar, the wetted parts are stainless steel (1.4404 / 316L) and FKM O-ring (80 Shore A) and the medium temperature range is -25…80 °C. It provides 1 switching output (PNP), with the switching output configurable as normally open or normally closed and rated at 250 mA, runs on 19…36 V DC and connects through an M12 connector (A-coded, 4 contacts). The unit is Ø 50 mm and 113 mm long and is rated IP67 for -25…80 °C ambient.
Technical reference
| Product name | IFM SI5000 Flow Monitor |
|---|---|
| Brand | IFM |
| Model | SI5000 |
| Category | Industrial Automation Parts |
| Protection | IP 67 |
| Product type | Flow monitor |
| Output signal | switching signal |
| Output function | normally open / closed; (configurable) |
| Electrical design | PNP |
| Operating voltage | 19...36 V DC |
| Process connection | threaded connection M18 x 1,5 Internal thread |
| Current consumption | < 60 mA |
