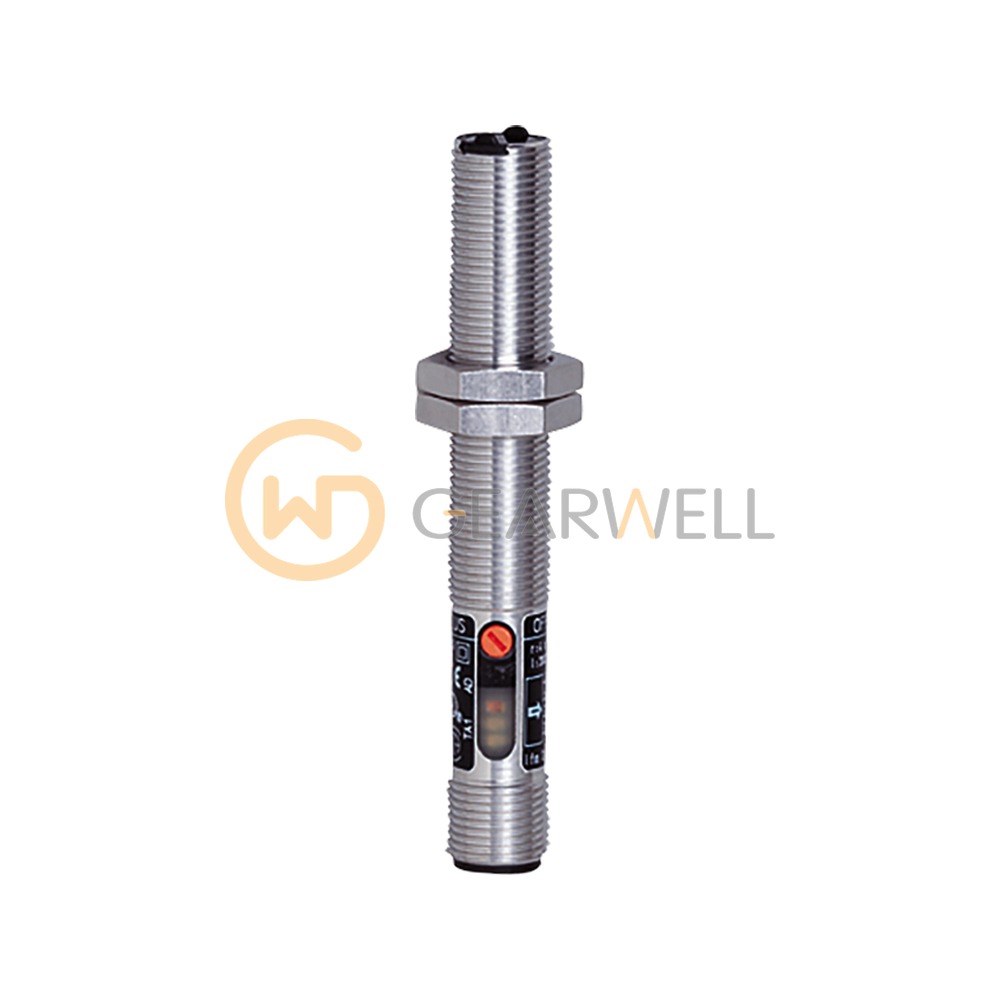

IFM OF5012 OFT-FPKG/US-100 Diffuse reflection sensor
- Brand
- IFM
- Model
- OF5012
- GEARWELL SKU
- GWP-000012459
- Category
- Proximity & Photoelectric Sensors
Key specifications
- Range
- 1...200; (white paper 200 x 200 mm) mm
- Housing
- Threaded type
- Type of light
- Infrared light
- Output function
- light-on/dark-on mode; (programmable)
- Electrical design
- PNP
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The ifm OF5012 (OFT-FPKG/US-100) is a diffuse reflection sensor in an M12 x 1 threaded housing 74 mm long. ifm specifies a range of 1…200 mm on white paper 200 x 200 mm. It works with infrared light (880 nm). The light spot is at most 92 mm in diameter at maximum range. It has 1 PNP switching output. The switching output is programmable for light-on or dark-on mode, switches at up to 320 Hz and carries up to 200 mA. It runs on 10…36 V DC and connects through an M12 connector (A-coded, 4 contacts). It has a brass nickel-plated housing and a PMMA front lens and is rated IP65 for -25…60 °C ambient.
Technical reference
| Product name | IFM OF5012 OFT-FPKG/US-100 Diffuse reflection sensor |
|---|---|
| Brand | IFM |
| Model | OF5012 |
| Category | Proximity & Photoelectric Sensors |
| Range | 1...200; (white paper 200 x 200 mm) mm |
| Housing | Threaded type |
| Type of light | Infrared light |
| Output function | light-on/dark-on mode; (programmable) |
| Electrical design | PNP |
| Operating voltage | 10...36 DC V |
| Current consumption | < 35 mA |
| Switching frequency DC | 320 Hz |
