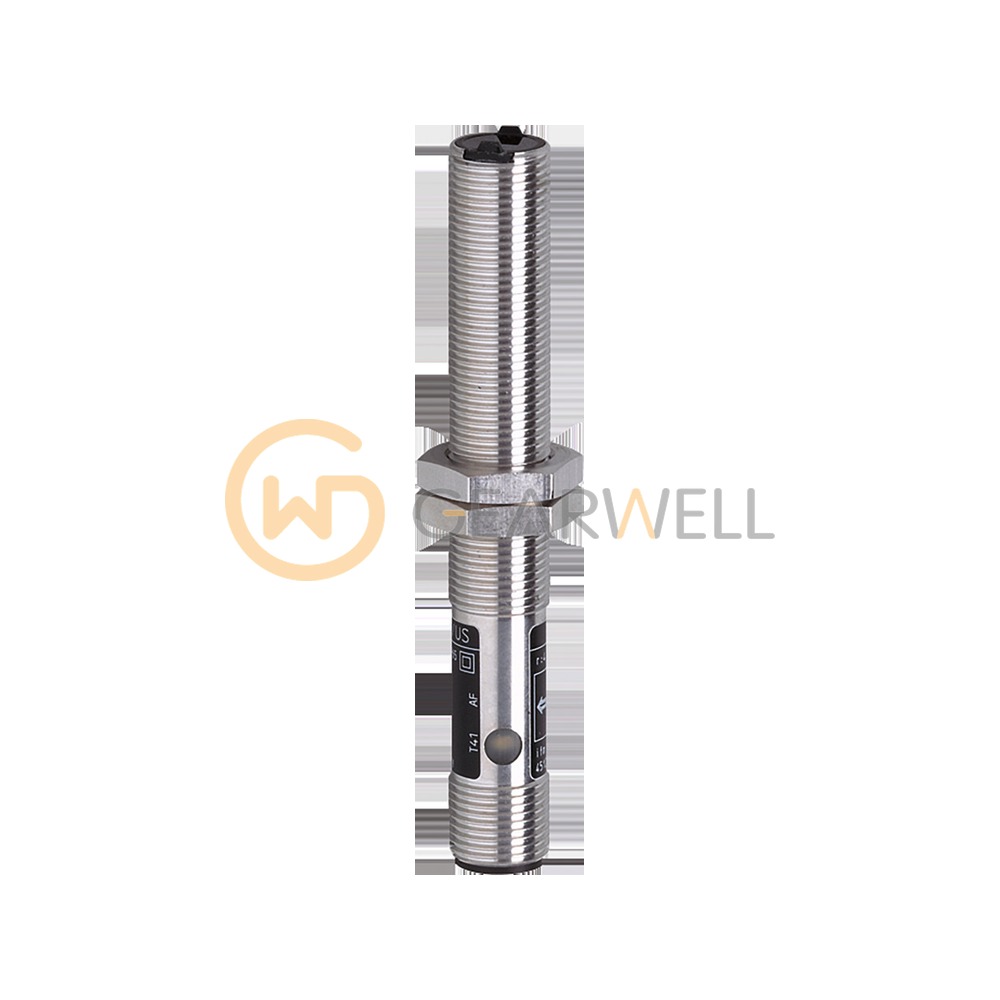

IFM OF5021 Through-beam sensor transmitter
- Brand
- IFM
- Model
- OF5021
- GEARWELL SKU
- GWP-000012122
- Category
- Proximity & Photoelectric Sensors
Key specifications
- Range
- < 4 m
- Housing
- Threaded type
- Dimensions
- M12 x 1 / L = 74 mm
- Protection
- IP 65
- Type of light
- Infrared light
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The ifm OF5021 (OFS-OOKG/US-100) is a through-beam sensor transmitter in an M12 x 1 threaded housing 74 mm long. ifm specifies a range of up to 4 m. It works with infrared light (880 nm). The light spot is at most 700 mm in diameter at maximum range. As the transmitter of a through-beam pair it has no switching output; it runs on 10…36 V DC and connects through an M12 connector (A-coded, 4 contacts). It has a brass white bronze coated housing and a PMMA front lens and is rated IP65 for -25…60 °C ambient.
Technical reference
| Product name | IFM OF5021 Through-beam sensor transmitter |
|---|---|
| Brand | IFM |
| Model | OF5021 |
| Category | Proximity & Photoelectric Sensors |
| Range | < 4 m |
| Housing | Threaded type |
| Dimensions | M12 x 1 / L = 74 mm |
| Protection | IP 65 |
| Type of light | Infrared light |
| Operating voltage | 10...36 DC V |
| Ambient temperature | -25...60 °C |
