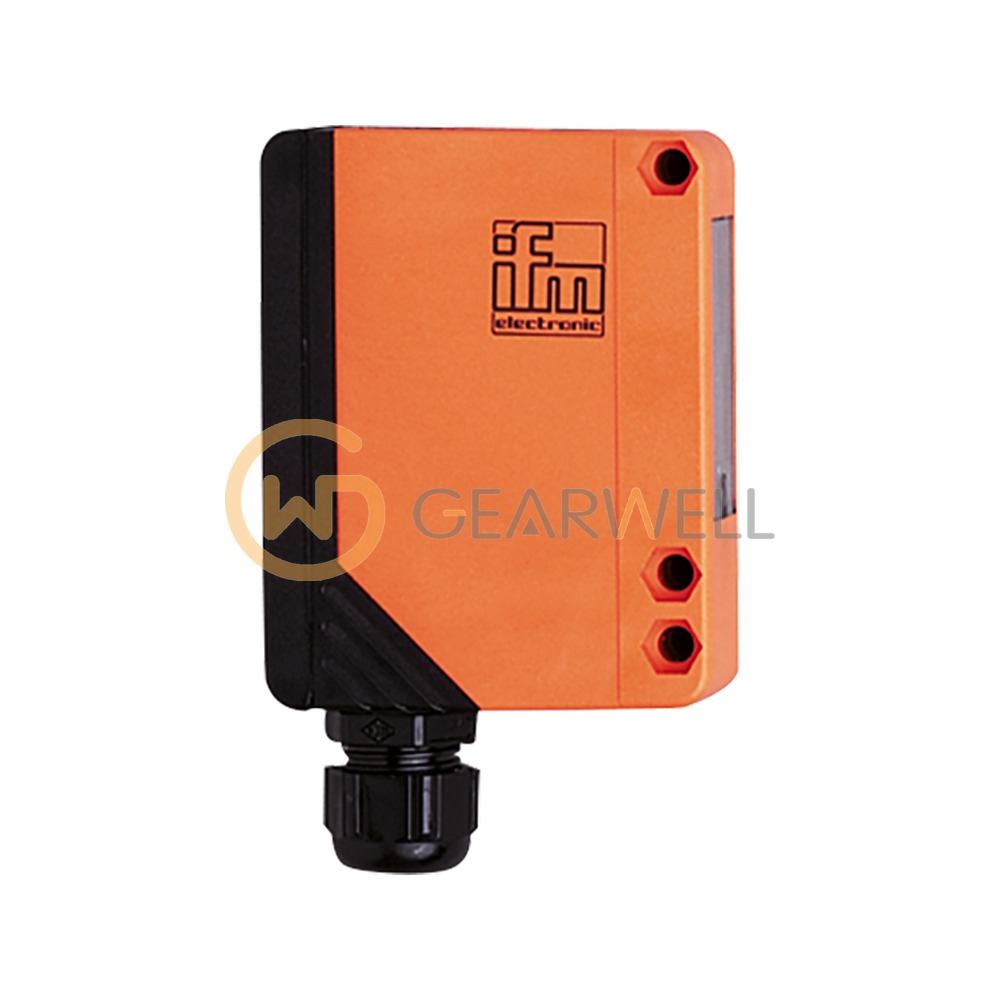

IFM OA0107 OAP-FKOA/T Retro-reflective sensor
- Brand
- IFM
- Model
- OA0107
- GEARWELL SKU
- GWP-000012458
- Category
- Proximity & Photoelectric Sensors
Key specifications
- Housing
- rectangular
- Dimensions
- 90 x 30 x 70 mm
- Protection
- IP 65
- Type of light
- red light
- Output function
- light-on/dark-on mode; (programmable)
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The ifm OA0107 (OAP-FKOA/T) is a retro-reflective sensor in a rectangular housing measuring 90 x 30 x 70 mm. ifm specifies a range of 0.2…8 m with prismatic reflector Ø 80 E20005. It works with red light (660 nm) and has a polarization filter. The light spot is at most 420 mm in diameter at maximum range. It has a relay output. The relay output is programmable for light-on or dark-on mode and has a contact rating of 250 V AC / 3 A / 360 VA, 125 V DC / 3 A / 30 W. It runs on 20…250 V AC/DC and connects through terminals up to 1.5 mm² (cable gland M16 x 1.5, cable sheath Ø 4.5…10 mm). It has a PPO modified housing and a PMMA front lens and is rated IP65 for -25…60 °C ambient.
Technical reference
| Product name | IFM OA0107 OAP-FKOA/T Retro-reflective sensor |
|---|---|
| Brand | IFM |
| Model | OA0107 |
| Category | Proximity & Photoelectric Sensors |
| Housing | rectangular |
| Dimensions | 90 x 30 x 70 mm |
| Protection | IP 65 |
| Type of light | red light |
| Output function | light-on/dark-on mode; (programmable) |
| Electrical design | Relay |
| Operating voltage | 20...250 AC/DC V |
| Ambient temperature | -25...60 °C |
