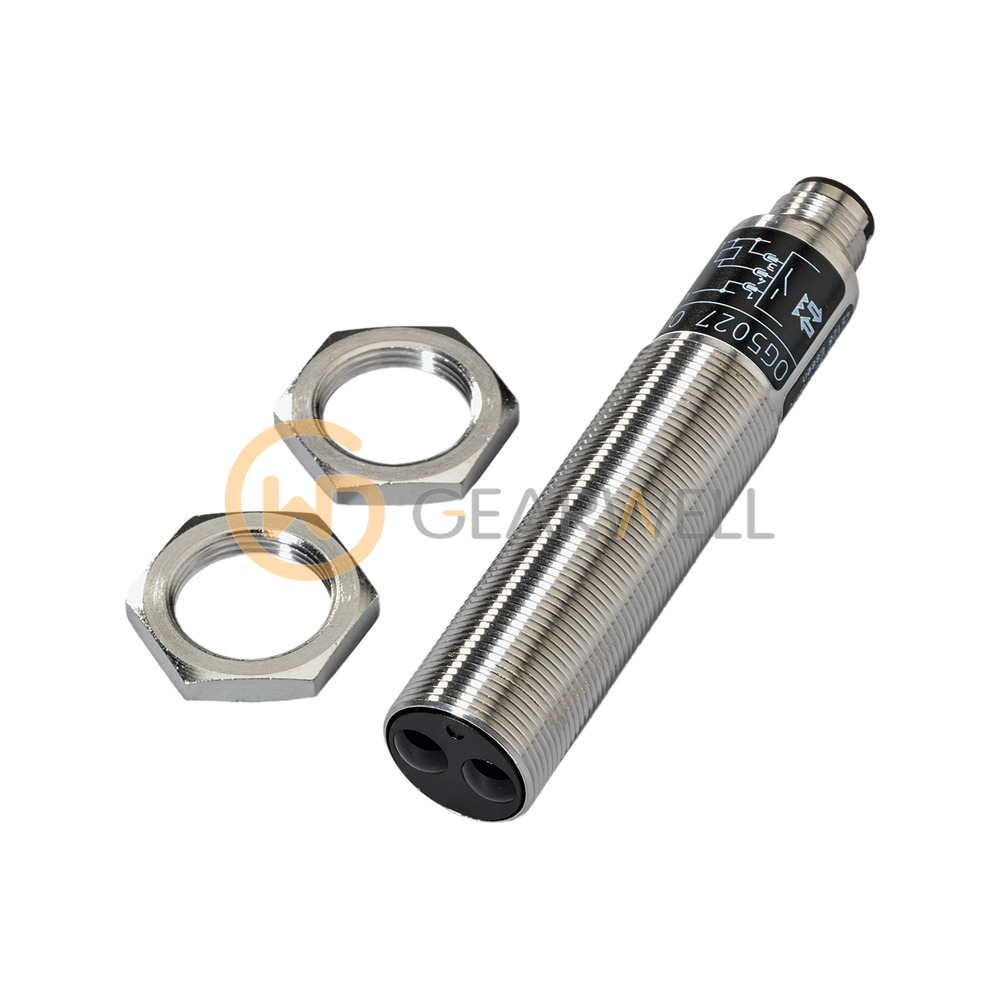

IFM OG5027 OGR-DPKG/US-100-DPS Retro-reflective Sensor
- Brand
- IFM
- Model
- OG5027
- GEARWELL SKU
- GWP-000009373
- Category
- Proximity & Photoelectric Sensors
Key specifications
- Dimensions
- M18 x 1 / L = 90 mm
- Protection
- IP 65
- Output function
- dark-on mode
- Electrical design
- PNP
- Operating voltage
- 10...55 DC V
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The ifm OG5027 (OGR-DPKG/US-100-DPS) is a retro-reflective sensor in an M18 x 1 threaded housing 90 mm long. ifm specifies a range of 3 m with prismatic reflector Ø 80 E20005. It works with infrared light (880 nm). It has 1 PNP switching output. The switching output works in dark-on mode, switches at up to 160 Hz and carries up to 250 mA. It runs on 10…55 V DC and connects through an M12 connector (A-coded, 4 contacts). It has a brass nickel-plated housing and a PMMA front lens and is rated IP65 for -25…80 °C ambient.
Technical reference
| Product name | IFM OG5027 OGR-DPKG/US-100-DPS Retro-reflective Sensor |
|---|---|
| Brand | IFM |
| Model | OG5027 |
| Category | Proximity & Photoelectric Sensors |
| Dimensions | M18 x 1 / L = 90 mm |
| Protection | IP 65 |
| Output function | dark-on mode |
| Electrical design | PNP |
| Operating voltage | 10...55 DC V |
| Ambient temperature | -25...80 °C |
| Current consumption | 10 ((24 V)) mA |
| Switching frequency DC | 160 Hz |
