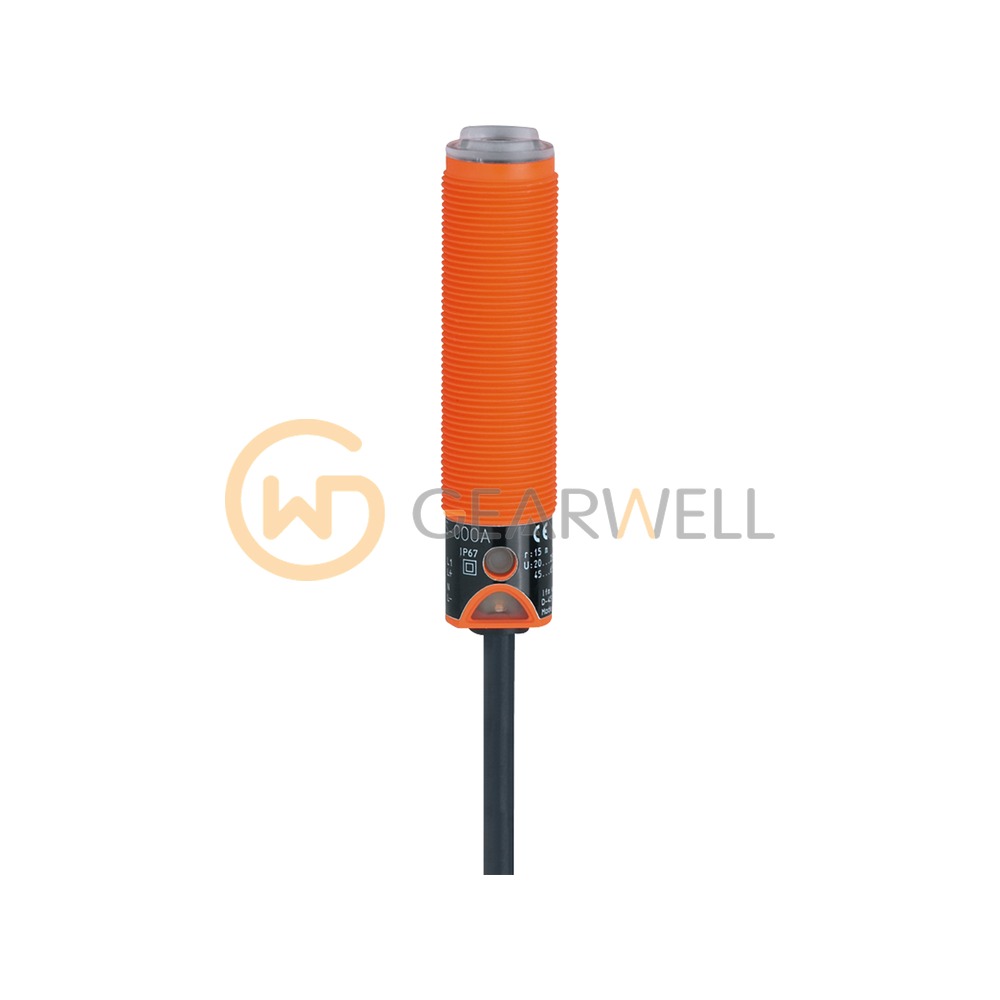

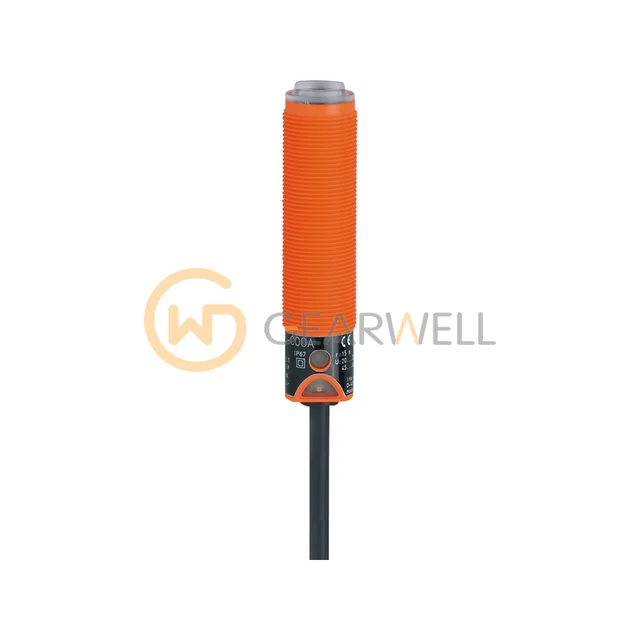

IFM OG0034 OGT-HBOA Diffuse Reflection Sensor
- Brand
- IFM
- Model
- OG0034
- GEARWELL SKU
- GWP-000009372
- Category
- Proximity & Photoelectric Sensors
Key specifications
- Range
- 1...600 (white paper 200 x 200 mm 90% remission) mm
- Housing
- threaded type
- Dimensions
- M18 x 1 / L = 78.5 mm
- Protection
- IP 67
- Output function
- light-on mode
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The ifm OG0034 (OGT-HBOA) is a diffuse reflection sensor in an M18 x 1 threaded housing 78.5 mm long. ifm specifies a range of 1…600 mm on white paper 200 x 200 mm with 90 % remission. It works with infrared light (880 nm). The light spot is at most 169 mm in diameter at maximum range. It has a switching output. The switching output works in light-on mode, switches at up to 25 Hz and carries up to 90 mA. It runs on 20…250 V AC/DC and connects through a 2 m cable (PVC, 2 x 0.5 mm²). It has a PBT housing and a PMMA front lens and is rated IP67 for -25…80 °C ambient.
Technical reference
| Product name | IFM OG0034 OGT-HBOA Diffuse Reflection Sensor |
|---|---|
| Brand | IFM |
| Model | OG0034 |
| Category | Proximity & Photoelectric Sensors |
| Range | 1...600 (white paper 200 x 200 mm 90% remission) mm |
| Housing | threaded type |
| Dimensions | M18 x 1 / L = 78.5 mm |
| Protection | IP 67 |
| Output function | light-on mode |
| Operating voltage | 20...250 AC/DC V |
| Ambient temperature | -25...80 °C |
| Switching frequency DC | 25 Hz |
