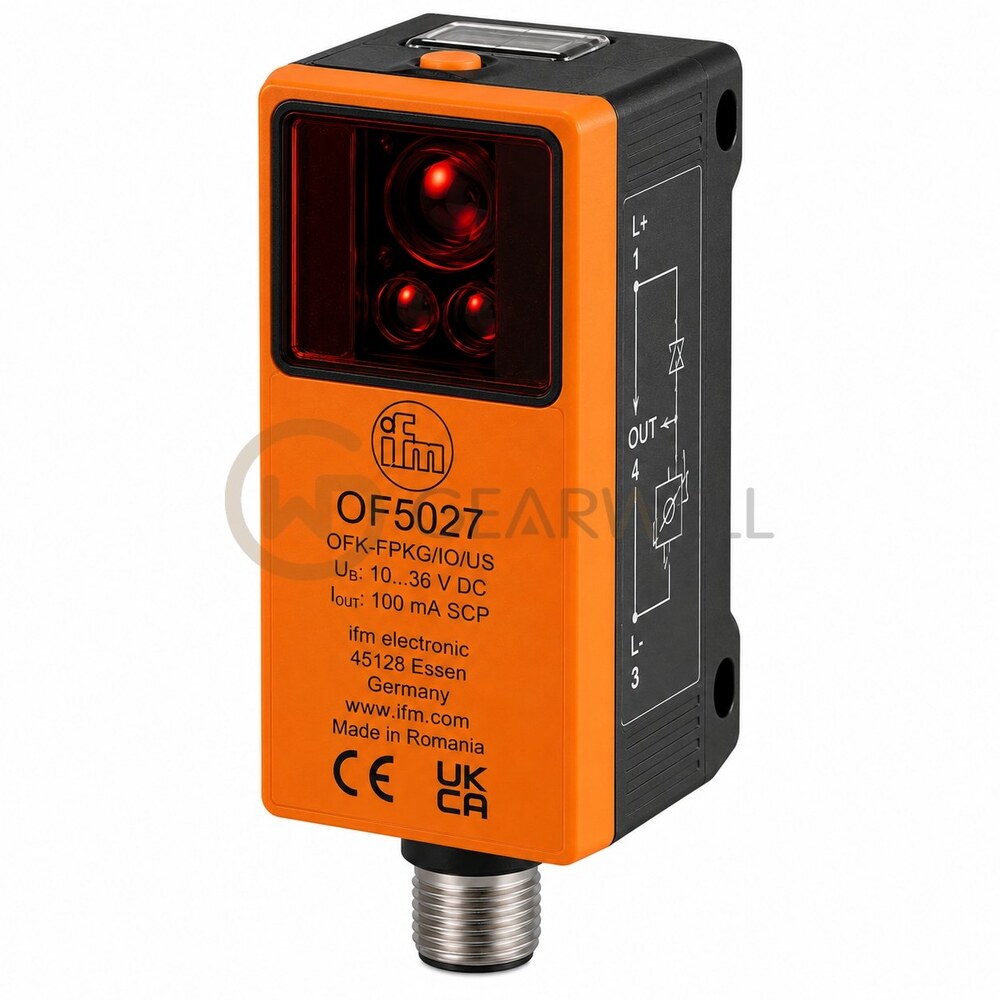

IFM OF5027 Diffuse Reflection Sensor
- Brand
- IFM
- Model
- OF5027
- GEARWELL SKU
- GWP-000003051
- Category
- Industrial Automation Parts
Key specifications
- Dimensions
- M12 x 1 / L = 74 mm
- Protection
- IP 65
- Product type
- Diffuse reflection sensor
- Output function
- light-on/dark-on mode; (programmable)
- Electrical design
- PNP
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The ifm OF5027 (OFB-FPKG/US-100) is a diffuse reflection sensor in an M12 x 1 threaded housing 74 mm long. ifm specifies a range of 1…400 mm on white paper 200 x 200 mm. It works with infrared light (880 nm). The light spot is at most 185 mm in diameter at maximum range. It has 1 PNP switching output. The switching output is programmable for light-on or dark-on mode, switches at up to 320 Hz and carries up to 200 mA. It runs on 10…36 V DC and connects through an M12 connector (A-coded, 4 contacts). It has a brass white bronze coated housing and a PMMA front lens and is rated IP65 for -25…60 °C ambient.
Technical reference
| Product name | IFM OF5027 Diffuse Reflection Sensor |
|---|---|
| Brand | IFM |
| Model | OF5027 |
| Category | Industrial Automation Parts |
| Dimensions | M12 x 1 / L = 74 mm |
| Protection | IP 65 |
| Product type | Diffuse reflection sensor |
| Output function | light-on/dark-on mode; (programmable) |
| Electrical design | PNP |
| Operating voltage | 10...36 V DC |
| Ambient temperature | -25...60 °C |
| Current consumption | < 35 mA |
