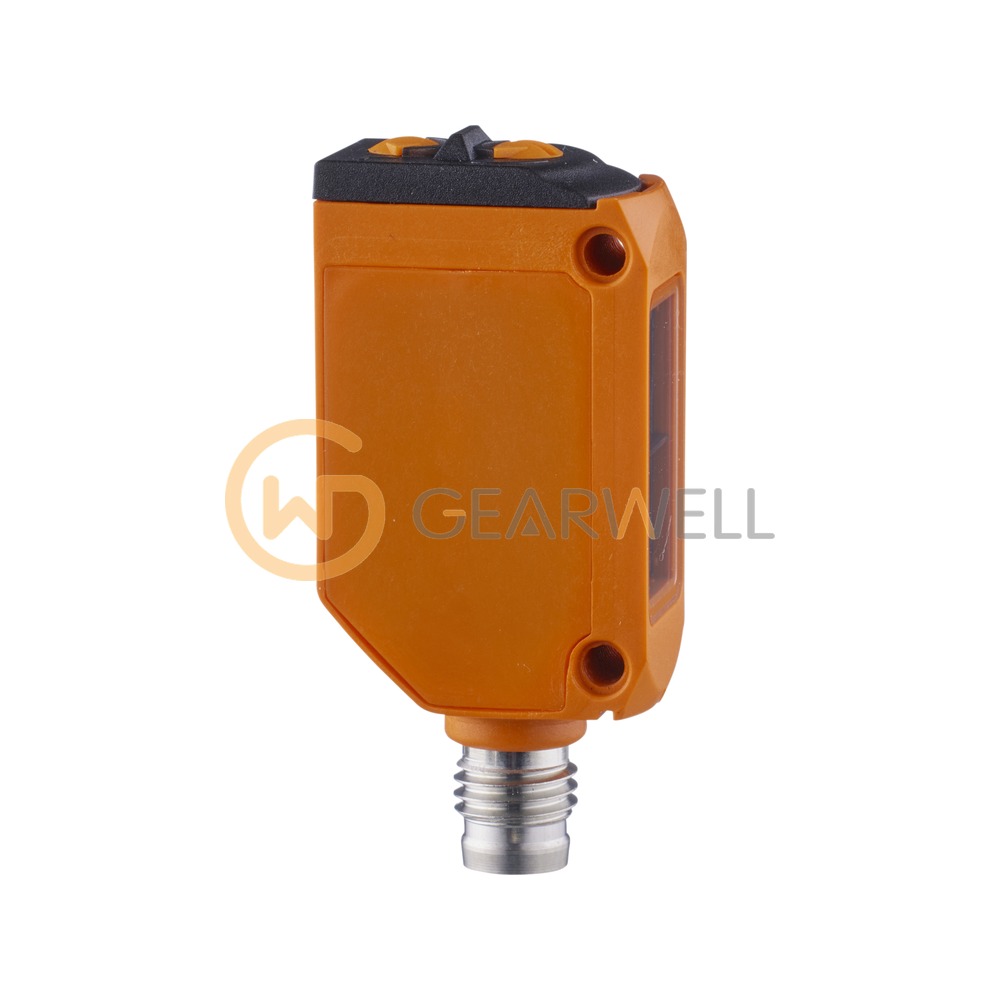

IFM O6T202 O6T-FPKG/AS/3P Diffuse Reflection Sensor
- Brand
- IFM
- Model
- O6T202
- GEARWELL SKU
- GWP-000008411
- Category
- Proximity & Photoelectric Sensors
Key specifications
- Range
- 5...500 (white paper 200 x 200 mm 90% remission) mm
- Dimensions
- 46 x 13 x 21 mm
- Protection
- IP 65; IP 67
- Output function
- light-on/dark-on mode (selectable)
- Electrical design
- PNP
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The ifm O6T202 (O6T-FPKG/AS/3P) is a diffuse reflection sensor in a rectangular housing measuring 46 x 13 x 21 mm. ifm specifies a range of 5…500 mm on white paper 200 x 200 mm with 90 % remission. The switching distance can be set within 100…500 mm. It works with red light (633 nm). The light spot is at most 15 mm in diameter at maximum range. It has 1 PNP switching output. The switching output is selectable for light-on or dark-on mode, switches at up to 1000 Hz and carries up to 100 mA. It runs on 10…30 V DC and connects through an M8 connector (A-coded, 3 contacts). It has an orange ABS housing and a PMMA front lens and is rated IP65 and IP67 for -25…60 °C ambient.
Technical reference
| Product name | IFM O6T202 O6T-FPKG/AS/3P Diffuse Reflection Sensor |
|---|---|
| Brand | IFM |
| Model | O6T202 |
| Category | Proximity & Photoelectric Sensors |
| Range | 5...500 (white paper 200 x 200 mm 90% remission) mm |
| Dimensions | 46 x 13 x 21 mm |
| Protection | IP 65; IP 67 |
| Output function | light-on/dark-on mode (selectable) |
| Electrical design | PNP |
| Operating voltage | 10...30 DC V |
| Current consumption | 16 ((24 V)) mA |
| Switching frequency DC | 1000 Hz |
