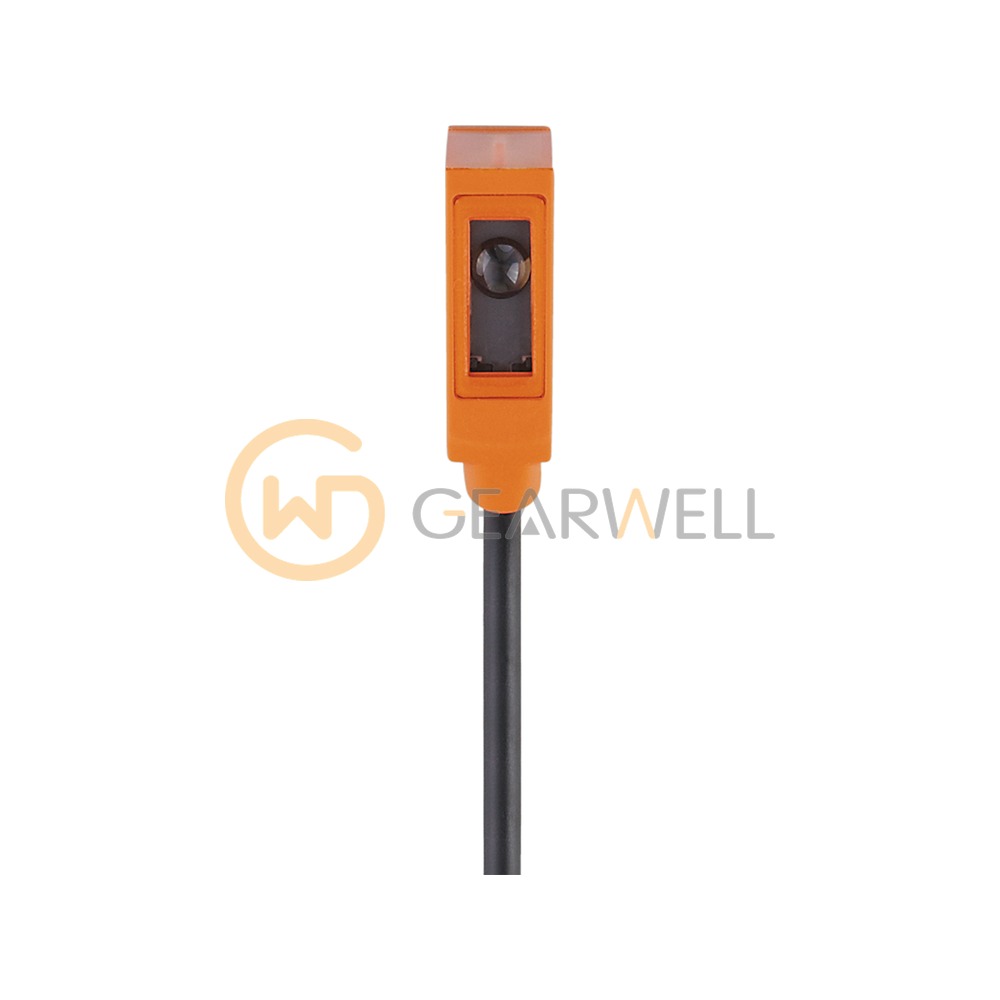

IFM O8S200 O8 Through-beam sensor (transmitter)
- Brand
- IFM
- Model
- O8S200
- GEARWELL SKU
- GWP-000012761
- Category
- Proximity & Photoelectric Sensors
Key specifications
- Range
- < 3 m
- Dimensions
- 28.1 x 8.1 x 14.4 mm
- Protection
- IP 65; IP 67
- Sensor type
- Through-beam sensor; transmitter
- Operating voltage
- 10...30 V DC
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The ifm O8S200 (O8S-OOKG/2,0M) is a through-beam sensor transmitter in a rectangular housing measuring 28.1 x 8.1 x 14.4 mm. ifm specifies a range of up to 3 m. It works with red light (633 nm). The light spot is at most 200 mm in diameter at maximum range. As the transmitter of a through-beam pair it has no switching output; it runs on 10…30 V DC and connects through a 2 m cable (PVC, black, Ø 2.9 mm, 2 x 0.08 mm²). It has an ABS housing and a PMMA front lens and is rated IP65 and IP67 for -25…60 °C ambient.
Technical reference
| Product name | IFM O8S200 O8 Through-beam sensor (transmitter) |
|---|---|
| Brand | IFM |
| Model | O8S200 |
| Category | Proximity & Photoelectric Sensors |
| Range | < 3 m |
| Dimensions | 28.1 x 8.1 x 14.4 mm |
| Protection | IP 65; IP 67 |
| Sensor type | Through-beam sensor; transmitter |
| Operating voltage | 10...30 V DC |
| Ambient temperature | -25...60 °C |
| Current consumption | 12 (at 24 V) mA |
| Type of light / wavelength | Red light, 633 nm |
