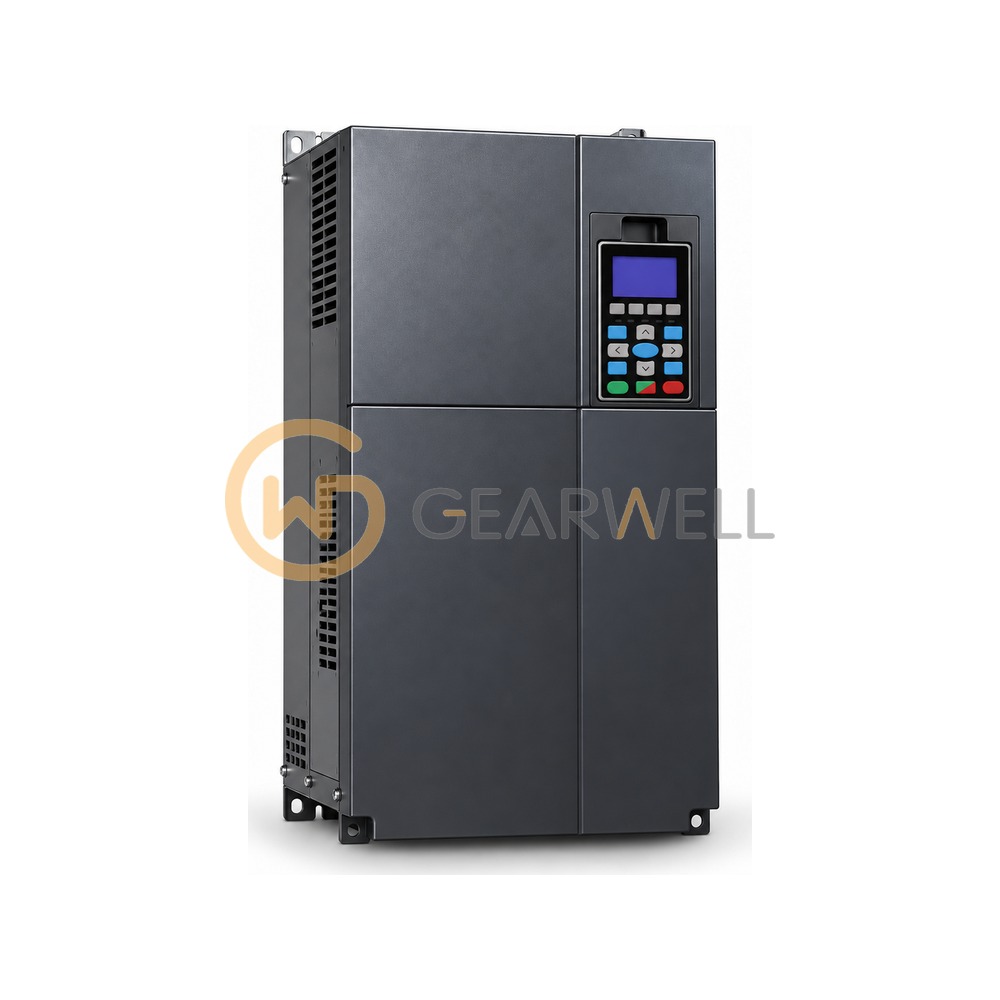

DELTA VFD1100C43A-21 C2000 / C2000 Plus series AC Motor Drive
- Brand
- DELTA
- Model
- VFD1100C43A-21
- GEARWELL SKU
- GWP-000012569
- Category
- Motors & Gearboxes
Key specifications
- Frame
- E2; Dimensions: W 370.0 x H 715.8 x D 300.0 mm
- Weight
- 460 VAC models 64.8 ± 1.5 kg
- Efficiency
- 98.2% (Frames E, F, G, H); cooling: forced air-cooling
- Protection
- IP20 / NEMA 1 (-21) ; EMC-COP01 built-in for VFDxxxC43A-21 frames D0~H
- Heavy duty (HD)
- motor power 110 kW / 150 HP, rated output current 220 A, rated input current 207 A, power supply capacity 172.1 kVA
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The Delta VFD1100C43A-21 is a C2000 Plus series vector control AC motor drive for a 460 V 3-phase supply (380 to 480 VAC, 50/60 Hz), rated 220 A output current in heavy duty for motors up to 110 kW (150 HP), built in frame E. In super heavy duty it delivers 180 A for 90 kW (125 HP) motors, and heavy-duty overload is 150% of rated current for 1 minute in every 5 minutes and 180% for 3 seconds in every 30 seconds. A DC reactor is built in, while the braking chopper and EMC filter are optional. The -21 suffix marks an IP20 version with NEMA 1 protection, supplied with a standard conduit box. Version letter A denotes a wall-mount unit, and the drive is forced-air cooled.
Technical reference
| Product name | DELTA VFD1100C43A-21 C2000 / C2000 Plus series AC Motor Drive |
|---|---|
| Brand | DELTA |
| Model | VFD1100C43A-21 |
| Category | Motors & Gearboxes |
| Frame | E2; Dimensions: W 370.0 x H 715.8 x D 300.0 mm |
| Weight | 460 VAC models 64.8 ± 1.5 kg |
| Efficiency | 98.2% (Frames E, F, G, H); cooling: forced air-cooling |
| Protection | IP20 / NEMA 1 (-21) ; EMC-COP01 built-in for VFDxxxC43A-21 frames D0~H |
| Heavy duty (HD) | motor power 110 kW / 150 HP, rated output current 220 A, rated input current 207 A, power supply capacity 172.1 kVA |
| Braking chopper | optional for frames D0, D, E, F, G, H; DC reactor: built-in for frames D0~H |
| Rated input voltage | 3Ø, 380 ~ 480 VAC (-15% ~ +10%), 50 / 60 Hz |
| Super heavy duty (SHD) | motor power 90 kW / 125 HP, rated output current 180 A, rated input current 167 A, power supply capacity 138.8 kVA |
