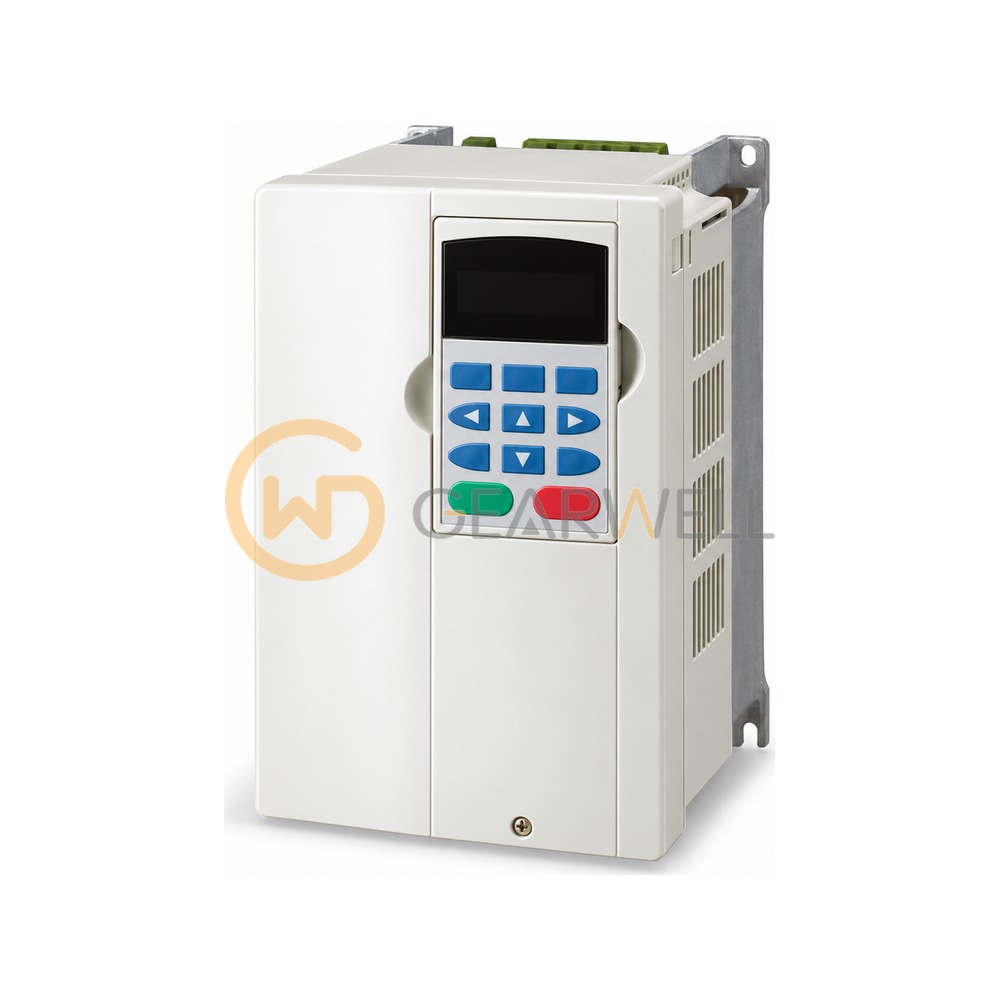

DELTA VFD075V43A-2 VFD-VE series AC Motor Drive
- Brand
- DELTA
- Model
- VFD075V43A-2
- GEARWELL SKU
- GWP-000012567
- Category
- Motors & Gearboxes
Key specifications
- Weight
- 10 kg
- Rated voltage
- 3-phase 380 to 480 V; voltage tolerance ± 10% (342~528 V); frequency tolerance ± 5% (47~63 Hz)
- Voltage class
- 460V; max. applicable motor output 7.5 kW / 10 hp
- Output frequency
- 0.00~600.00 Hz; cooling: fan cooled
- Rated input current
- 17 A
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsTechnical reference
| Product name | DELTA VFD075V43A-2 VFD-VE series AC Motor Drive |
|---|---|
| Brand | DELTA |
| Model | VFD075V43A-2 |
| Category | Motors & Gearboxes |
| Weight | 10 kg |
| Rated voltage | 3-phase 380 to 480 V; voltage tolerance ± 10% (342~528 V); frequency tolerance ± 5% (47~63 Hz) |
| Voltage class | 460V; max. applicable motor output 7.5 kW / 10 hp |
| Output frequency | 0.00~600.00 Hz; cooling: fan cooled |
| Rated input current | 17 A |
| Rated output current | 18 A (constant torque), 22 A (variable torque) |
| Rated output capacity | 14 kVA |
