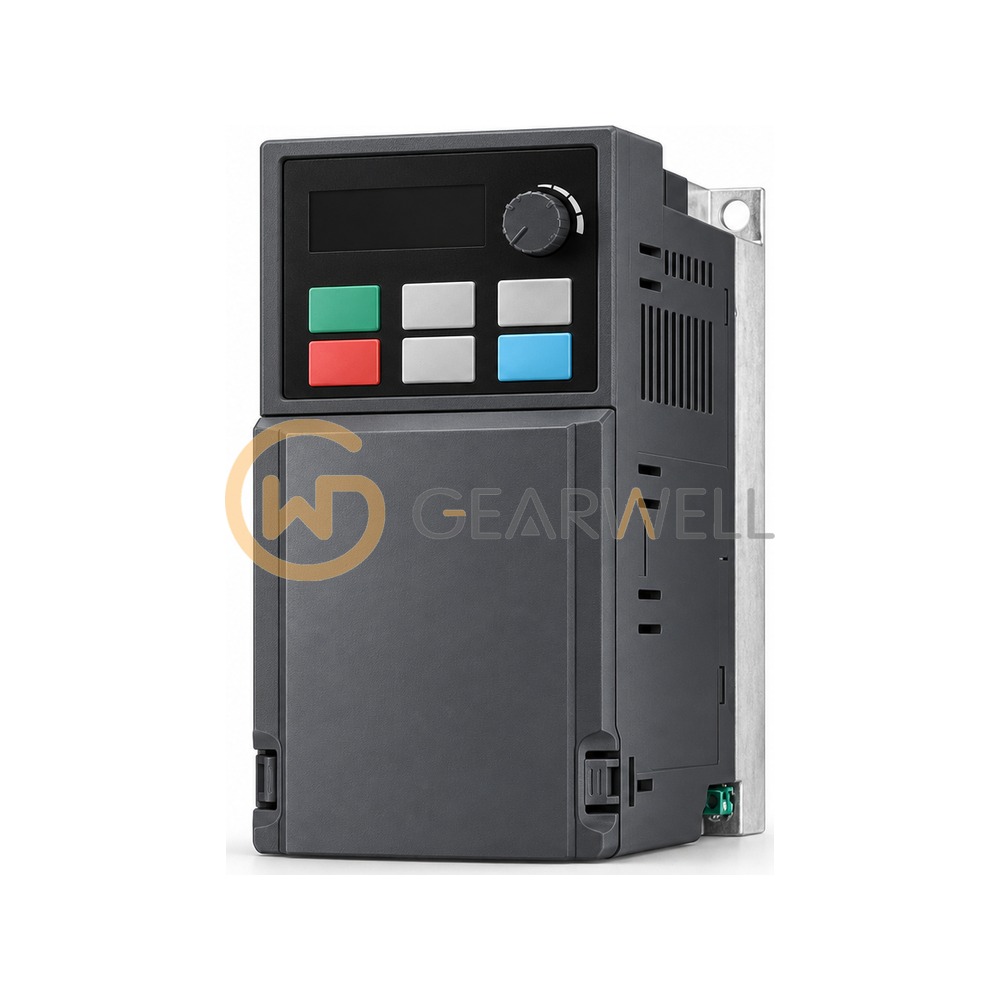

DELTA VFD0A8ME21ANNAA ME300 series AC Motor Drive
- Brand
- DELTA
- Model
- VFD0A8ME21ANNAA
- GEARWELL SKU
- GWP-000012568
- Category
- Motors & Gearboxes
Key specifications
- Frame size
- A (dimension frame A1: W 68.0 x H 128.0 x D 78.0 mm)
- Carrier frequency
- 2 ~ 15 kHz (default 4); brake chopper: built-in; cooling: natural air cooling
- Built-in EMC filter
- none (N); built-in STO: none (N); IP20 (A)
- Input voltage / frequency
- Single-phase AC, 200V~240V (-15% ~ +10%), 50 / 60Hz
- Drive rated output current
- 0.8 A (heavy duty); 1.0 A
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The Delta VFD0A8ME21ANNAA is a Delta ME300 series basic compact AC motor drive for 230 V single-phase supply, sized for a 0.1 kW (1/8 HP) motor. The code VFD0A8ME21ANNAA stands for a rated output current of 0.8 A in heavy duty mode (150% for 60 seconds), an IP20 enclosure, no EMC filter, no Safe Torque Off and the standard model type. It comes in frame size A, has a built-in brake chopper and a carrier frequency of 2 to 15 kHz. ME300 drives run induction and permanent magnet motors with V/F and SVC control and provide Modbus as standard.
Technical reference
| Product name | DELTA VFD0A8ME21ANNAA ME300 series AC Motor Drive |
|---|---|
| Brand | DELTA |
| Model | VFD0A8ME21ANNAA |
| Category | Motors & Gearboxes |
| Frame size | A (dimension frame A1: W 68.0 x H 128.0 x D 78.0 mm) |
| Carrier frequency | 2 ~ 15 kHz (default 4); brake chopper: built-in; cooling: natural air cooling |
| Built-in EMC filter | none (N); built-in STO: none (N); IP20 (A) |
| Input voltage / frequency | Single-phase AC, 200V~240V (-15% ~ +10%), 50 / 60Hz |
| Drive rated output current | 0.8 A (heavy duty); 1.0 A |
| Max. applicable motor capacity | 1/8 HP / 0.1 kW |
