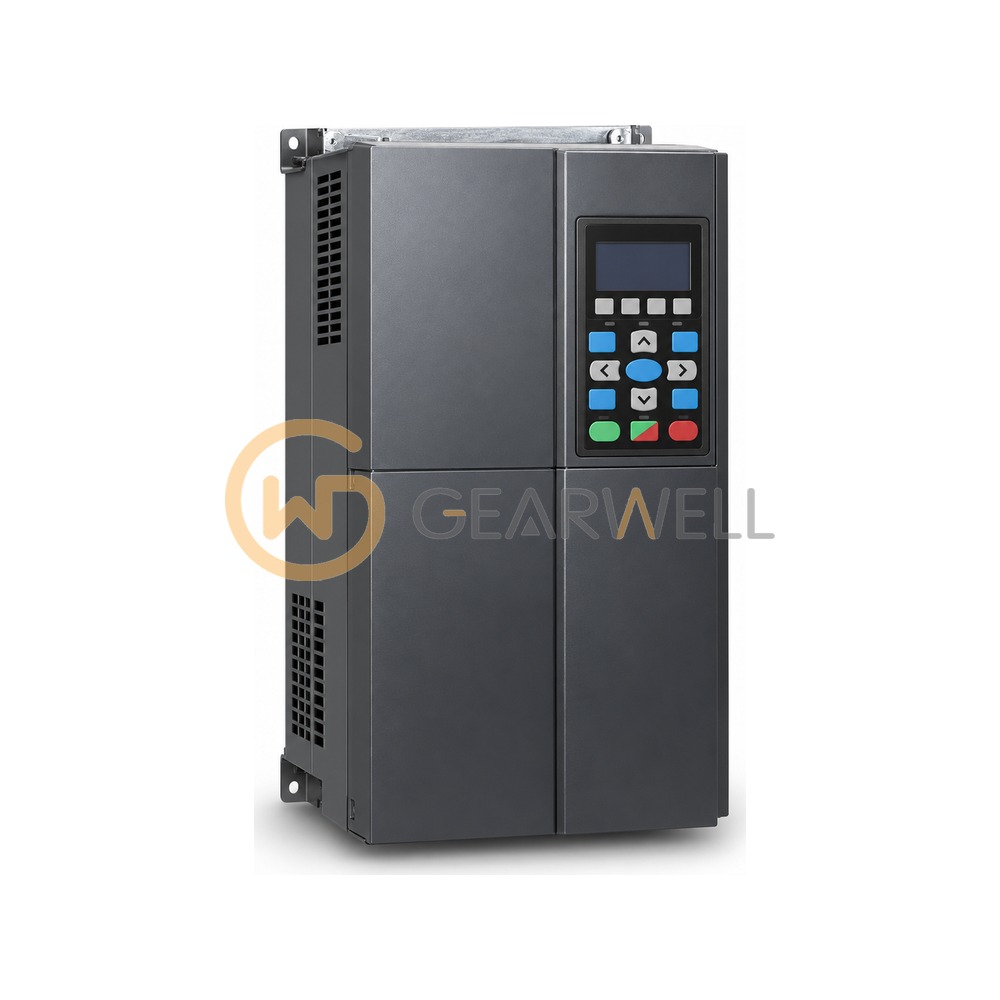

DELTA VFD110C23A-21 C2000 Plus series AC Motor Drive
- Brand
- DELTA
- Model
- VFD110C23A-21
- GEARWELL SKU
- GWP-000012571
- Category
- Motors & Gearboxes
Key specifications
- Frame
- B
- Rated input voltage
- 3Ø, 200 ~ 240 VAC (-15% ~ +10%)
- Rated input current (HD / SHD)
- 52 / 36 A
- Motor power range (Heavy Duty)
- 11 kW
- Rated output current (Heavy Duty)
- 49 A
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The Delta VFD110C23A-21 is a C2000 Plus series vector control AC motor drive for a 230 V 3-phase supply (200 to 240 VAC, 50/60 Hz), rated 49 A output current in heavy duty for motors up to 11 kW (15 HP), built in frame B. In super heavy duty it delivers 33 A for 7.5 kW (10 HP) motors, and heavy-duty overload is 150% of rated current for 1 minute in every 5 minutes and 180% for 3 seconds in every 30 seconds. A braking chopper is built in and a DC reactor is optional, as is the EMC filter. The -21 suffix marks an IP20 version with NEMA 1 protection, supplied with top cover and standard conduit plate. Version letter A denotes a wall-mount unit, and the drive is forced-air cooled.
Technical reference
| Product name | DELTA VFD110C23A-21 C2000 Plus series AC Motor Drive |
|---|---|
| Brand | DELTA |
| Model | VFD110C23A-21 |
| Category | Motors & Gearboxes |
| Frame | B |
| Rated input voltage | 3Ø, 200 ~ 240 VAC (-15% ~ +10%) |
| Rated input current (HD / SHD) | 52 / 36 A |
| Motor power range (Heavy Duty) | 11 kW |
| Rated output current (Heavy Duty) | 49 A |
| Motor power range (Super Heavy Duty) | 7.5 kW |
| Rated output current (Super Heavy Duty) | 33 A |
