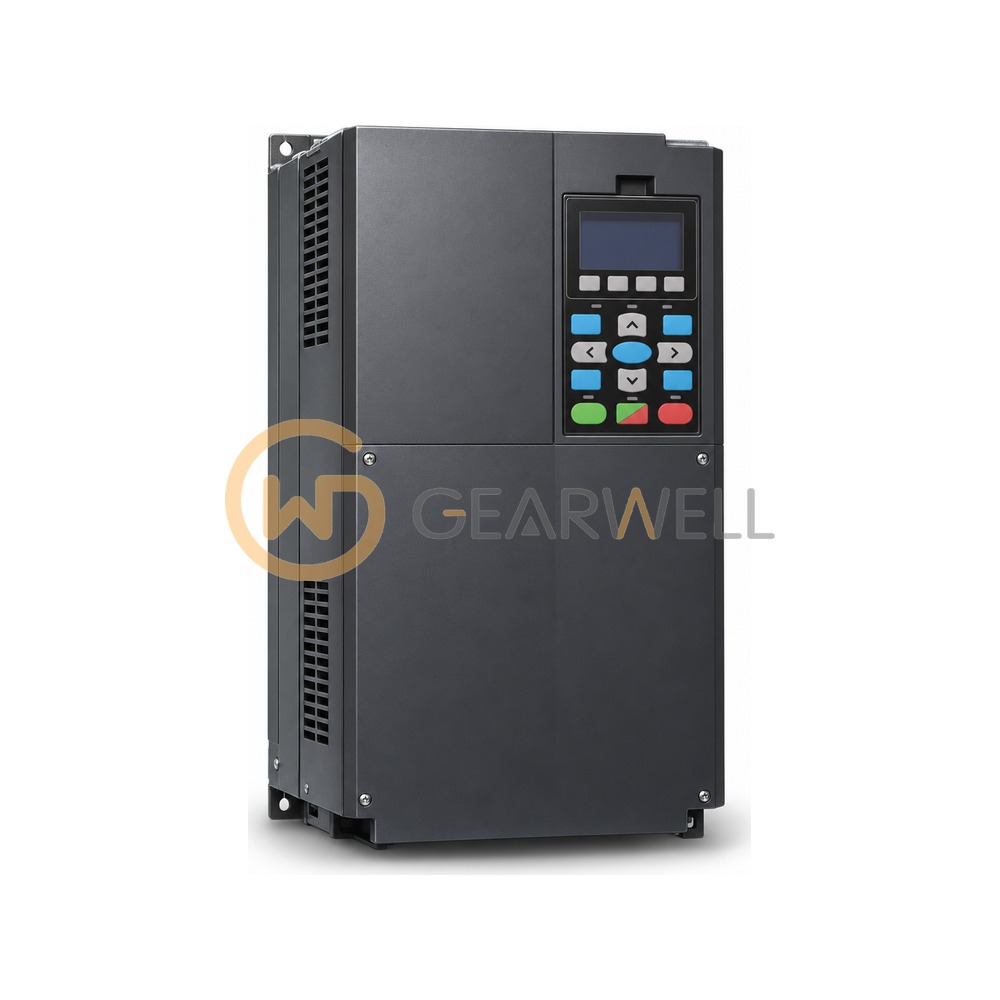

DELTA VFD110C43A C2000 series AC Motor Drive

Key specifications

EMC filter: VFDXXXC43A: Optional
Frame size: B
Rated voltage / frequency: 3-phase AC 380 V ~ 480 V ( -15% ~ +10%), 50 / 60 Hz
Rated output current (Heavy Duty): 23 A
Rated output current (Normal Duty): 24 A

This opens your email client. Send the email to submit your inquiry; this website does not store your message.

Product name	DELTA VFD110C43A C2000 series AC Motor Drive
Brand	DELTA
Model	VFD110C43A
Category	Motors & Gearboxes
EMC filter	VFDXXXC43A: Optional
Frame size	B
Rated voltage / frequency	3-phase AC 380 V ~ 480 V ( -15% ~ +10%), 50 / 60 Hz
Rated output current (Heavy Duty)	23 A
Rated output current (Normal Duty)	24 A
Applicable motor output (Normal Duty)	11 kW
Input current (Normal Duty / Heavy Duty)	26 / 25 A
