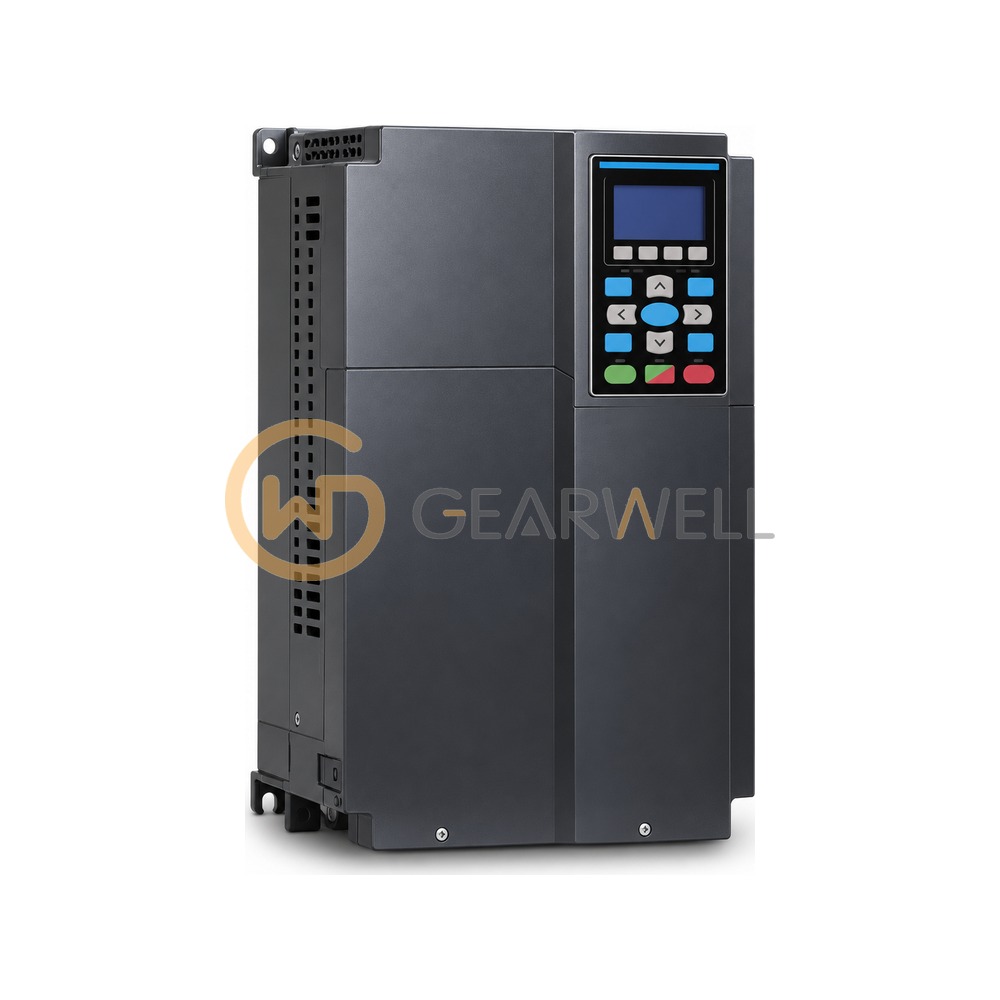

DELTA VFD1100CP43A-21 CP2000 series AC Motor Drive
- Brand
- DELTA
- Model
- VFD1100CP43A-21
- GEARWELL SKU
- GWP-000012570
- Category
- Motors & Gearboxes
Key specifications
- Weight
- 64.8 ± 1.5 kg; cooling: fan cooling; efficiency 98.2%
- Frame size
- E (E2); Dimensions (W x H x D): 370 x 715.8 x 300 mm
- Light duty
- rated output capacity 175 kVA, rated output current 220 A, applicable motor output 110 kW / 150 HP
- Normal duty
- rated output capacity 143 kVA, rated output current 180 A, applicable motor output 90 kW / 125 HP
- Input current
- 220 A (light duty), 167 A (normal duty)
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The Delta VFD1100CP43A-21 is a CP2000 series fan and pump vector control AC motor drive for a 460 V 3-phase supply (380 to 480 VAC, 50/60 Hz), rated 220 A output current in light duty for motors up to 110 kW (150 HP), built in frame E. In normal duty it delivers 180 A for 90 kW (125 HP) motors; light-duty overload is 120% of rated current for 1 minute in every 5 minutes, and normal duty adds 160% for 3 seconds in every 25 seconds. A 3% DC choke is built in, while the braking chopper and EMC filter are optional. The -21 suffix marks an IP20 version with NEMA 1 protection, supplied with a conduit box. Version letter A denotes a wall-mount unit.
Technical reference
| Product name | DELTA VFD1100CP43A-21 CP2000 series AC Motor Drive |
|---|---|
| Brand | DELTA |
| Model | VFD1100CP43A-21 |
| Category | Motors & Gearboxes |
| Weight | 64.8 ± 1.5 kg; cooling: fan cooling; efficiency 98.2% |
| Frame size | E (E2); Dimensions (W x H x D): 370 x 715.8 x 300 mm |
| Light duty | rated output capacity 175 kVA, rated output current 220 A, applicable motor output 110 kW / 150 HP |
| Normal duty | rated output capacity 143 kVA, rated output current 180 A, applicable motor output 90 kW / 125 HP |
| Input current | 220 A (light duty), 167 A (normal duty) |
| Braking chopper | Frame D above, optional; DC choke: Frame D above, built-in, 3% |
| Max. output frequency | 599.00 Hz; carrier frequency 2 ~ 10 kHz (default 6) |
| Rated voltage / frequency | 3-phase, 380 ~ 480 VAC (-15% ~ +10%), 50/60 Hz; operating voltage range 323 ~ 528 VAC |
