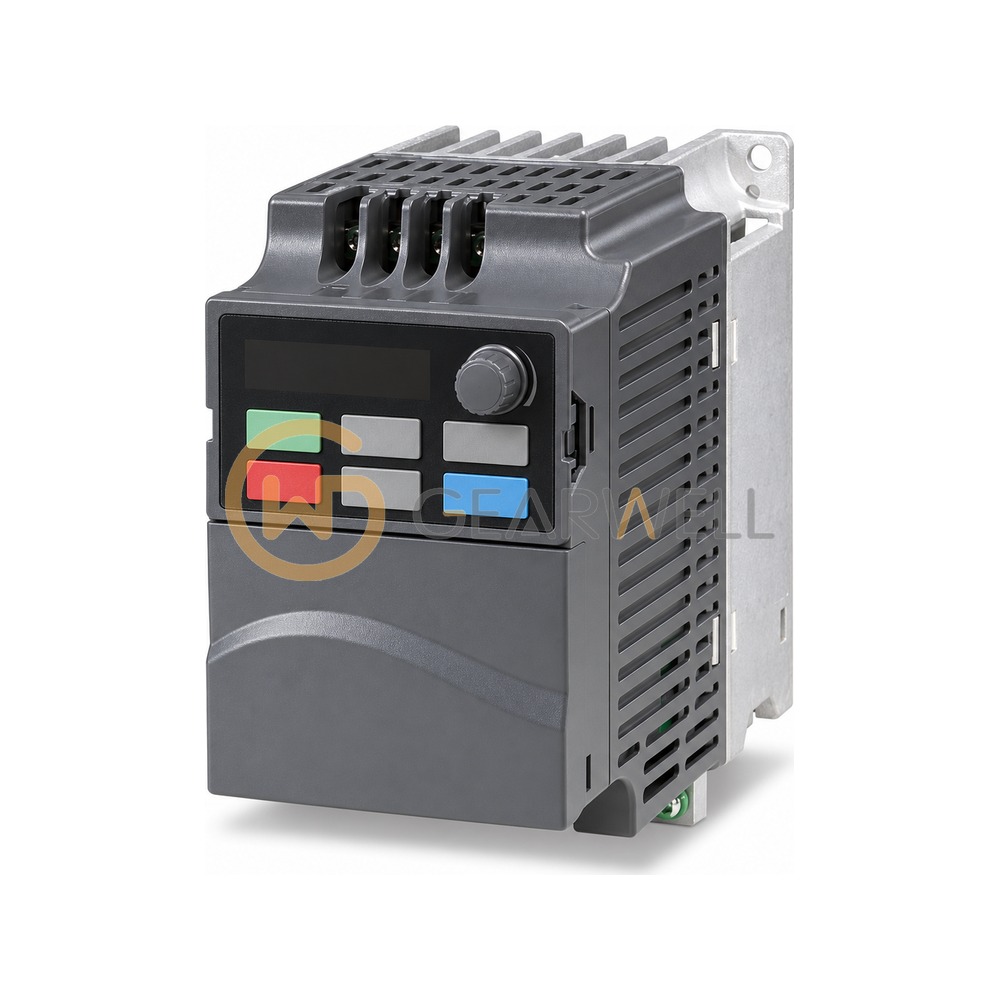

DELTA VFD075E23A VFD-E series AC Motor Drive
- Brand
- DELTA
- Model
- VFD075E23A
- GEARWELL SKU
- GWP-000012564
- Category
- Motors & Gearboxes
Key specifications
- Weight
- 3.5 kg
- Frame C
- W x H x D = 130.0 x 260.0 x 169.2 mm
- Version
- A: Standard drive
- Voltage class
- 230 V; max. applicable motor output 7.5 kW / 10.0 hp
- Output frequency
- 0.1 ~ 599 Hz; carrier frequency 1 - 15 kHz; cooling: fan cooling
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The Delta VFD075E23A is a VFD-E series sensorless vector compact AC motor drive in the standard version for a 3-phase 200-240 V, 50/60 Hz supply. It suits a 7.5 kW (10 HP) motor, with a rated output current of 33 A, a rated output capacity of 12.5 kVA and a rated input current of 34 A. Overload capacity is 150% of rated current for 1 minute and the output frequency range is 0.1 to 599 Hz. The drive has a built-in brake chopper for an optional brake resistor, a built-in PLC and an RS-485 (Modbus) port; it has no built-in EMC filter. It is a frame C unit in an IP20 enclosure weighing 3.5 kg.
Technical reference
| Product name | DELTA VFD075E23A VFD-E series AC Motor Drive |
|---|---|
| Brand | DELTA |
| Model | VFD075E23A |
| Category | Motors & Gearboxes |
| Weight | 3.5 kg |
| Frame C | W x H x D = 130.0 x 260.0 x 169.2 mm |
| Version | A: Standard drive |
| Voltage class | 230 V; max. applicable motor output 7.5 kW / 10.0 hp |
| Output frequency | 0.1 ~ 599 Hz; carrier frequency 1 - 15 kHz; cooling: fan cooling |
| Rated input current | 34 A (3-phase) |
| Rated output capacity | 12.5 kVA; rated output current: 33 A |
| Rated voltage/frequency | 3-phase, 200 - 240 V, 50 / 60 Hz; voltage tolerance ±10% (180 - 264 V) |
