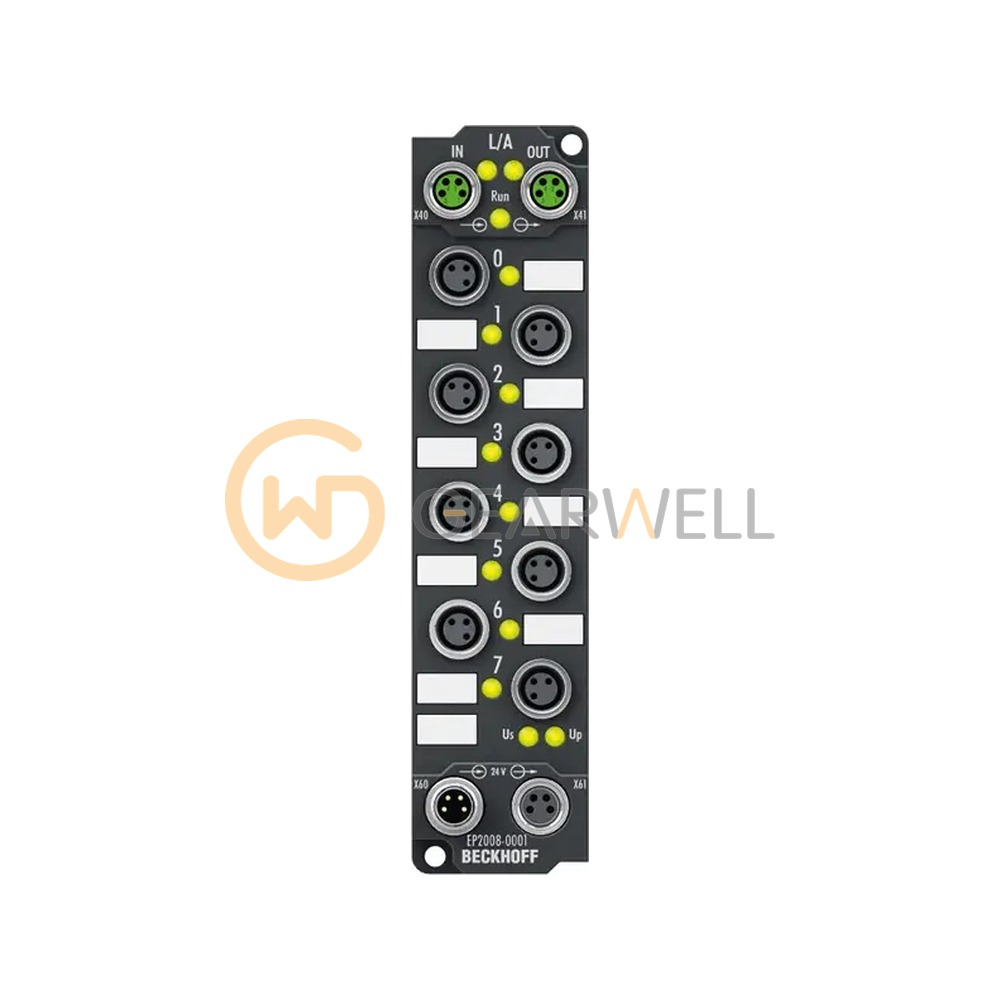

BECKHOFF EP2008-0001 EtherCAT Box 8-Channel Digital Output
- Brand
- BECKHOFF
- Model
- EP2008-0001
- GEARWELL SKU
- GWP-000008164
- Category
- PLCs & I/O
Key specifications
- Protocol
- EtherCAT
- Load type
- resistive, inductive, lamp load
- Bus interface
- 2 x M8 socket, 4-pin, A-coded, shielded
- Switching times
- typ. T ON : 50 µs, typ. T OFF : 100 µs
- Number of outputs
- 8
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
Beckhoff EP2008-0001 is an IP65/66/67 EtherCAT Box with 8 digital outputs on M8 connectors, switching 24 V DC loads at up to 0.5 A per channel (short-circuit proof). EtherCAT and power are connected via M8. Check the full order number, including any suffix, on the module when requesting a quote.
Technical reference
| Product name | BECKHOFF EP2008-0001 EtherCAT Box 8-Channel Digital Output |
|---|---|
| Brand | BECKHOFF |
| Model | EP2008-0001 |
| Category | PLCs & I/O |
| Protocol | EtherCAT |
| Load type | resistive, inductive, lamp load |
| Bus interface | 2 x M8 socket, 4-pin, A-coded, shielded |
| Switching times | typ. T ON : 50 µs, typ. T OFF : 100 µs |
| Number of outputs | 8 |
| Max. output current | 0.5 A (short-circuit proof) per channel |
| Output connections | M8 x 1, 3-pin, A-coded |
| Nominal output voltage | 24 V DC (-15%/+20%) |
