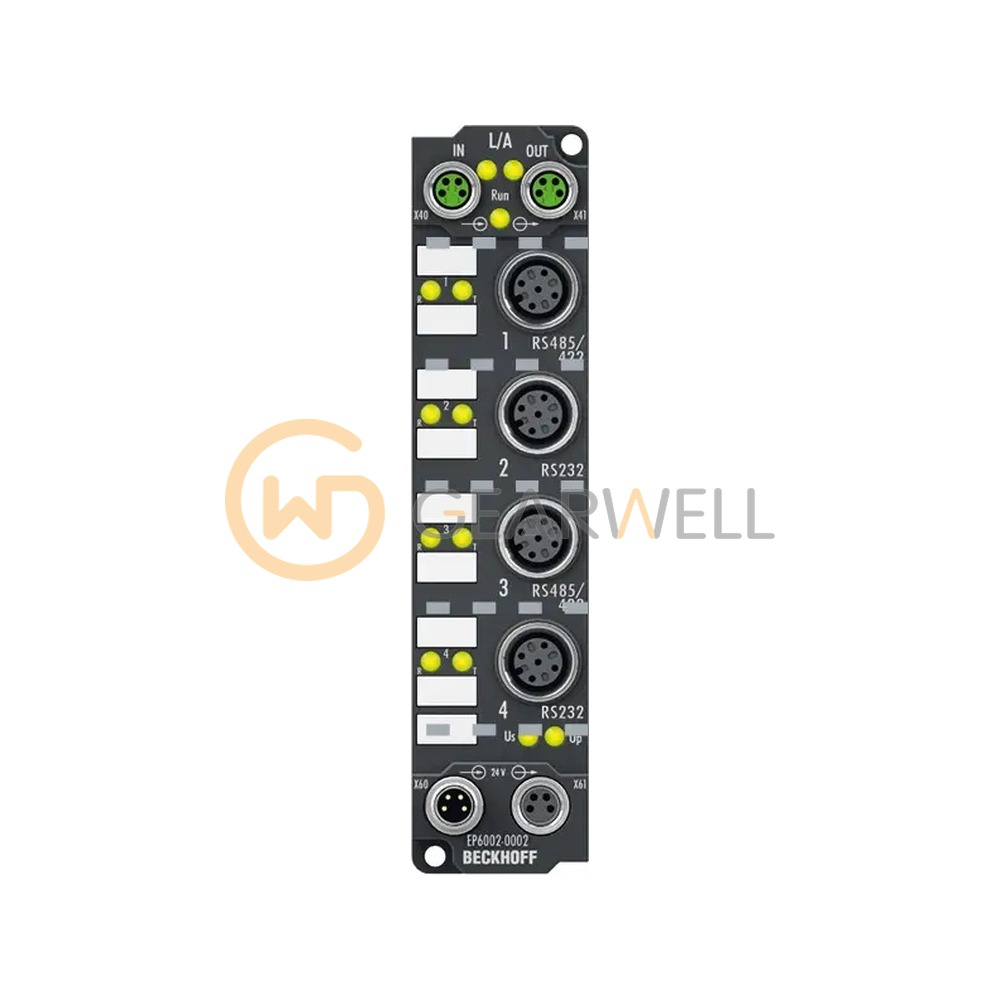

BECKHOFF EP6002-0002 EtherCAT Box 2-Channel Serial Interface
- Brand
- BECKHOFF
- Model
- EP6002-0002
- GEARWELL SKU
- GWP-000007148
- Category
- PLCs & I/O
Key specifications
- Protocol
- EtherCAT
- Interfaces
- individually selectable from RS232, RS485, RS422
- Cable length
- RS232: max. 15 m; RS422/RS485: approx. 1000 m
- Bus interface
- 2 x M8 socket, 4-pin, A-coded, shielded
- Communication
- TxD and RxD, full duplex
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
Beckhoff EP6002-0002 is an IP65/66/67 EtherCAT Box with 2 serial interfaces on M12 connectors, each selectable as RS232, RS422 or RS485 at 300 to 115,200 baud. Each channel provides an isolated 5 V DC/20 mA sensor supply. Check the full order number, including any suffix, on the module when requesting a quote.
Technical reference
| Product name | BECKHOFF EP6002-0002 EtherCAT Box 2-Channel Serial Interface |
|---|---|
| Brand | BECKHOFF |
| Model | EP6002-0002 |
| Category | PLCs & I/O |
| Protocol | EtherCAT |
| Interfaces | individually selectable from RS232, RS485, RS422 |
| Cable length | RS232: max. 15 m; RS422/RS485: approx. 1000 m |
| Bus interface | 2 x M8 socket, 4-pin, A-coded, shielded |
| Communication | TxD and RxD, full duplex |
| Bit distortion | < 3% |
| Transmission rate | 300…115,200 baud; 9600 baud (8 bit, no parity, 1 stop bit) is preset |
| Data transfer channels | 2 |
