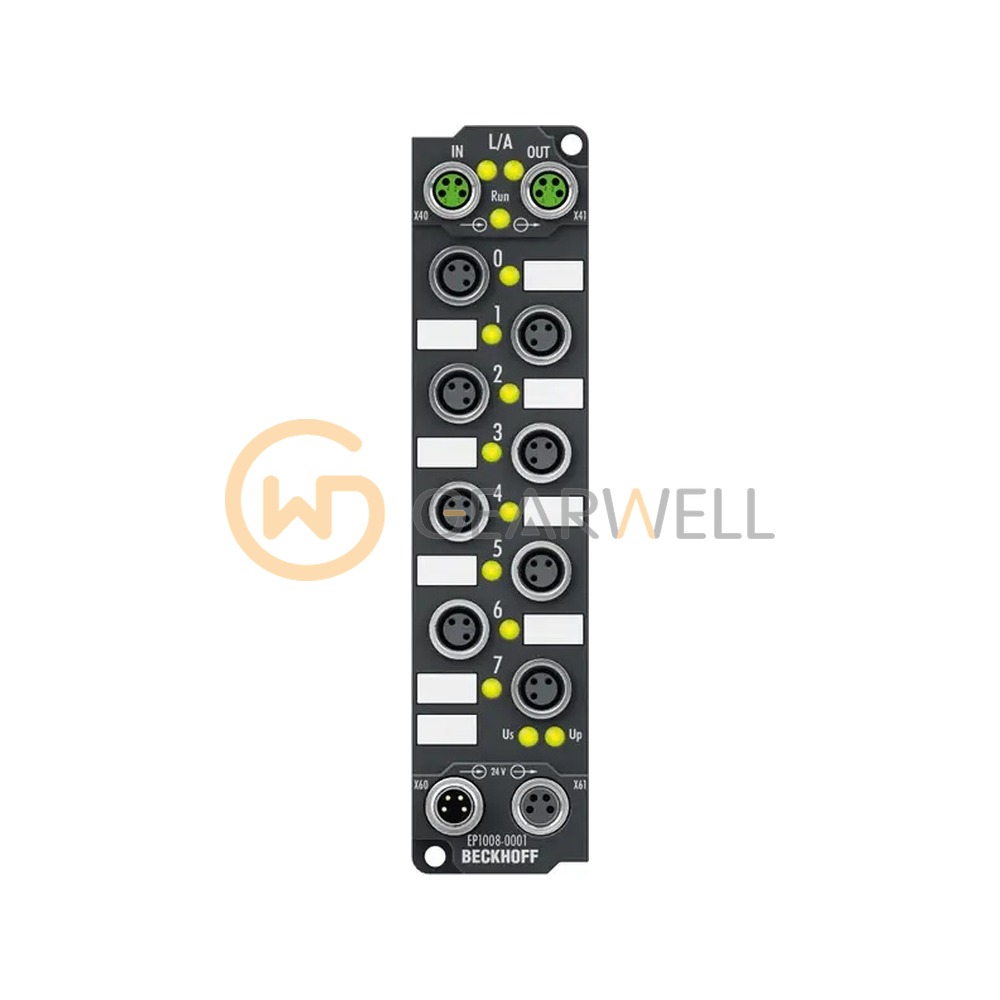

BECKHOFF EP1008-0001 EtherCAT Box 8-Channel Digital Input
- Brand
- BECKHOFF
- Model
- EP1008-0001
- GEARWELL SKU
- GWP-000008163
- Category
- PLCs & I/O
Key specifications
- Protocol
- EtherCAT
- Input filter
- typ. 3 ms
- Bus interface
- 2 x M8 socket, 4-pin, A-coded, shielded
- Input current
- typ. 3 mA (EN 61131-2, type 3)
- Sensor supply
- from control voltage, max. 0.5 A, short-circuit proof in total
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
Beckhoff EP1008-0001 is an IP65/66/67 EtherCAT Box with 8 digital inputs for 24 V DC signals (3 ms filter) on M8 connectors, for mounting directly on the machine. EtherCAT and power are connected via M8, and the sensor supply is short-circuit proof up to 0.5 A in total. Check the full order number, including any suffix, on the module when requesting a quote.
Technical reference
| Product name | BECKHOFF EP1008-0001 EtherCAT Box 8-Channel Digital Input |
|---|---|
| Brand | BECKHOFF |
| Model | EP1008-0001 |
| Category | PLCs & I/O |
| Protocol | EtherCAT |
| Input filter | typ. 3 ms |
| Bus interface | 2 x M8 socket, 4-pin, A-coded, shielded |
| Input current | typ. 3 mA (EN 61131-2, type 3) |
| Sensor supply | from control voltage, max. 0.5 A, short-circuit proof in total |
| Number of inputs | 8 |
| Input connections | M8 x 1, 3-pin, A-coded |
| Nominal input voltage | 24 V DC (-15%/+20%) |
