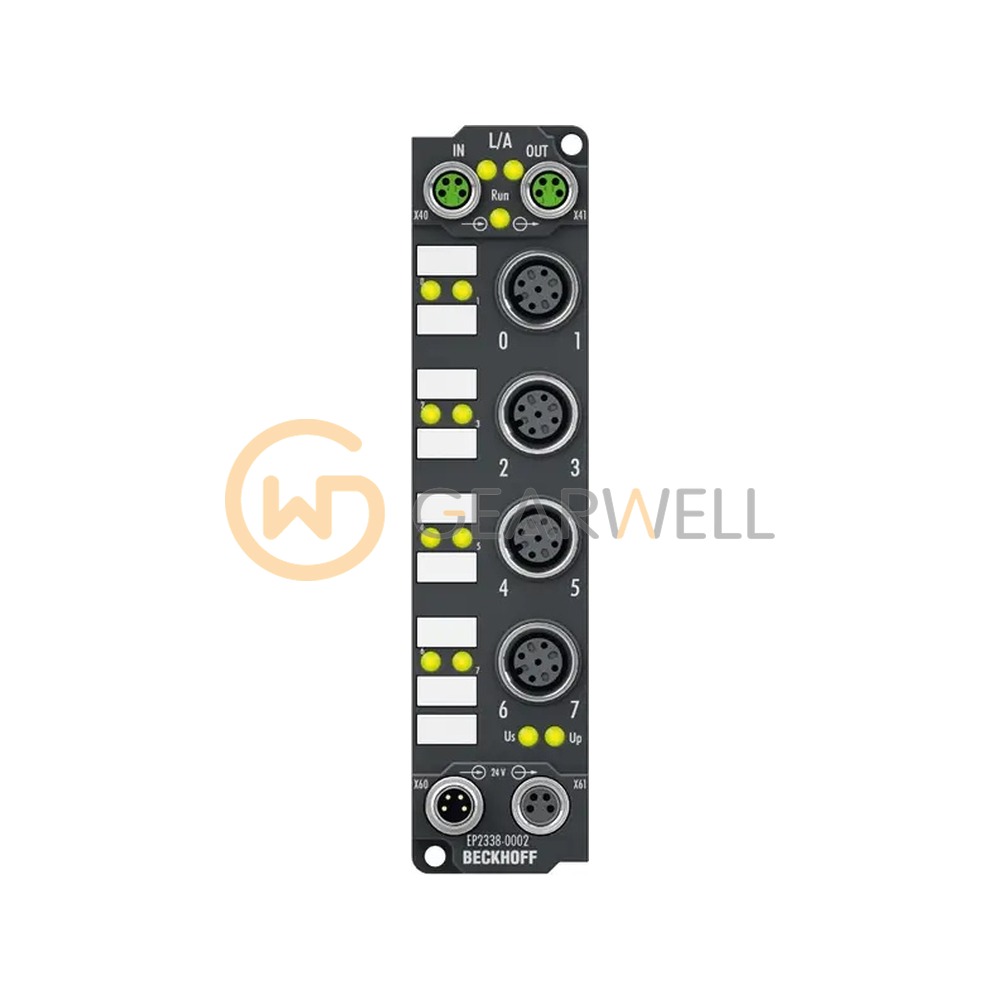

BECKHOFF EP2338-0002 EtherCAT Box 8-Channel Digital I/O
- Brand
- BECKHOFF
- Model
- EP2338-0002
- GEARWELL SKU
- GWP-000007147
- Category
- PLCs & I/O
Key specifications
- Protocol
- EtherCAT
- Load type
- resistive, inductive, lamp load
- Input filter
- typ. 10 µs
- Bus interface
- 2 x M8 socket, 4-pin, A-coded, shielded
- Sensor supply
- from load supply voltage, max. 0.5 A, short-circuit proof in total
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
Beckhoff EP2338-0002 is an IP65/66/67 EtherCAT Box with 8 channels on M12 connectors that can each be used as a 24 V DC input (10 µs filter) or output (0.5 A, short-circuit proof). EtherCAT and power are connected via M8. Check the full order number, including any suffix, on the module when requesting a quote.
Technical reference
| Product name | BECKHOFF EP2338-0002 EtherCAT Box 8-Channel Digital I/O |
|---|---|
| Brand | BECKHOFF |
| Model | EP2338-0002 |
| Category | PLCs & I/O |
| Protocol | EtherCAT |
| Load type | resistive, inductive, lamp load |
| Input filter | typ. 10 µs |
| Bus interface | 2 x M8 socket, 4-pin, A-coded, shielded |
| Sensor supply | from load supply voltage, max. 0.5 A, short-circuit proof in total |
| Number of channels | 8 digital inputs or outputs |
| Rated load voltage | 24 V DC (-15%/+20%) |
| Input/output connections | M12 x 1, 5-pin, a-coded |
